Garage Door
Garage Door is generally preferred in buildings with closed garages such as estates, villas, public institutions and shopping centers for ease of use and security.
Automatic garage doors / remote controlled garage doors or motorized garage doors are the doors; When entering and exiting your garage, it opens and closes using your remote control, Hgs system or license plate recognition system without getting out of your vehicle. Considering the weather conditions, this convenience, automatic garage doors add a great quality to daily life and security beyond comfort.
In addition to its superior security features, in the areas where the sectional garage door is applied, the 40 mm. Thanks to the polyurethane filled panels, it provides effective heat-sound insulation, a solution resistant to thieves and low maintenance cost.
Sectional Garage Doors have a safety photocell system against collisions and jams.
The motor system used in the sectional door is a product of Italian origin with a digital display. Galvanized steel spring set and rail set are used in the sectional door. In the movement system, there is a sound-insulated wheel assembly.
Sectional Garage Doors are preferred in places where they are used heavily. It has a manual opening feature in case of power cuts.
According to the customer’s request, a personnel passage door or glass can be placed on the Garage Door.
Sectional garage doors can be painted to the desired RAL code in order to adapt to the facade.
Garage Door Models

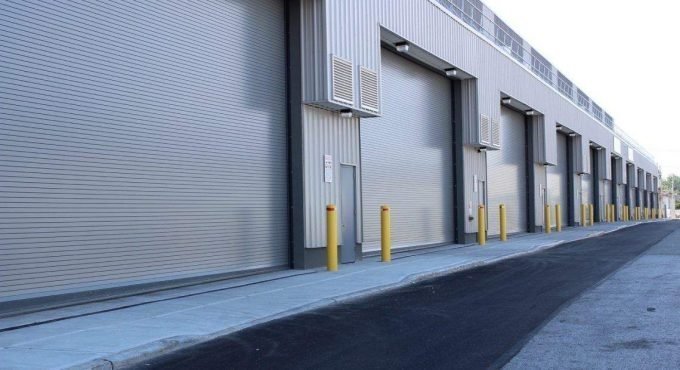

High Speed Aluminum Roll Door
ALD aluminum Roll door capable of working at 2,5-3 m/s speed. The standart opening speed of the door is 1 m/s.
High Speed Garage Door
The high speed garage door, which is prepared by placing aluminum extrusion or steel polyurethane material inside the double layer tarpaulin, is used as the garage door of the high-traffic site, the elevator door and the shipment ramp door of the factories.
Sectional Garage Door Technical Specifications
- 40 mm polyurethane filled sandwich panel
- Galvanized steel rail
- Sealing rubber gasket
- Standard color: RAL 9002 White
- Standard striped or decorative panel option
- Window and grille that can be applied on demand
- Operating voltage 24 volts
- Maximum working height 2400 mm
- Can be used on 7.5 m2 – 12 m2 doors
- Mechanical or digital key
- Safety photocell can be installed
- Auto shut-off feature
Why Sectional Garage Door ?
- 40 mm polyurethane filled sandwich panel
- Galvanized steel rail
- Sealing rubber gasket
- Standard color: RAL 9002 White
- Standard striped or decorative panel option
- Window and grille that can be applied on demand
- Operating voltage 24 volts
- Maximum working height 2400 mm
- Can be used on 7.5 m2 – 12 m2 doors
- Mechanical or digital key
- Safety photocell can be installed
- Auto shut-off feature
How to Choose a New Garage Door
With all the styles offered by ALD Automatic door, many homeowners like more than one door. To help you choose the best garage door for your home, we’ve developed an ALD door comprehensive buying guide, different styles, building materials, insulation, wind resistance, automatic garage door openers and more.
Residential Garage Doors
Whether you’re a new home owner looking to customize your home or need to replace your existing garage door, ALD Door makes it easy to find the right choice for your home. Your garage door can cover a large portion of your home’s facade, so choosing the right type of door can have a huge impact on your home. ALD Garage doors are available in various models. You can choose from a variety of colours, woodgrain finishes, materials and hardware to complement your home’s exterior.
Do I Need an Insulated Door?
Your garage door is most likely the largest opening in your home and can affect your home’s energy efficiency as a result. For homes in regions with colder winters or warmer summers, choosing an insulated door can save you money and increase the comfort of your home. With our sealing technology, insulated doors run quieter and are more durable. We also offer a choice of insulated glass windows that can help maintain energy efficiency and allow natural light into your garage.
Garage Door Prices
Prices may vary depending on the size of the product, the desired product and its details. You can get detailed information about Garage Door Price from us.
Garage Door Panel Types and features
You can find garage door panels in many different models and colors to be used in our Garage Door products. Thanks to our sandwich panels, which are fully compatible with your garage and structure, your doors will have a modern look.
The 615 or 495 mm panels that make up the door are connected to each other with panel color electrostatic painted steel, aluminum or stainless steel hinges.
Panels with a thickness of 40 mm and a thermal coefficient of 0.78 W/m2K are composed of two steel, aluminum or stainless steel plates filled with polyurethane foam with a density of 40 kg/m3.
There are strong steel plates inside the panel that increase the wind resistance. The wind resistance of our panels is 80 km/h.
Thanks to EPDM gaskets, high insulation is provided on the sides, bottom and top, against rain and wind.
Panels with garage door systems in standard white color (inside-outside RAL 9002) can also be applied in different RAL colors in accordance with the building exterior.
The sheet metal plates on the front and rear surfaces of the garage door panels are firmly joined to each other in four layers. On the door panels, windows consisting of double-walled acrylic glass can be opened in desired rows for lighting purposes.

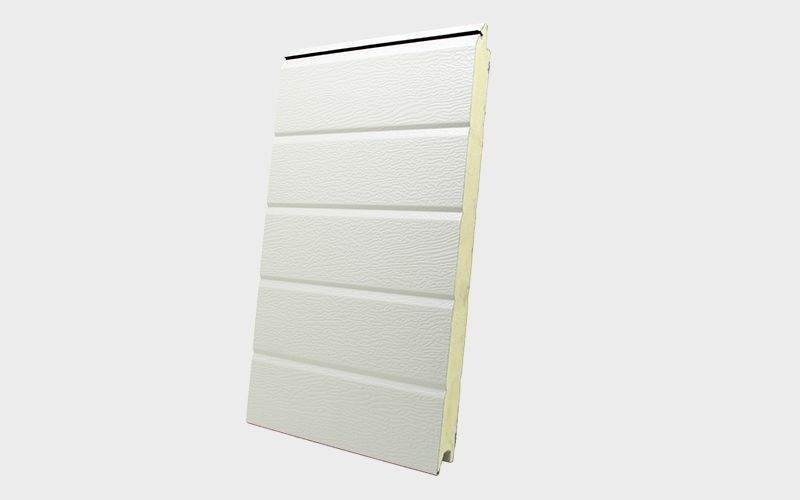

WHITE - RIBBED
- Exterior Color: White – Ral 9002
- Inner Color: White – Ral 9002
- Model: Ribbed – Lined
- Thickness: 40 mm
- Density: 48-50 Kg / m³
- Panel Height: 500 mm and 610 mm
- EPDM sealing gasket between panels
- Finger safe protection
- Top and bottom painted steel plate sheet
- Sheets are interlocked in four layers
- CFC Free polyurethane
- Wooden pattern embossing

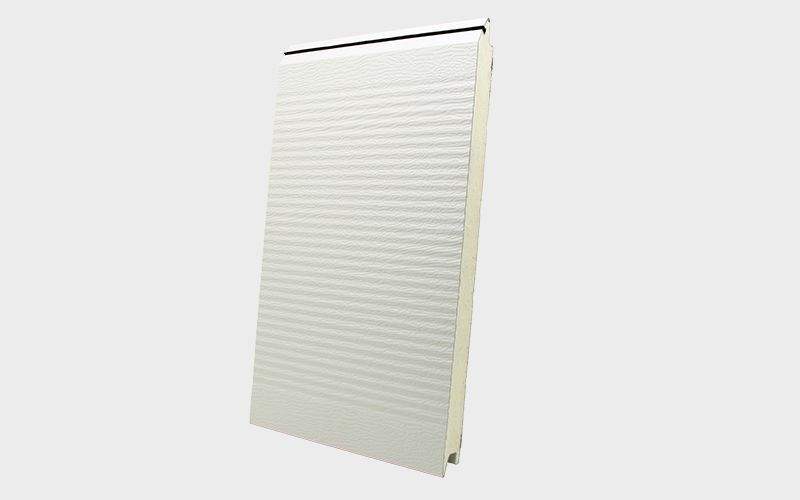

WHITE - MICRORIB
- Exterior Color: White – Ral 9002
- Inner Color: White – Ral 9002
- Model: MicroRib
- Thickness: 40 mm
- Density: 48-50 Kg / m³
- Panel Height: 500 mm and 610 mm
- EPDM sealing gasket between panels
- Finger safe protection
- Top and bottom painted steel plate sheet
- Sheets are interlocked in four layers
- CFC Free polyurethane
- Wooden pattern embossing
RED - MICRORIB
- Exterior Color: Red – Ral 3000
- Inner Color: White – Ral 9002
- Model: MicroRib
- Thickness: 40 mm
- Density: 48-50 Kg / m³
- Panel Height: 500 mm and 610 mm
- EPDM sealing gasket between panels
- Finger safe protection
- Top and bottom painted steel plate sheet
- Sheets are interlocked in four layers
- CFC Free polyurethane
- Wooden pattern embossing
ANTHRACITE GREY - FLAT WRINKLE
- Exterior Color: Ant. Grey – Wrinkle Ral 7016
- Inner Color: White – Ral 9002
- Model: Flat – Middle Rib
- Thickness: 40 mm
- Density: 48-50 Kg / m³
- Panel Height: 500 mm and 610 mm
- EPDM sealing gasket between panels
- Finger safe protection
- Top and bottom painted steel plate sheet
- Sheets are interlocked in four layers
- CFC Free polyurethane

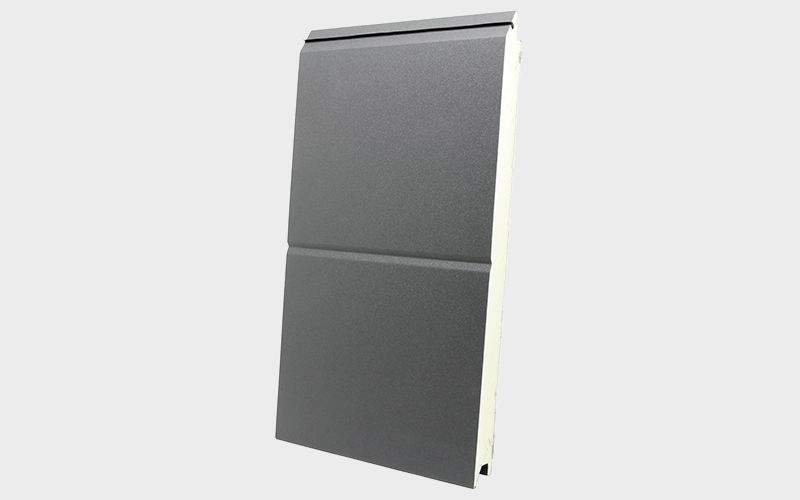

ANTHRACITE GREY - MIDDLE RIB WRİNKLE
- Exterior Color: Ant. Grey – Wrinkle Ral 7016
- Inner Color: White – Ral 9002
- Model: Flat – Middle Rib
- Thickness: 40 mm
- Density: 48-50 Kg / m³
- Panel Height: 500 mm and 610 mm
- EPDM sealing gasket between panels
- Finger safe protection
- Top and bottom painted steel plate sheet
- Sheets are interlocked in four layers
- CFC Free polyurethane

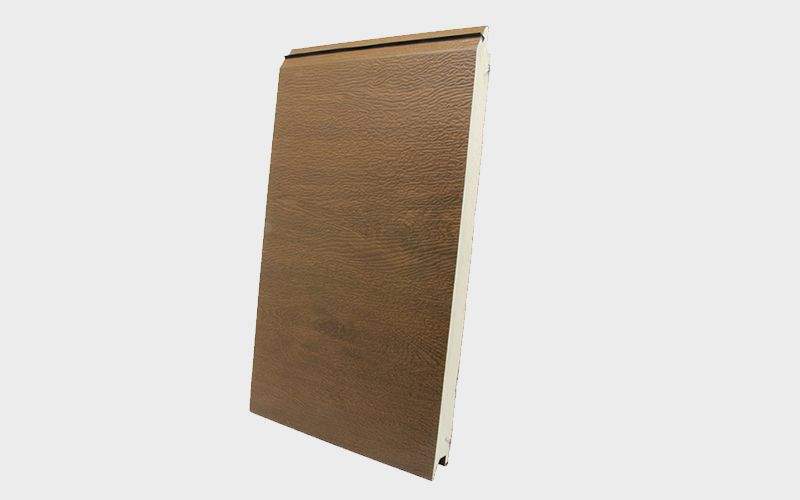

WOODEN DESIGN - RIBBED
- Exterior Color: Wooden Design
- Inner Color: White – Ral 9002
- Model: Ribbed
- Thickness: 40 mm
- Density: 48-50 Kg / m³
- Panel Height: 500 mm and 610 mm
- EPDM sealing gasket between panels
- Finger safe protection
- Top and bottom painted steel plate sheet
- Sheets are interlocked in four layers
- CFC Free polyurethane
- Wooden pattern embossing

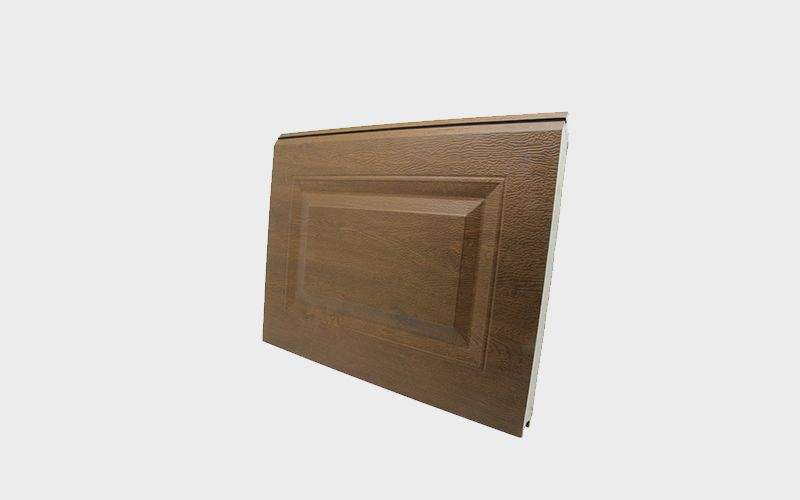

WOODEN DESIGN - CASSETTE
- Exterior Color: Wooden Design
- Inner Color: White – Ral 9002
- Model: Cassette
- Thickness: 40 mm
- Density: 48-50 Kg / m³
- Panel Height: 500 mm and 610 mm
- EPDM sealing gasket between panels
- Finger safe protection
- Top and bottom painted steel plate sheet
- Sheets are interlocked in four layers
- CFC Free polyurethane
- Wooden pattern embossing

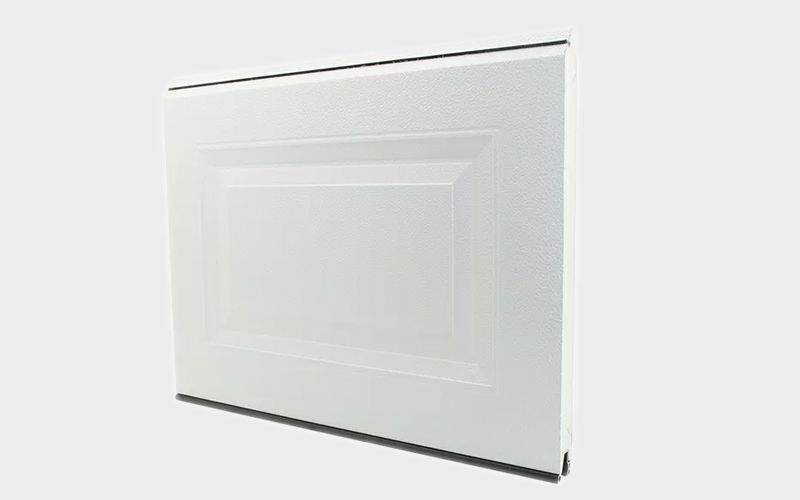

WHITE - CASSETTE
- Exterior Color: White – Ral 9002
- Inner Color: White – Ral 9002
- Model: Cassette
- Thickness: 40 mm
- Density: 48-50 Kg / m³
- Panel Height: 500 mm and 610 mm
- EPDM sealing gasket between panels
- Finger safe protection
- Top and bottom painted steel plate sheet
- Sheets are interlocked in four layers
- CFC Free polyurethane
- Wooden pattern embossing

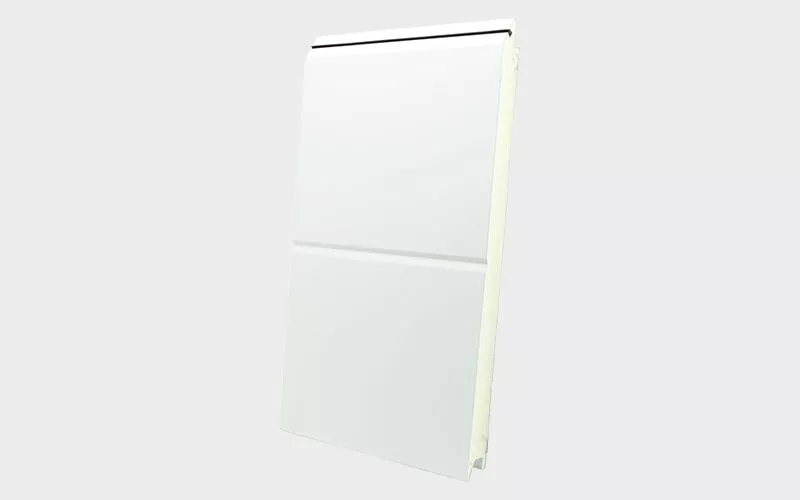

WHITE - MIDDLE RIB WRİNKLE
- Exterior Color: White – Wrinkle Ral 9016
- Inner Color: White – Ral 9002
- Model: Flat – Middle Rib
- Thickness: 40 mm
- Density: 48-50 Kg / m³
- Panel Height: 500 mm and 610 mm
- EPDM sealing gasket between panels
- Finger safe protection
- Top and bottom painted steel plate sheet
- Sheets are interlocked in four layers
- CFC Free polyurethane

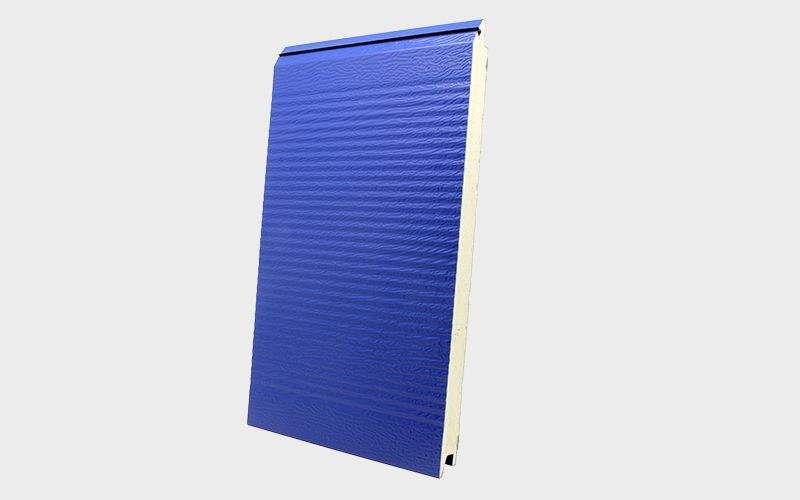

BLUE - MICRORIB
- Exterior Color: Blue – Ral 5010
- Inner Color: White – Ral 9002
- Model: MicroRib
- Thickness: 40 mm
- Density: 48-50 Kg / m³
- Panel Height: 500 mm and 610 mm
- EPDM sealing gasket between panels
- Finger safe protection
- Top and bottom painted steel plate sheet
- Sheets are interlocked in four layers
- CFC Free polyurethane
- Wooden pattern embossing
