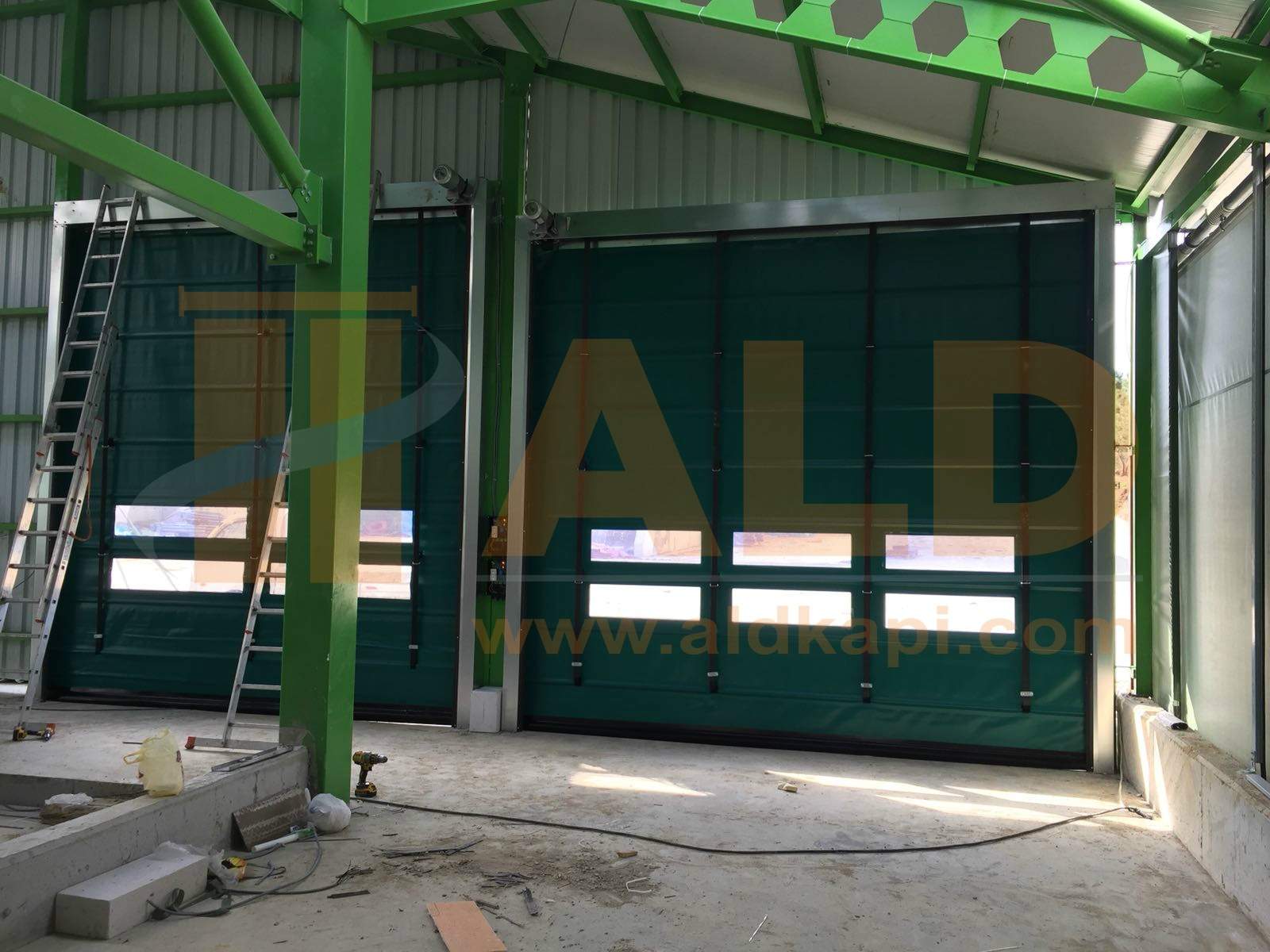

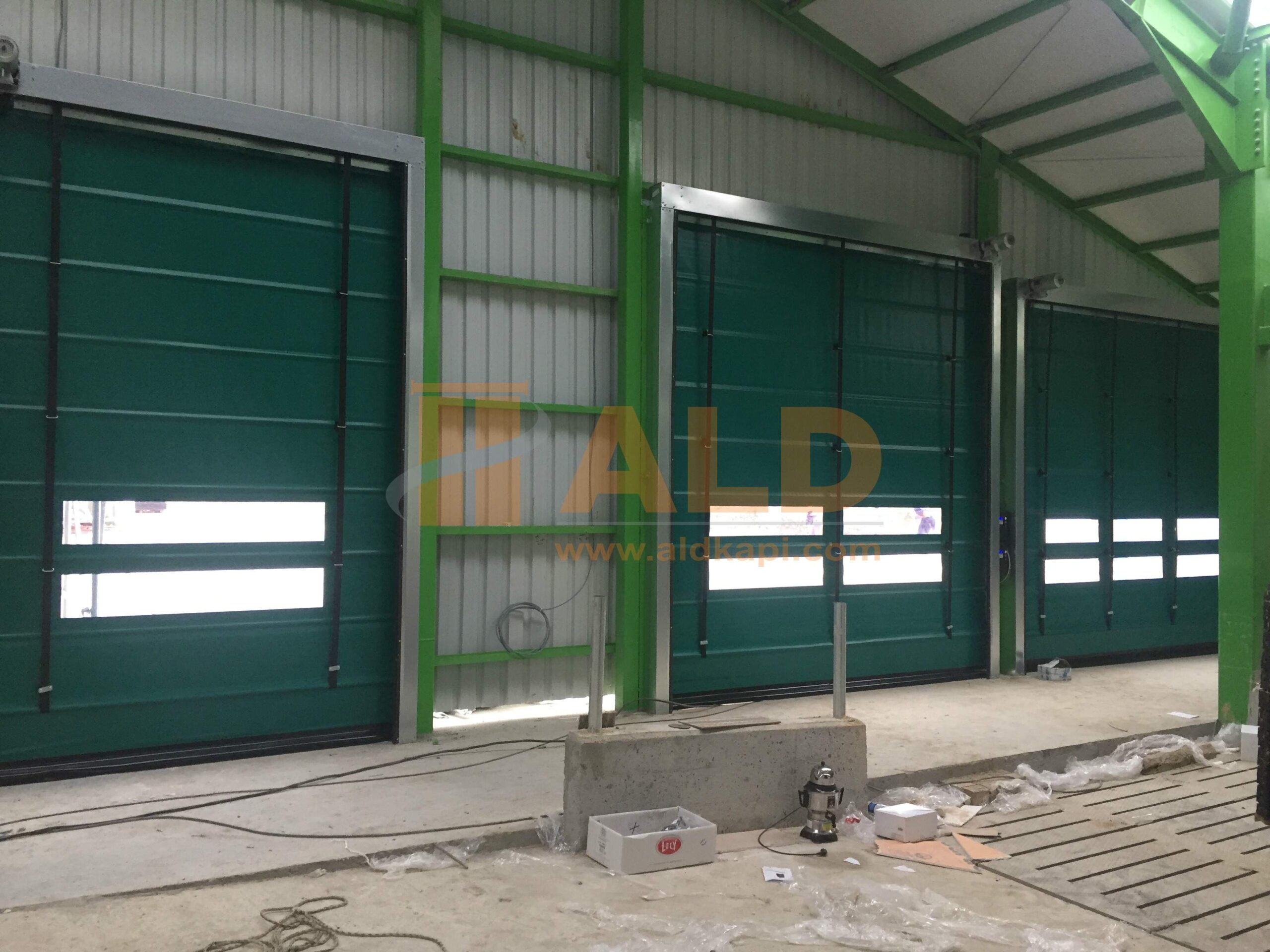

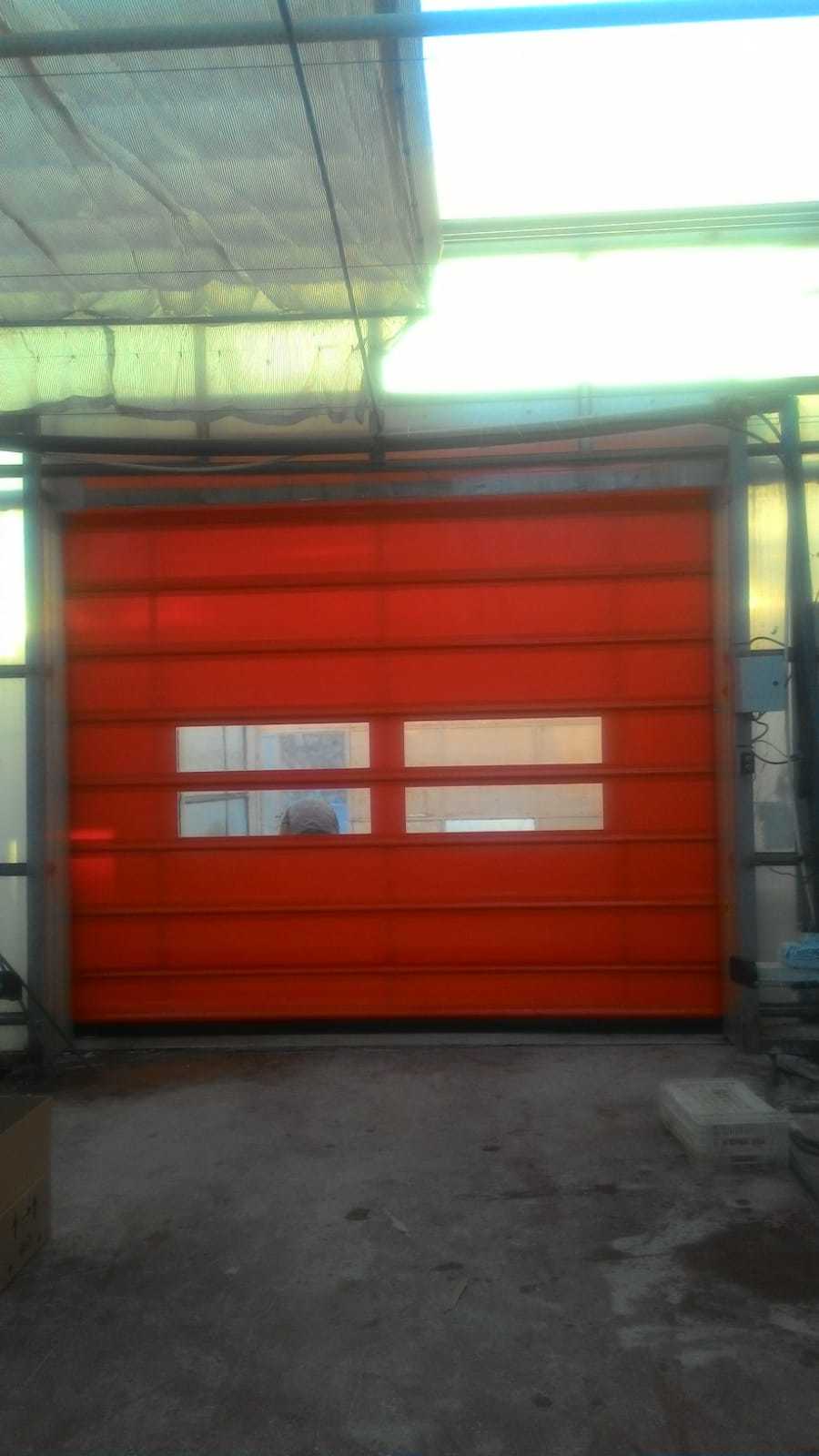

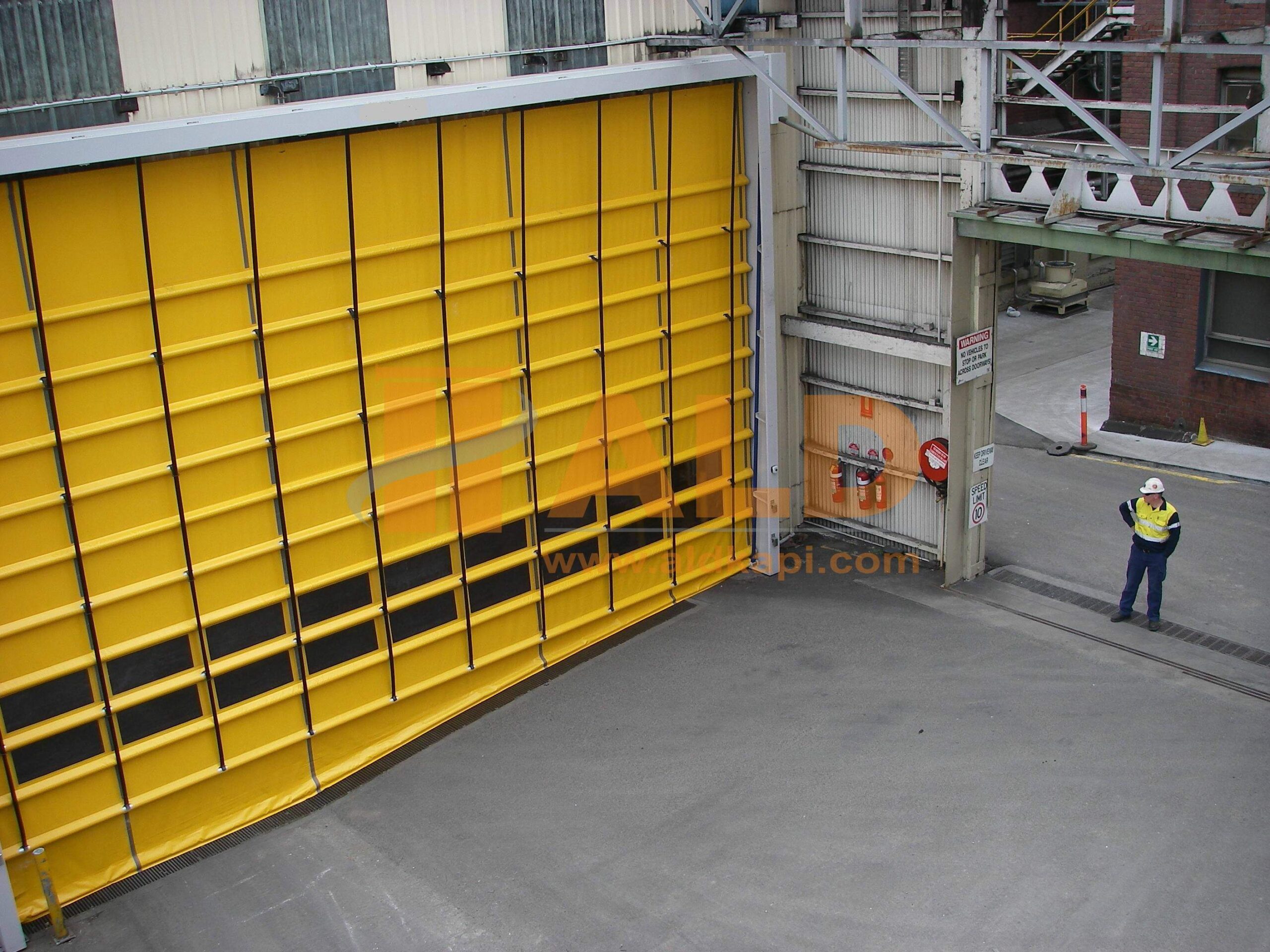

FOLD UP HIGH SPEED DOOR

SPEED PVC DOORS – FOLD UP DOOR,
Your expectation from industrial doors in your facility is to operate in heavy traffic, in difficult and variable weather conditions, to open and close hundreds of times a day, to reduce waste of time, to minimize air currents, to make your existing area more hygienic, to reduce visual and noise pollution to a minimum.

It is designed to keep the wind resistance at the maximum level thanks to its wind profiles.

The body structure of the product consists of galvanized steel. Optional stainless steel and painted versions are available.

It cannot be compared with other bulky door systems thanks to its fast, agile operation and very strong body structure.

Automation – It is compatible with any automation system according to the traffic flow of the workplace.

The most distinctive features of the door system require the least space loss in the installation areas of the door, and maximum use of your door passage area arises.

Gearmotor and brake system; It has been specially developed for very intensive use.

The wind profile system is designed to keep the wind resistance at the maximum level with monolithic or modular PVC applications on the doors.

With the use of the optional metal mass detector, the transportation process can be brought to the optimum level since the door opening and closing movements will be performed automatically in areas with heavy forklift traffic.

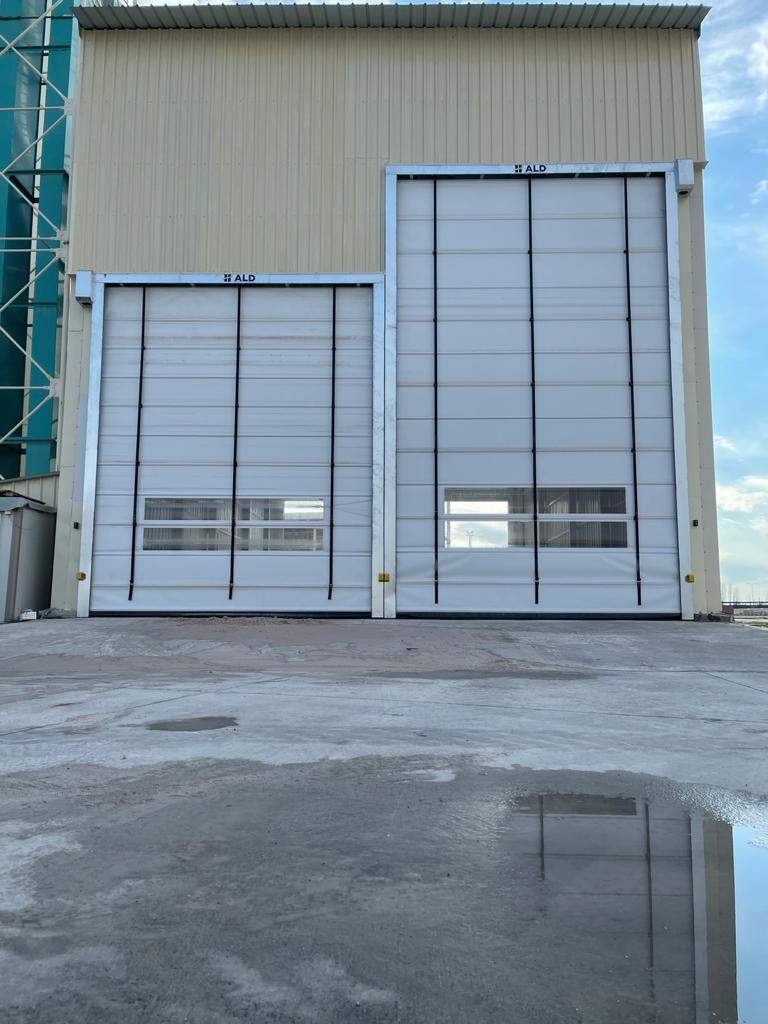

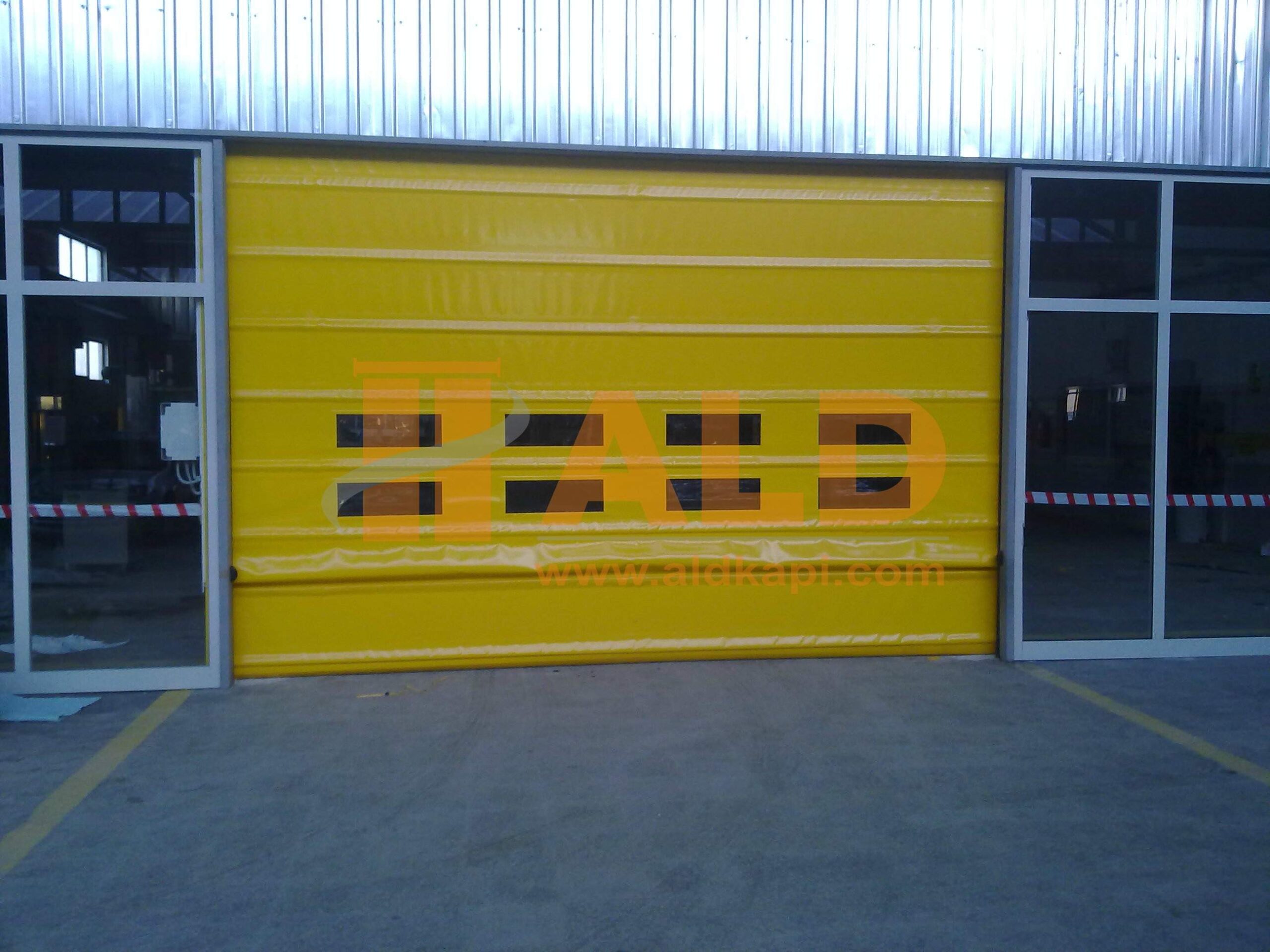

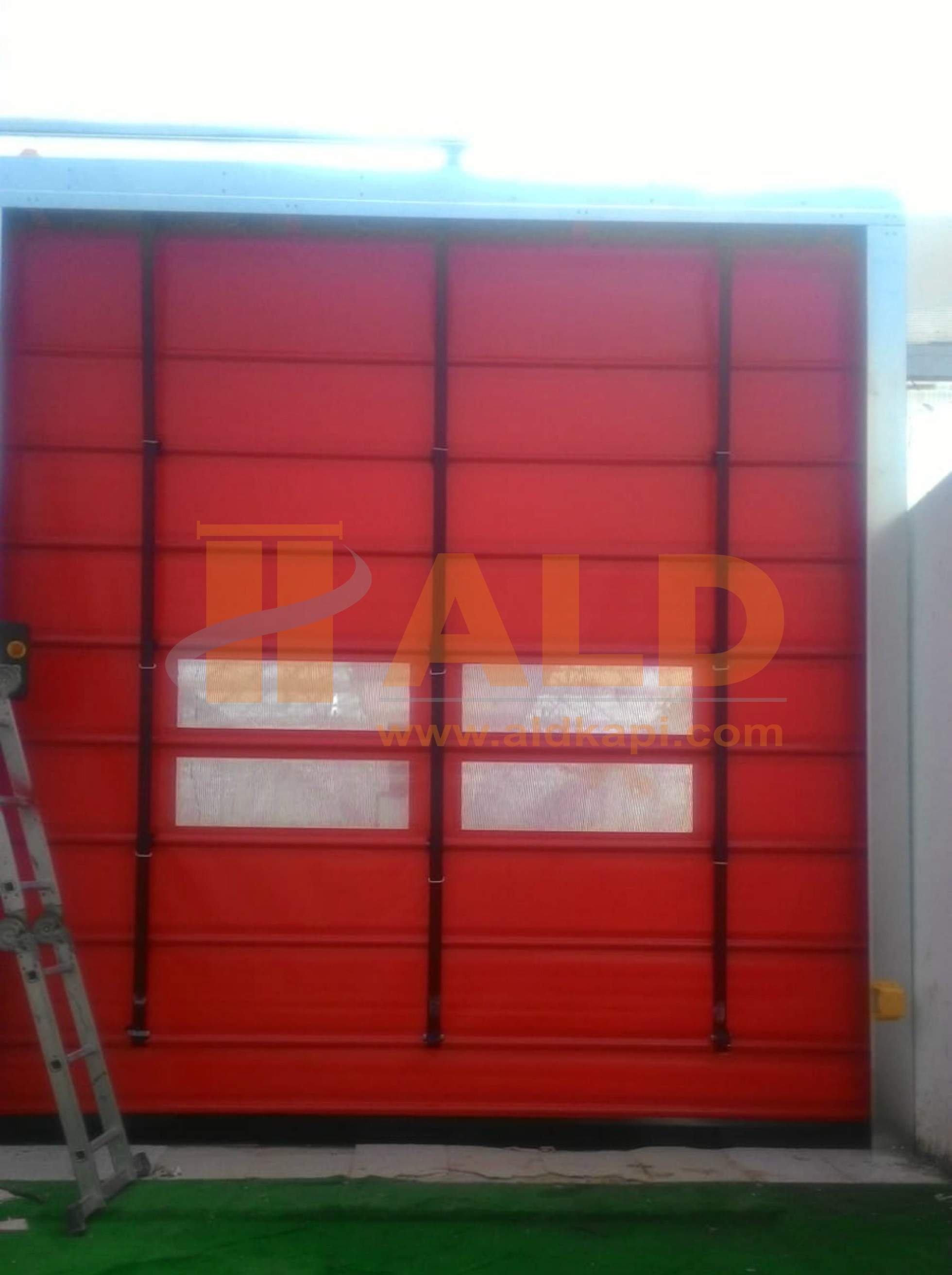

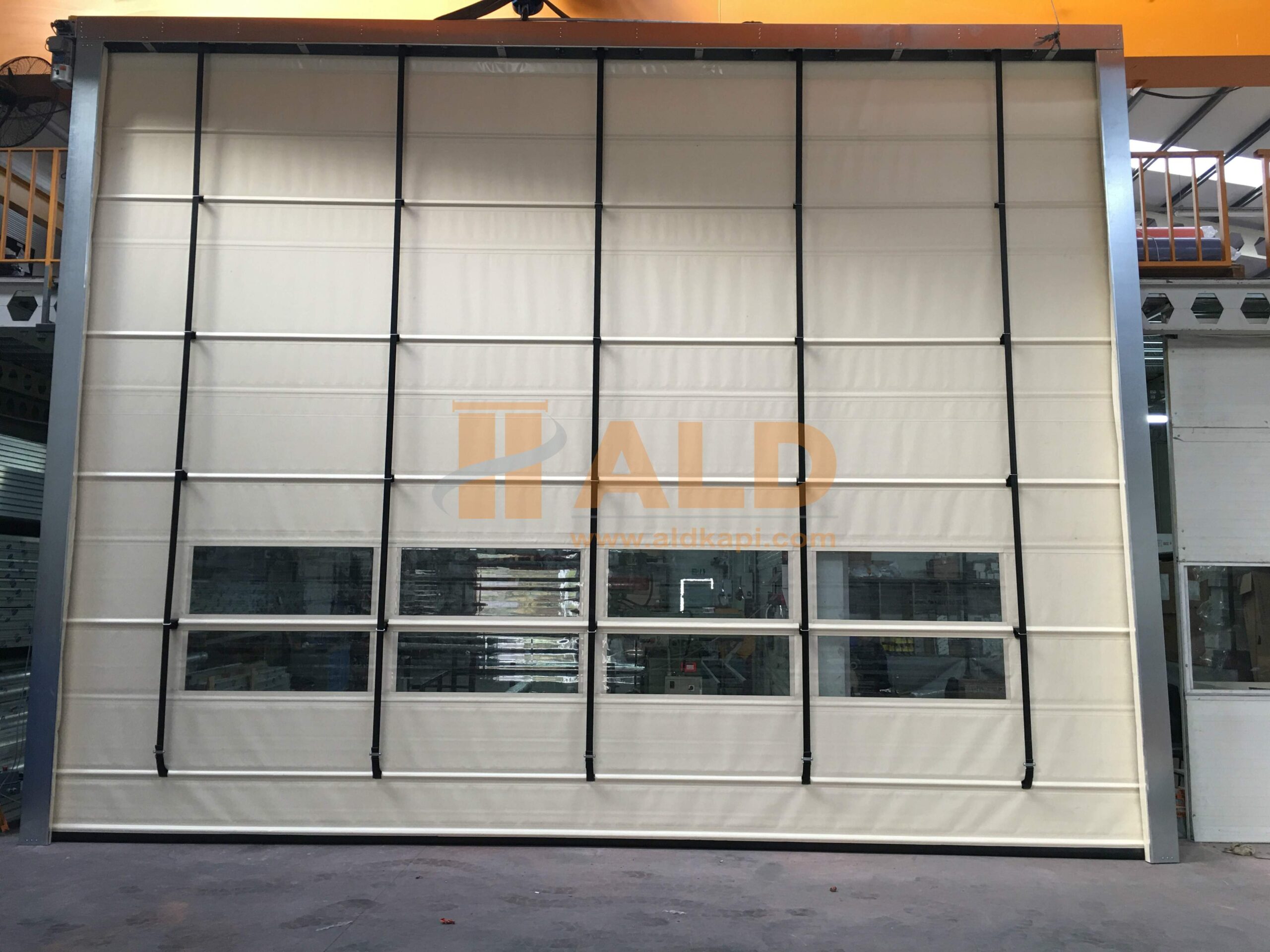

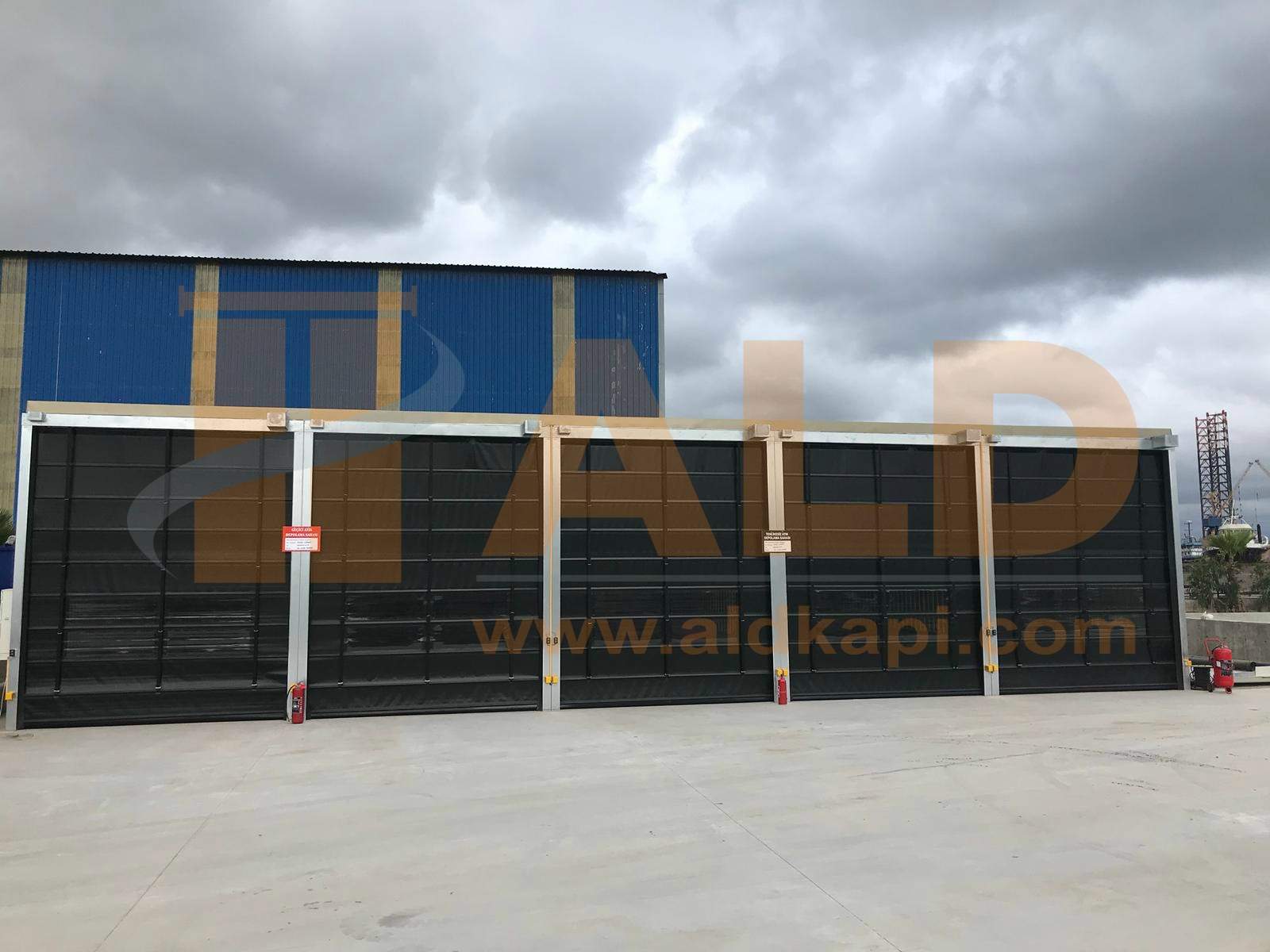

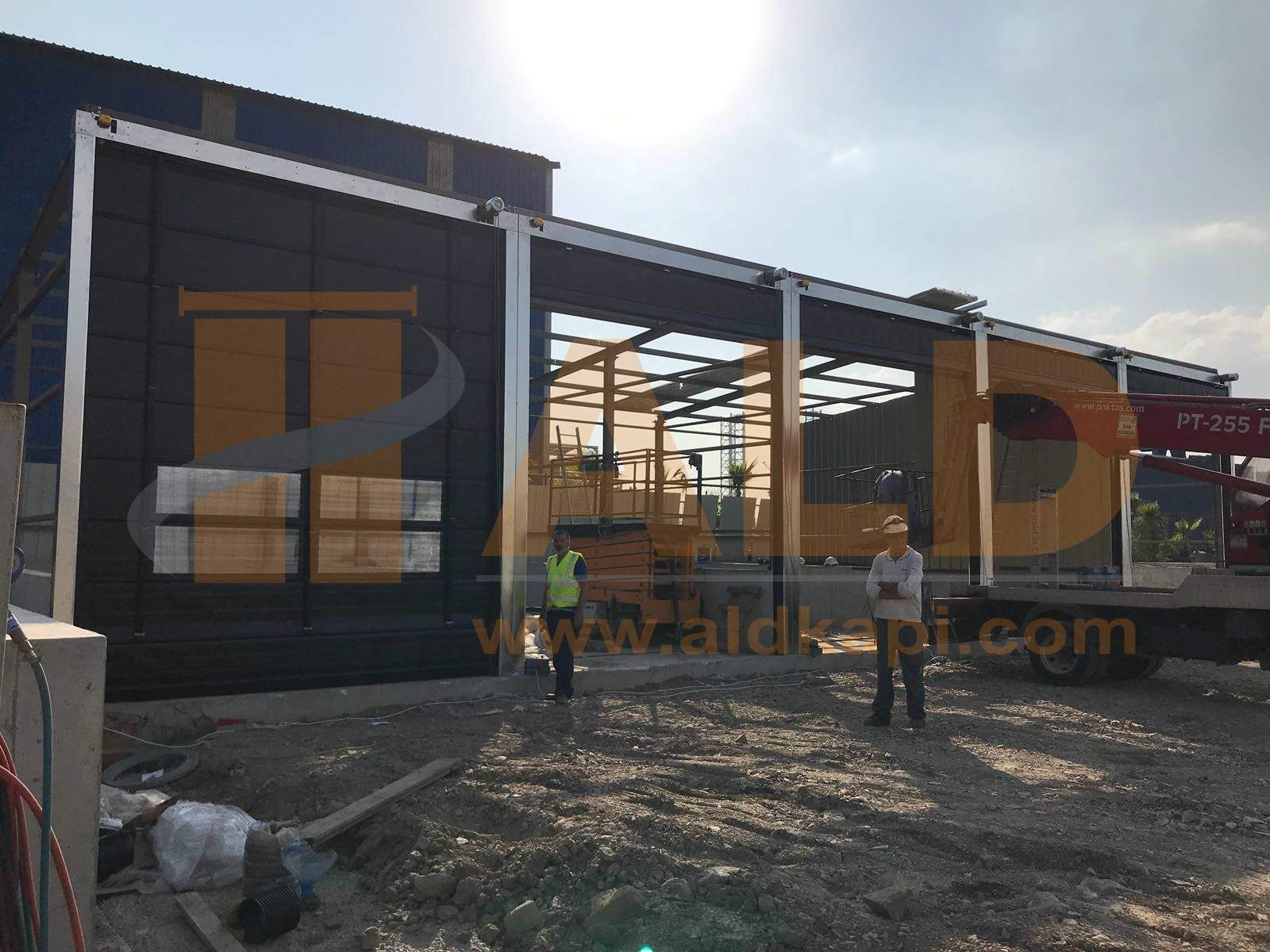

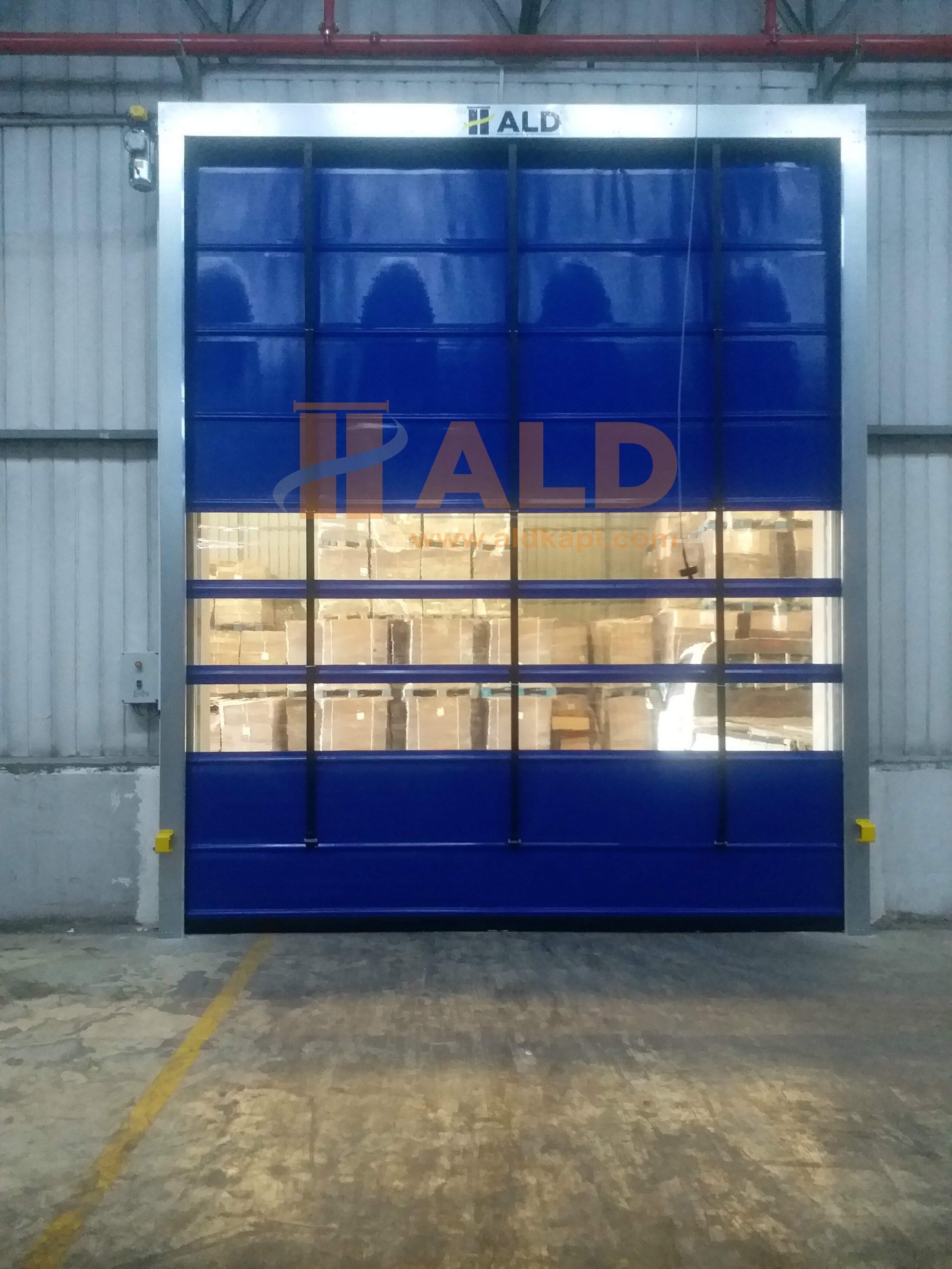

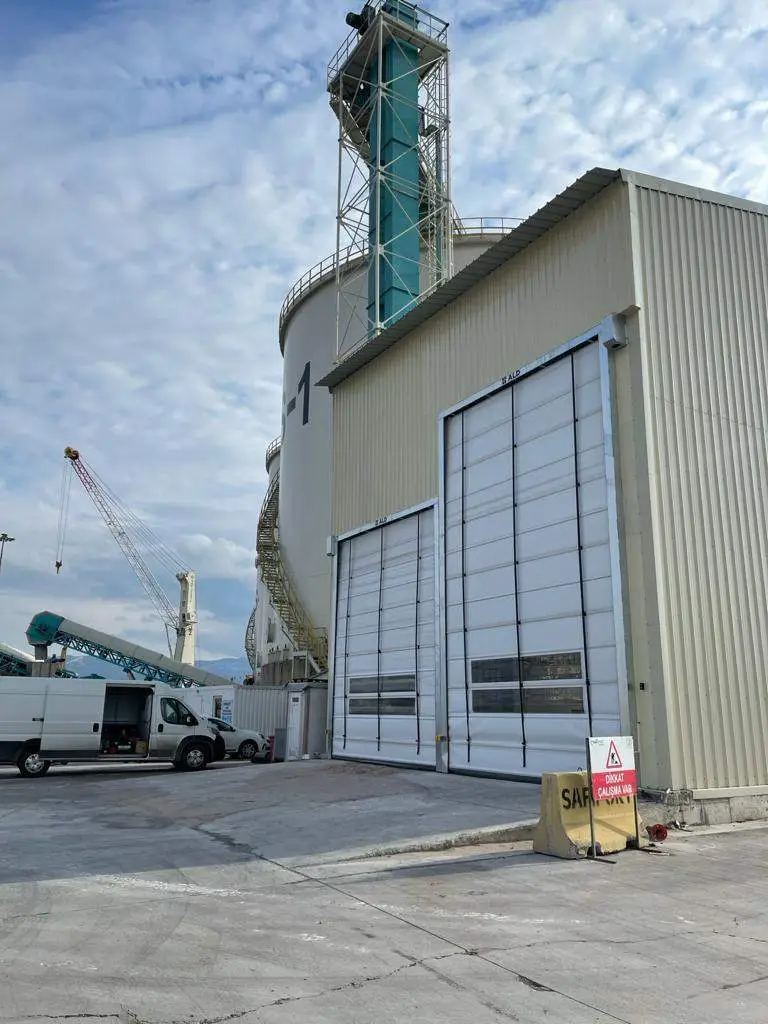

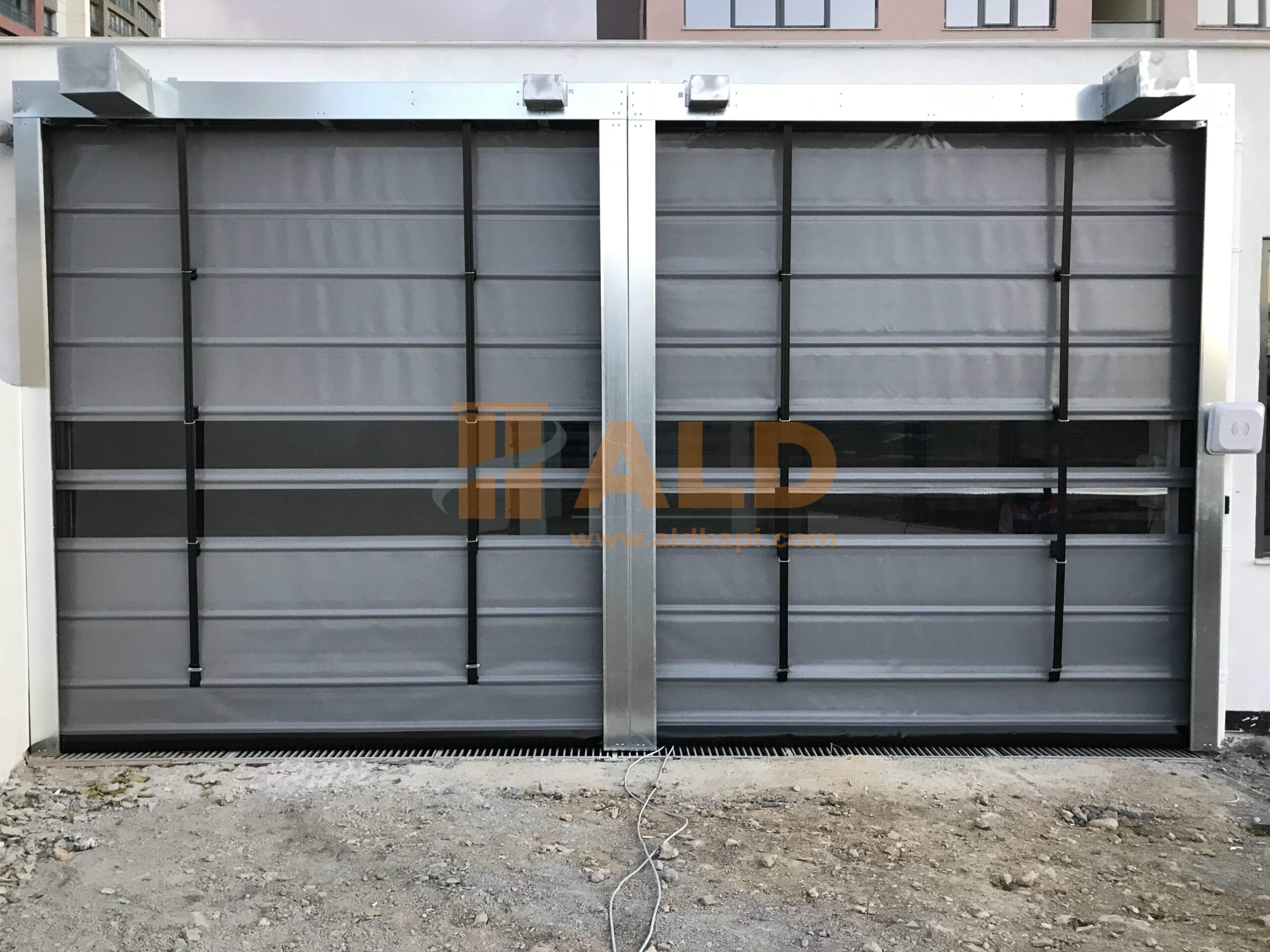

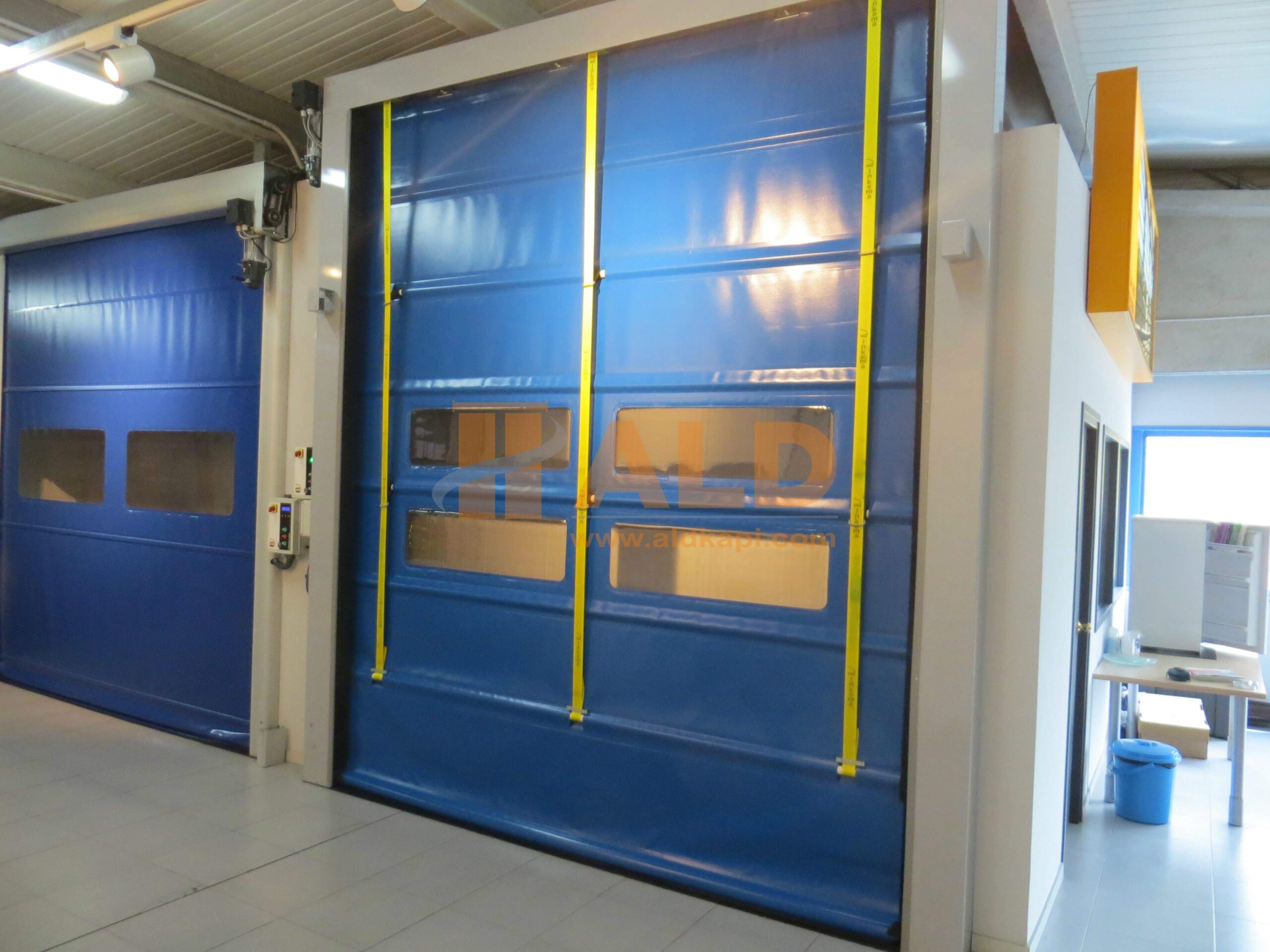

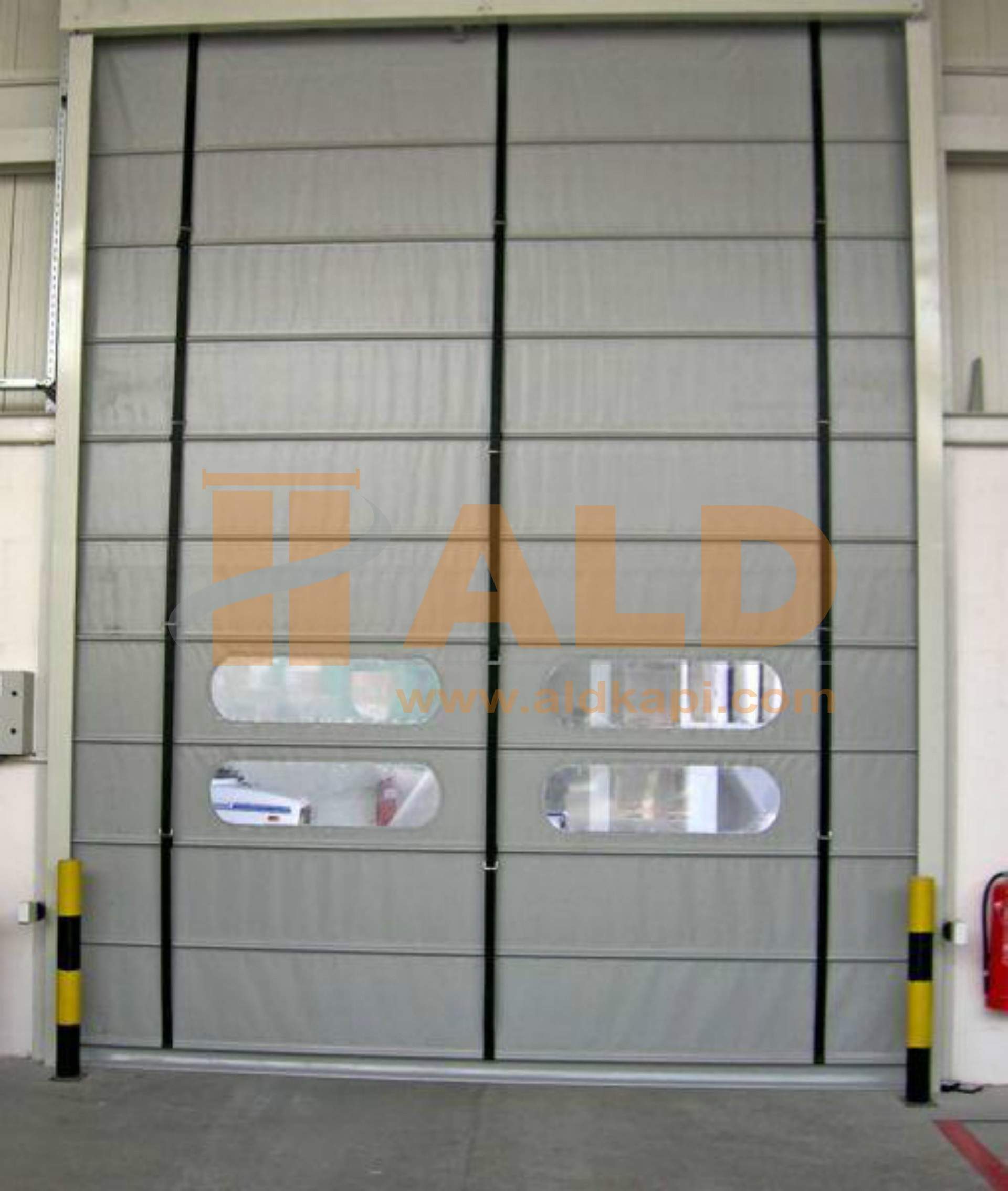

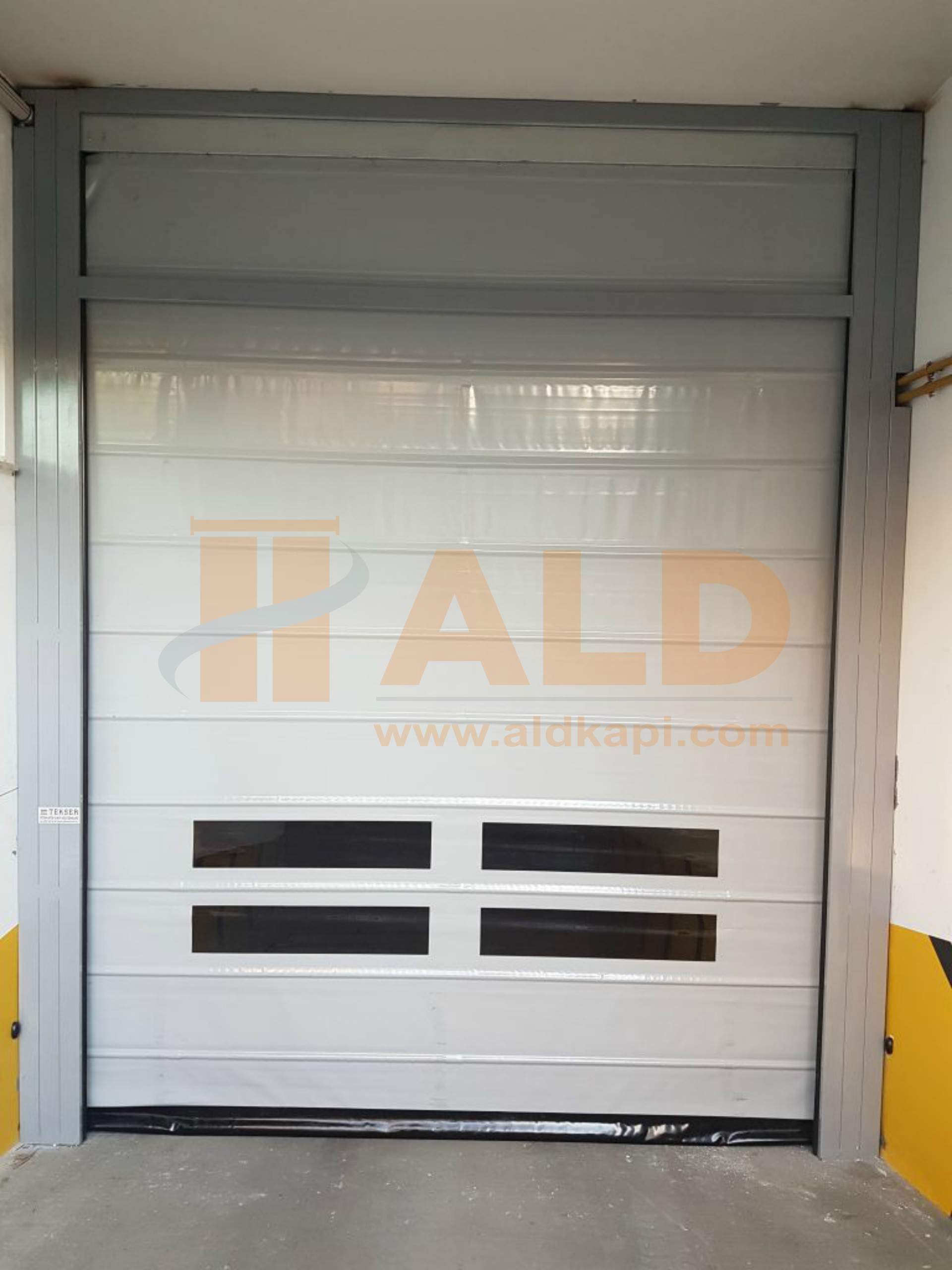

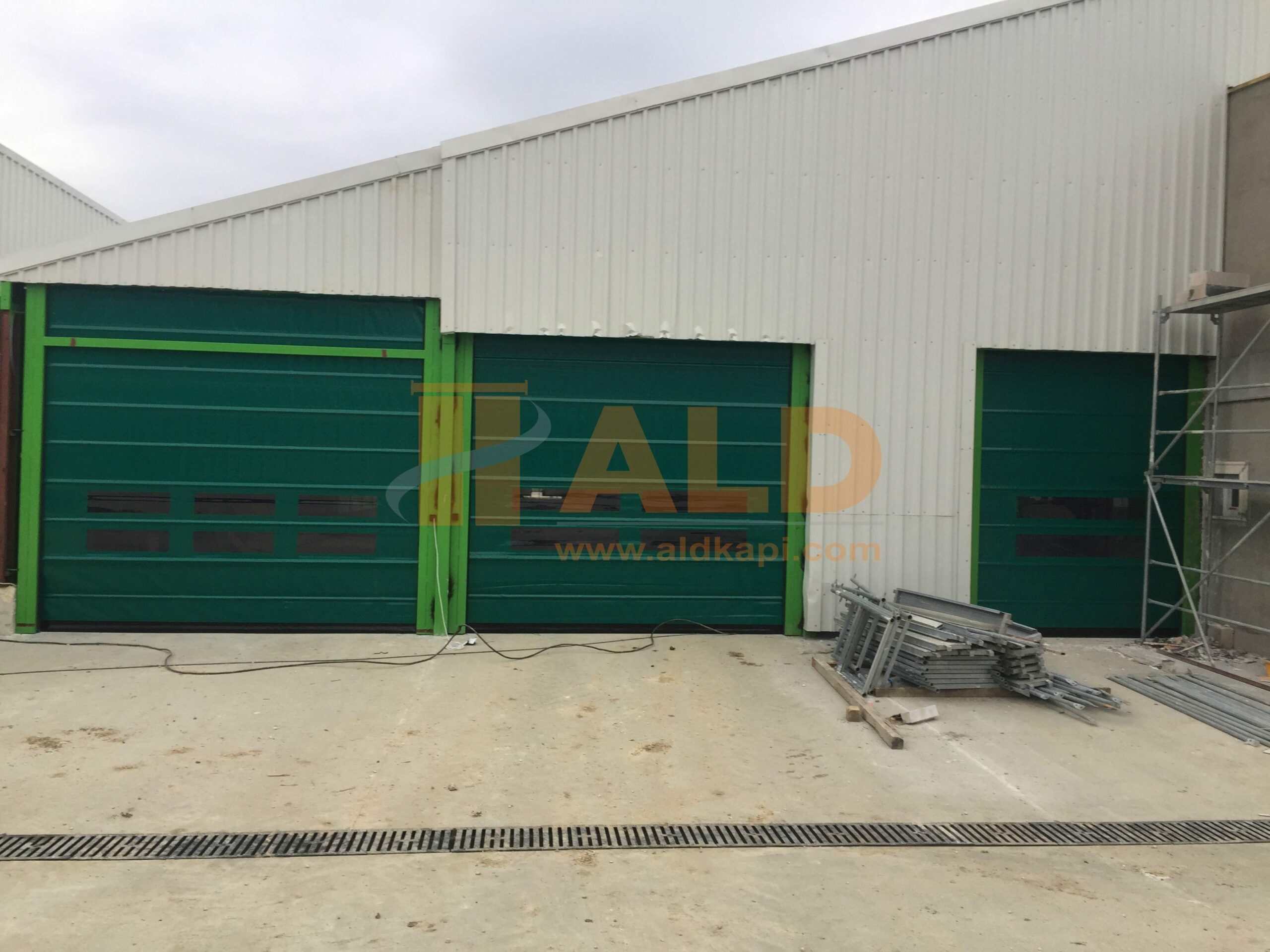

Fast Folding Canvas Door Ideal for Indoor and Outdoor

Automatic fast pvc folding door are functional door systems that offer solutions in environments with heavy work traffic.

PVC doors produced from durable fabric-textured materials provide heat, dust and wind insulation, energy and time savings. They offer effective solutions indoors and outdoors with security measures. PVC door motor works very quietly. PVC folding doors, which are easy to produce in the desired color and pattern, are very advantageous when their maintenance and cleaning are taken into account. PVC folding door does not require lubrication for life, but lubrication every 6 months is one of the most important factors in extending the life of the PVC folding door. They are door systems that are comfortable to use and have a long life.



Features

* Convenient for frequent opening and closing
* Control unit with frequency converter that provides deceleration at start and stop
* Manual opening in power cut
* High quality PVC tarpaulin
* Weldless, one-piece, steel side rails
* PVC bonding by high frequency welding
* Transparent viewing window
* Ability to work integrated with radar, metal mass detector, remote control, ip switch, card or encrypted pass systems.
* Auto shut off
* Safety photocell

Optional Features

* Counterweight System
* Counterweight System (Automatic opening)
* Inverter
* Communication Between Doors (Interlock)
* Rope Switch System
* Engine Cover
* Manual Lever
* Manual lock
* Additional Reinforcement for High Wind Loads
* Painted Or Stainless Metal Parts



Technical Details

hız Speed Standard Speed ​​
Opening Speed ​​1,2 m/s
Closing Speed 0,40 m/s
rüzgar Resistance to Wind Load With pipe inside the tarpaulin 20-90 km/h
branda Pvc Mehlar, Sioline, Heytex (ithal) 900 gr / m2
Fabric Thickness
Transparent Fabric Thickness
1 mm
2 mm
acil açma Emergency Trip Manual operating handle
Optional: Automatic door opening function via UPS against power failure via uninterruptible power supply
metal aksam Metal Parts The winding box and flag are 1311 quality galvanized steel. Drum and guides are aluminum.
otomasyon Automation Fast Engine Set 0,75 - 2,2 KW
Brake (Enarc ENR 02 ) 80 -90 - 100 TIP
Switchgears ABB
HD99 DOOR CONTROL PLC
Special ALD Switch System 35-50 Type
Pepperl fuchs safety photocell

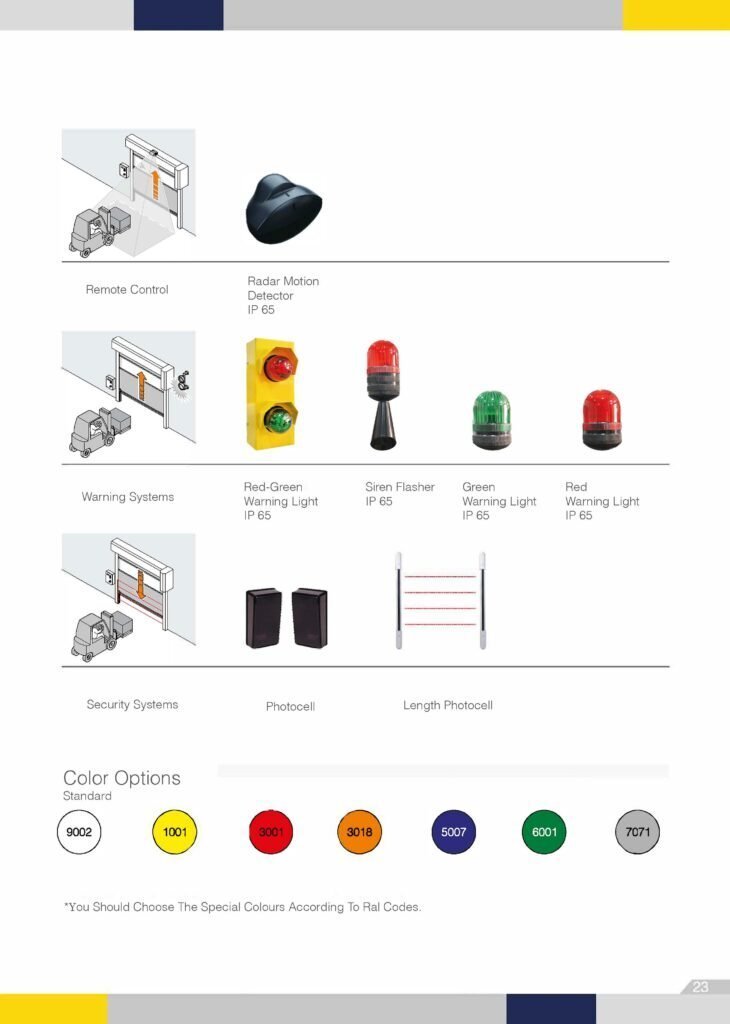

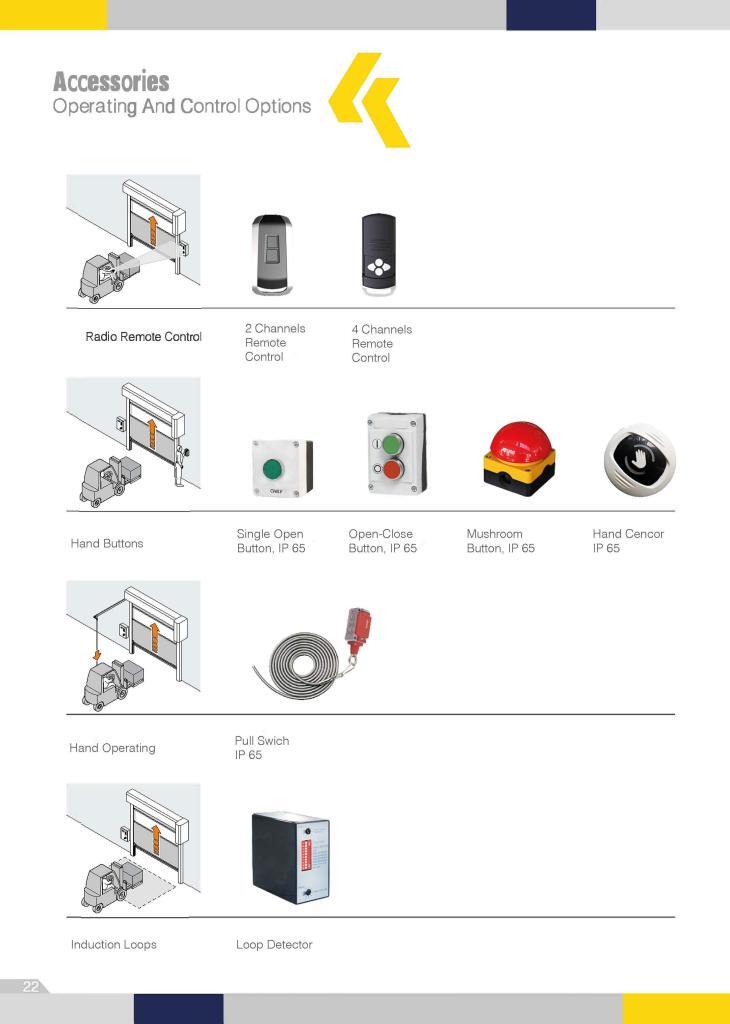

Options
