ALD Industrial Door

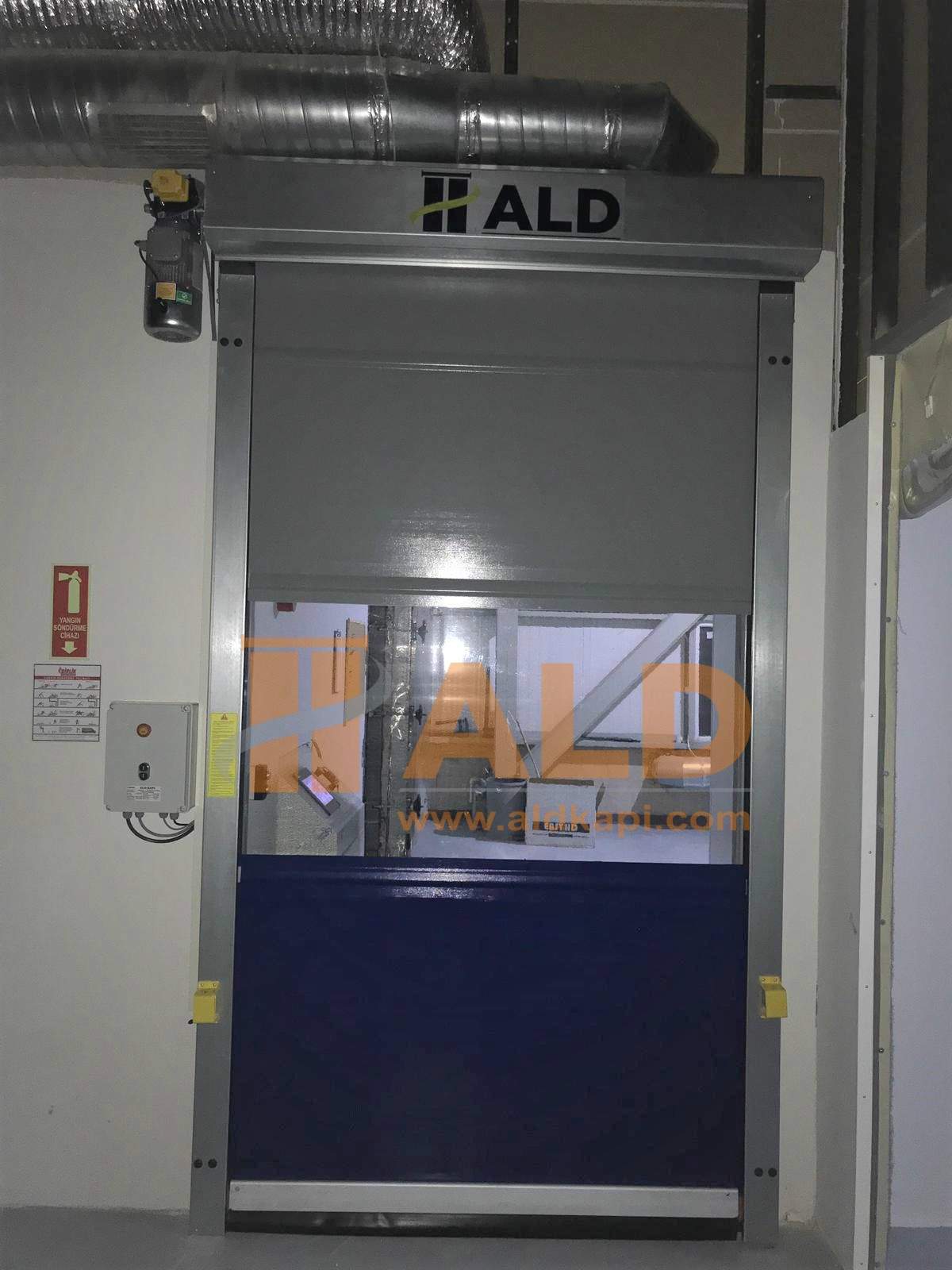

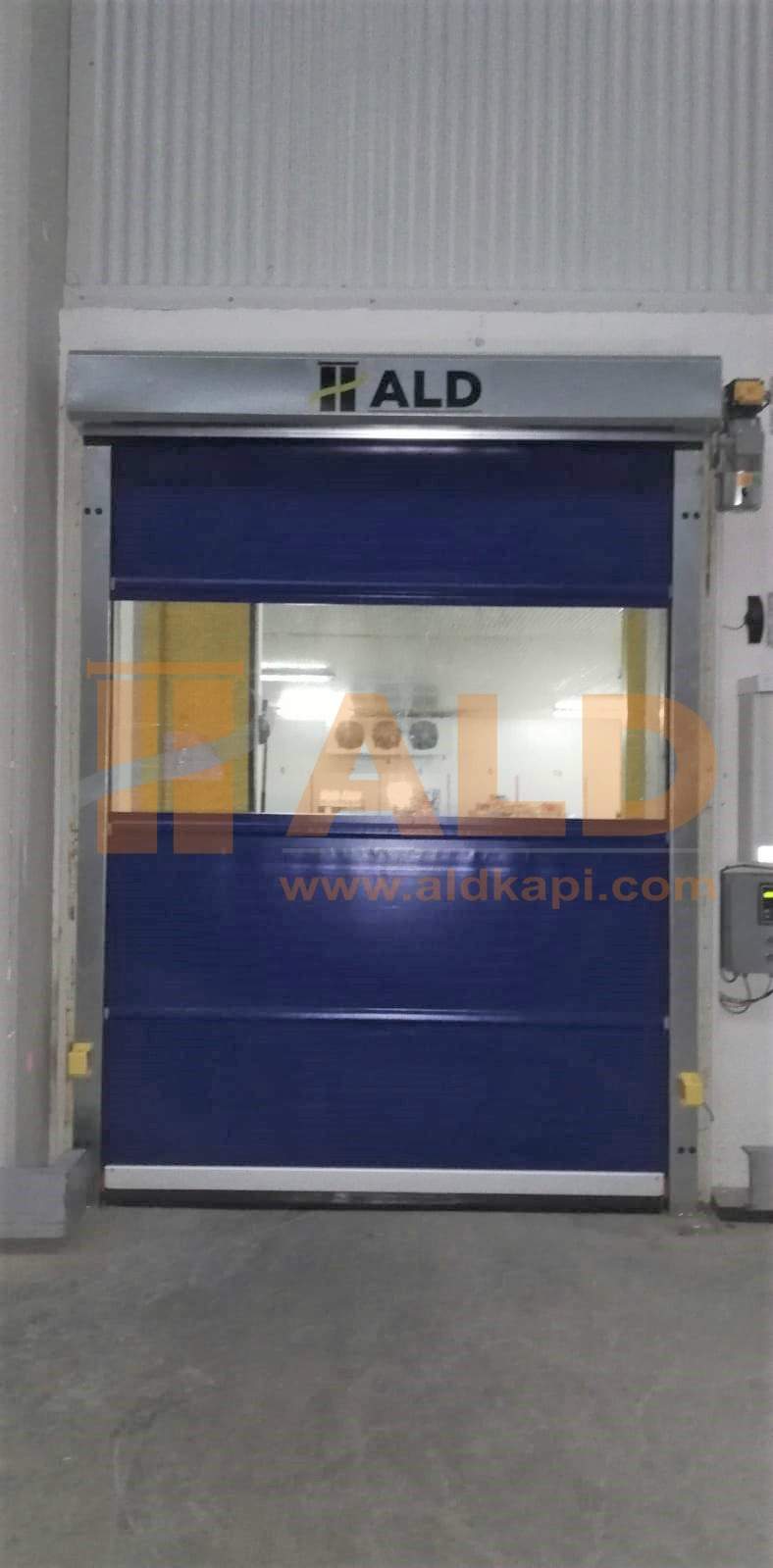

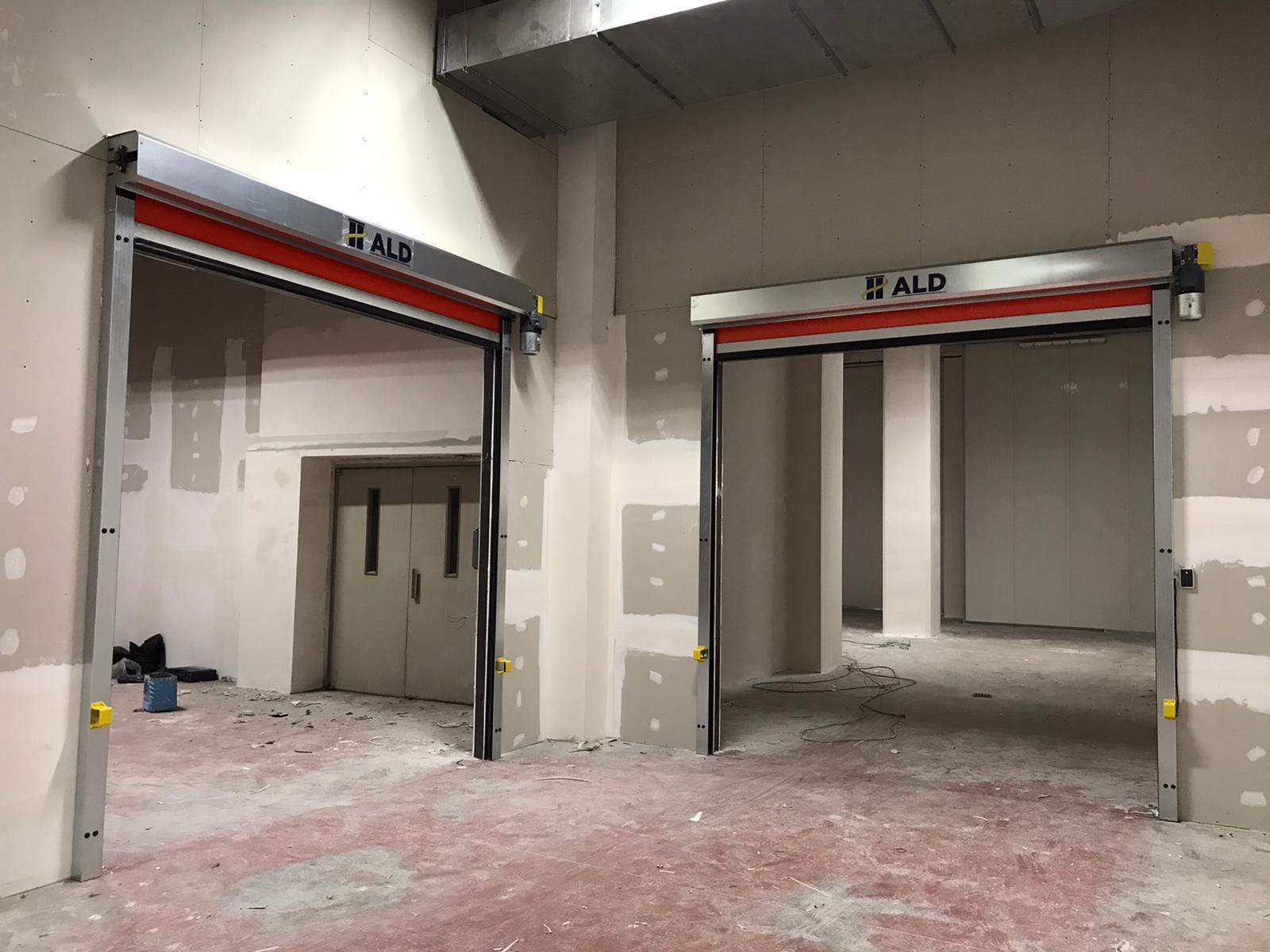

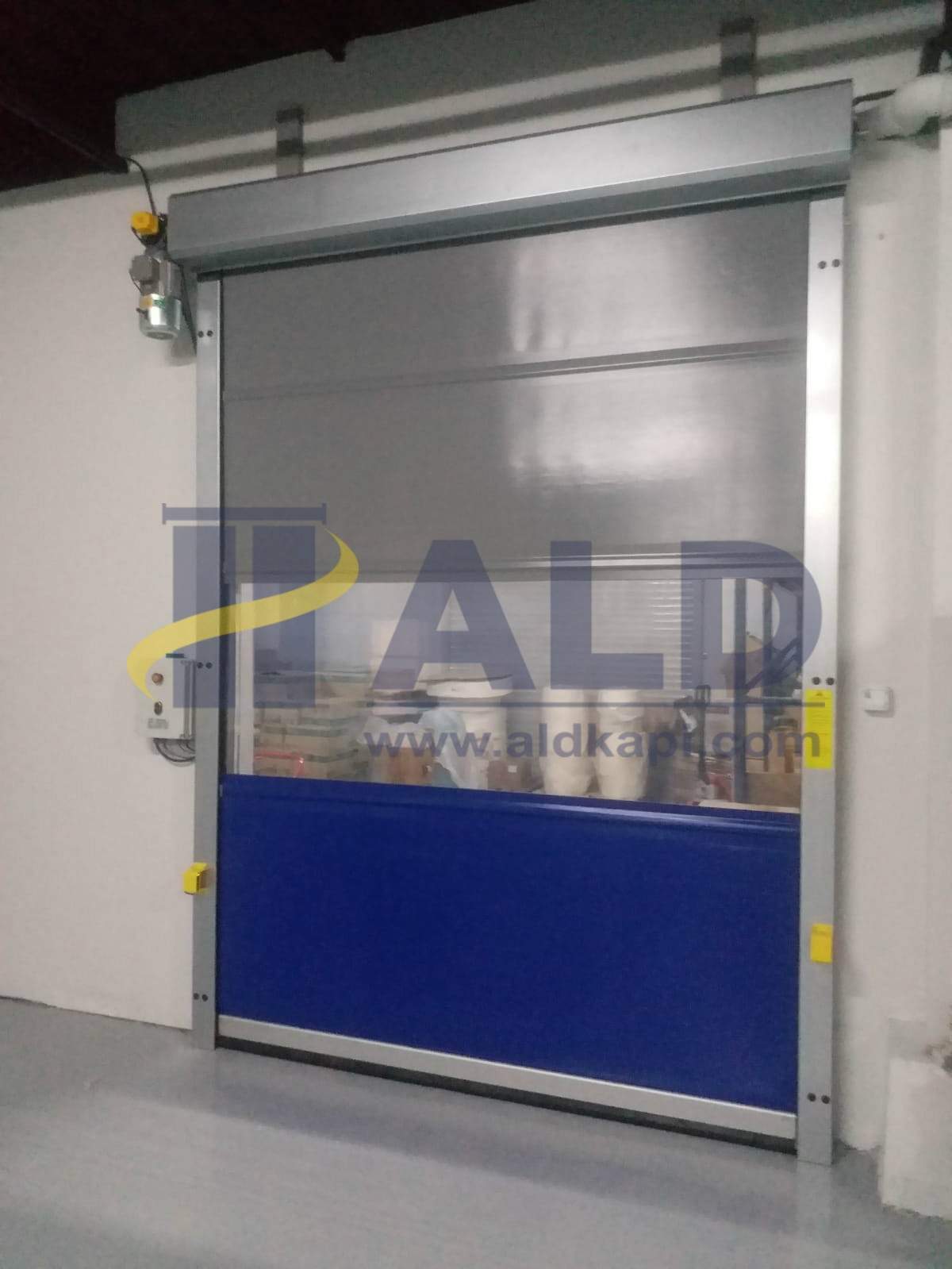

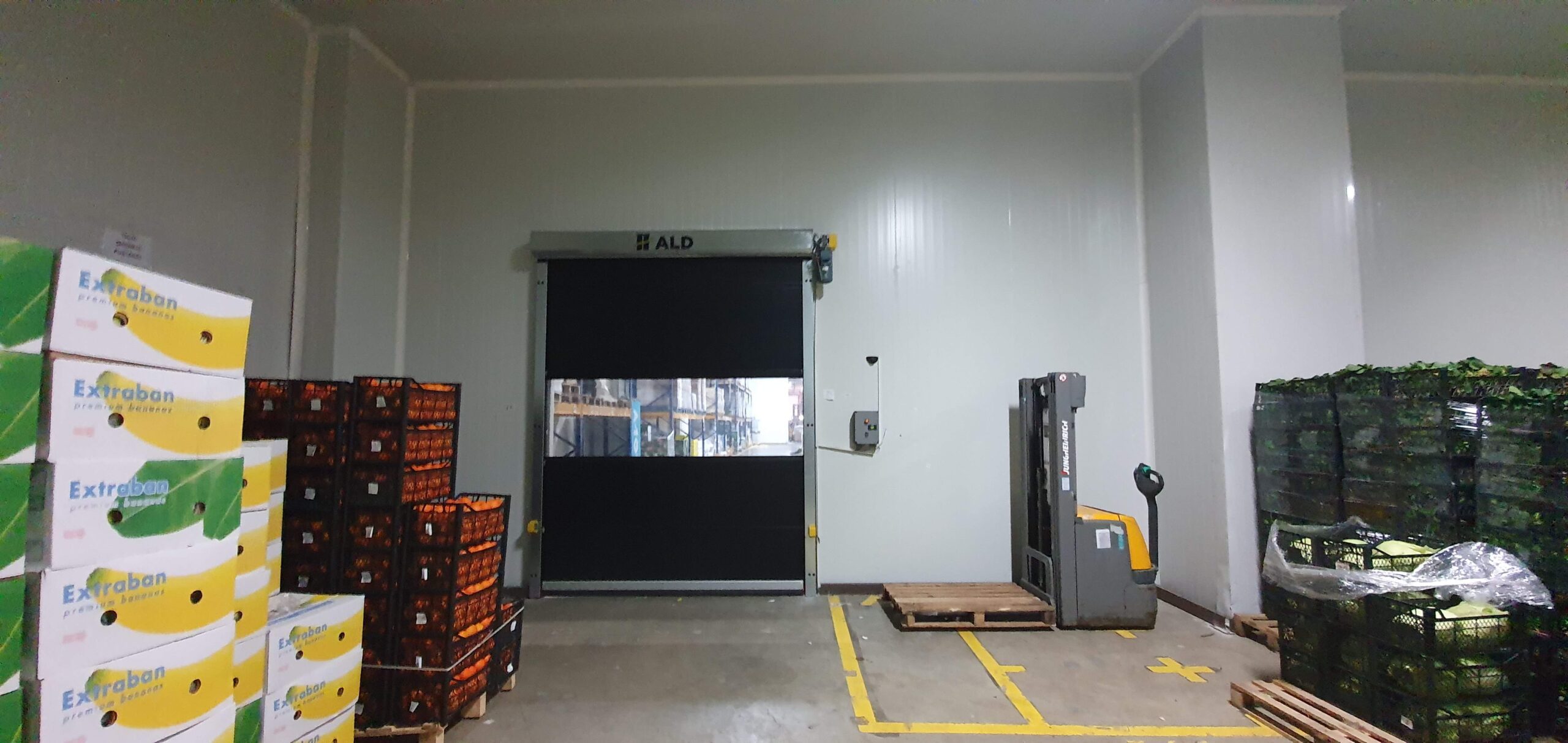

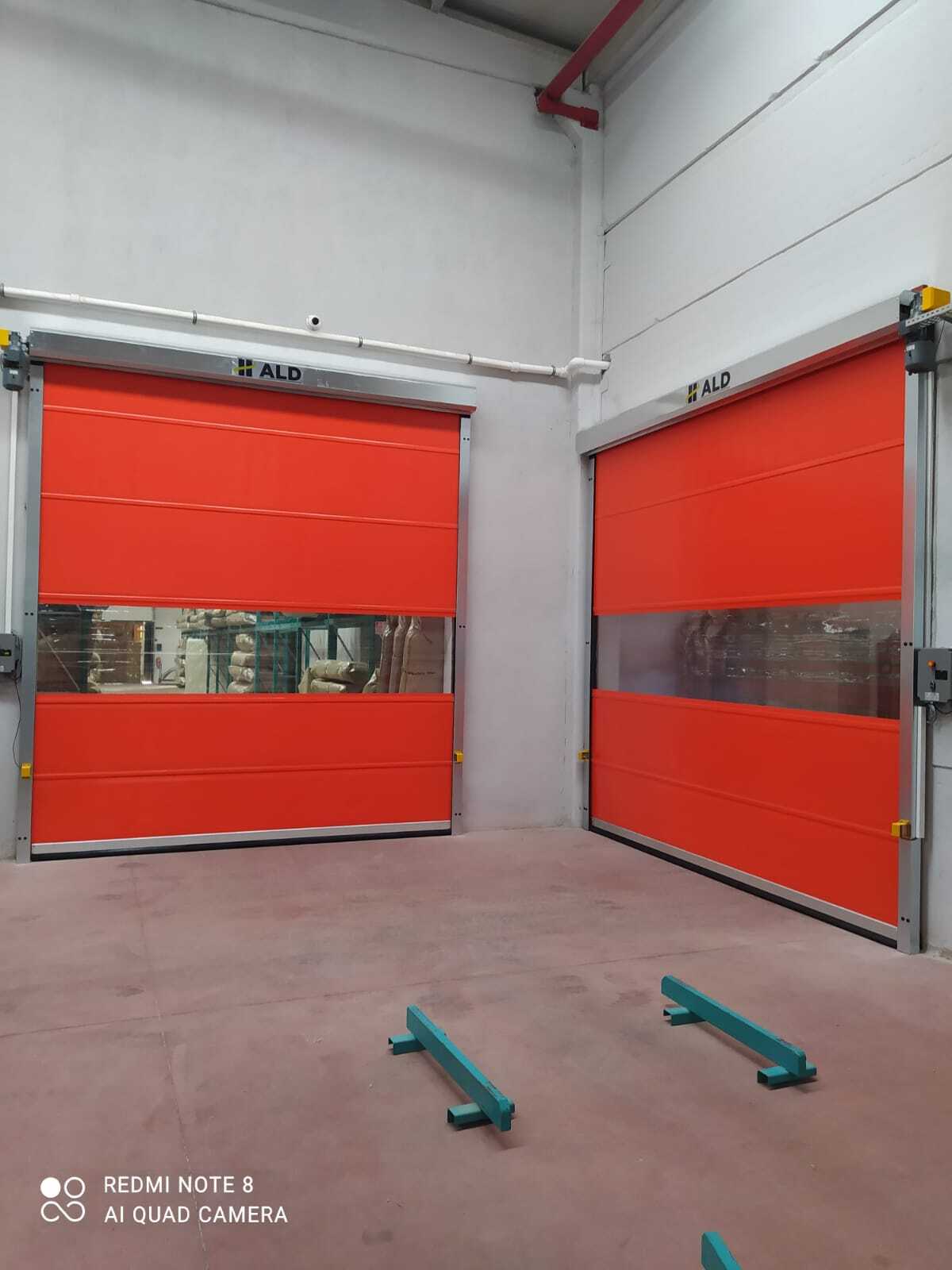

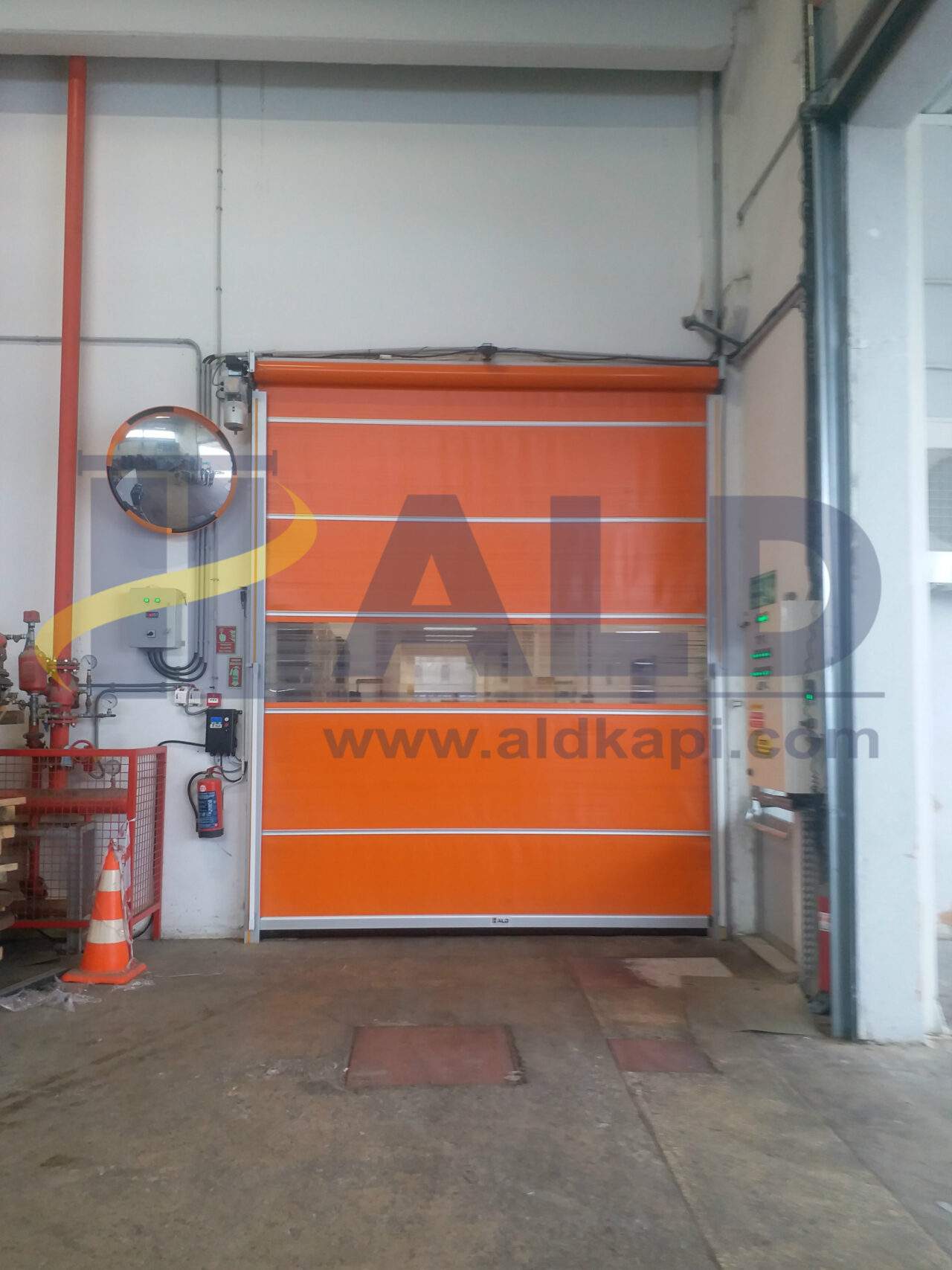

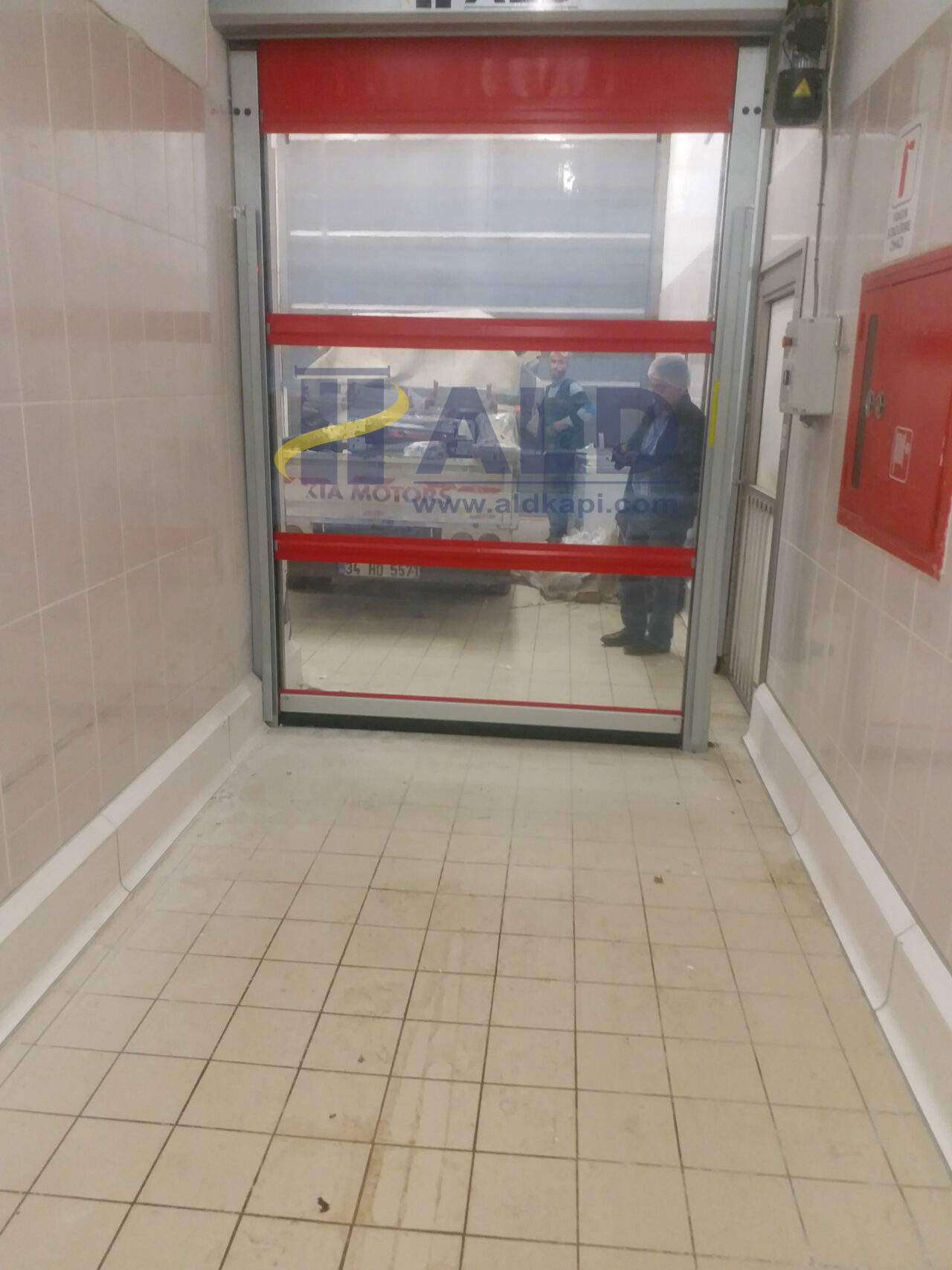

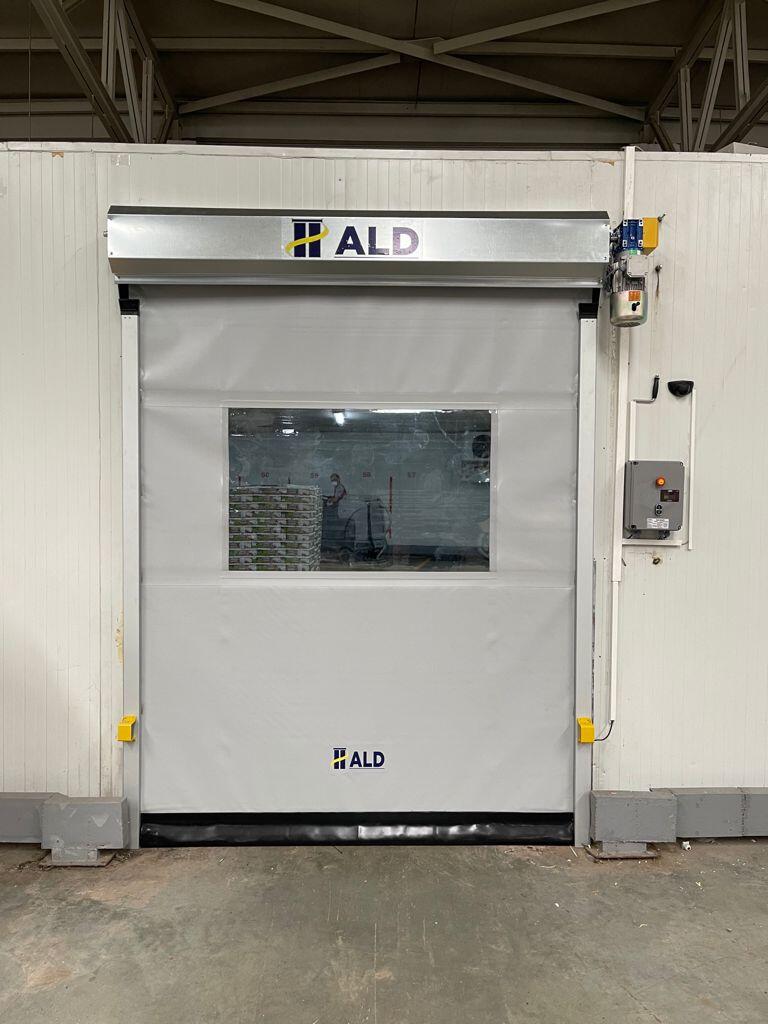

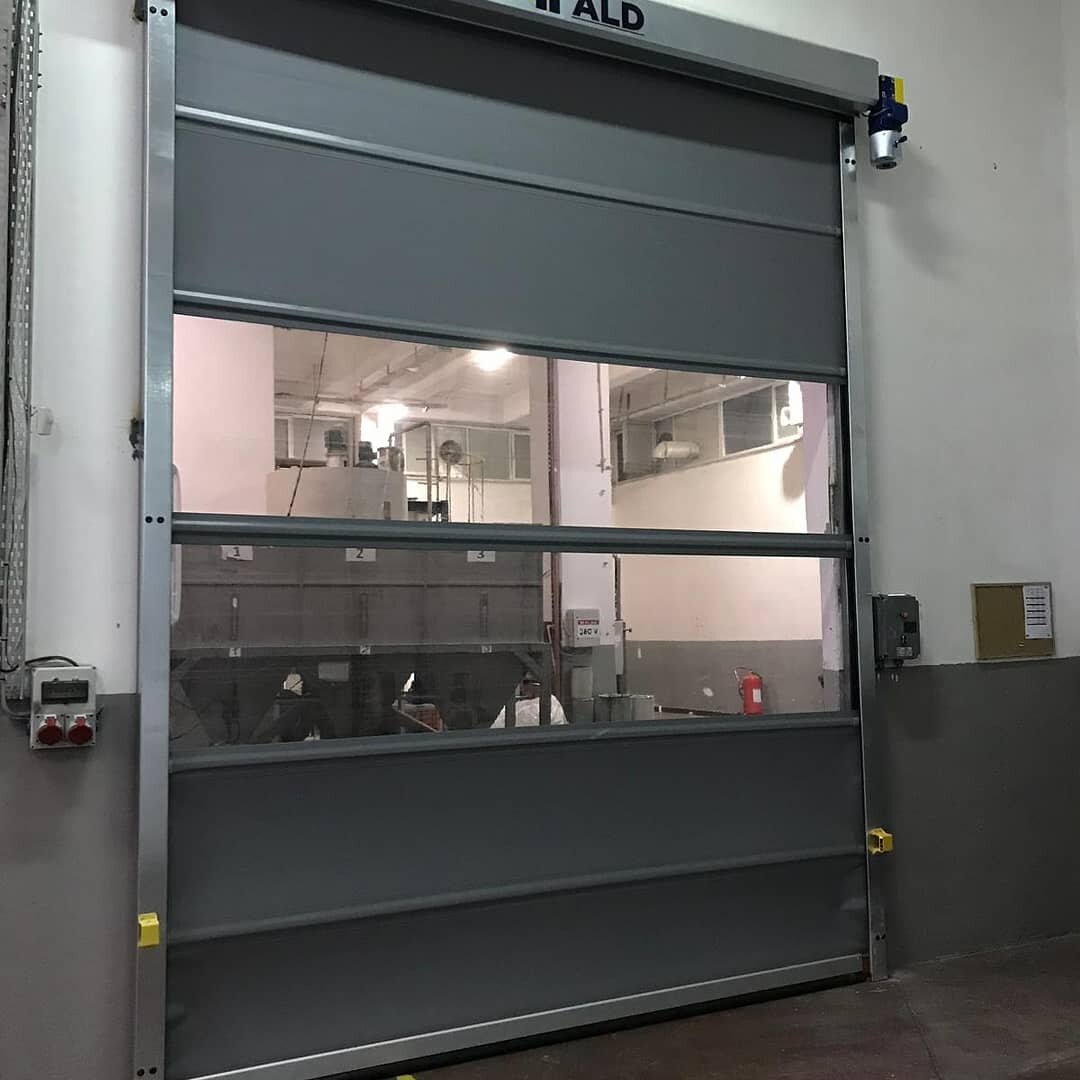

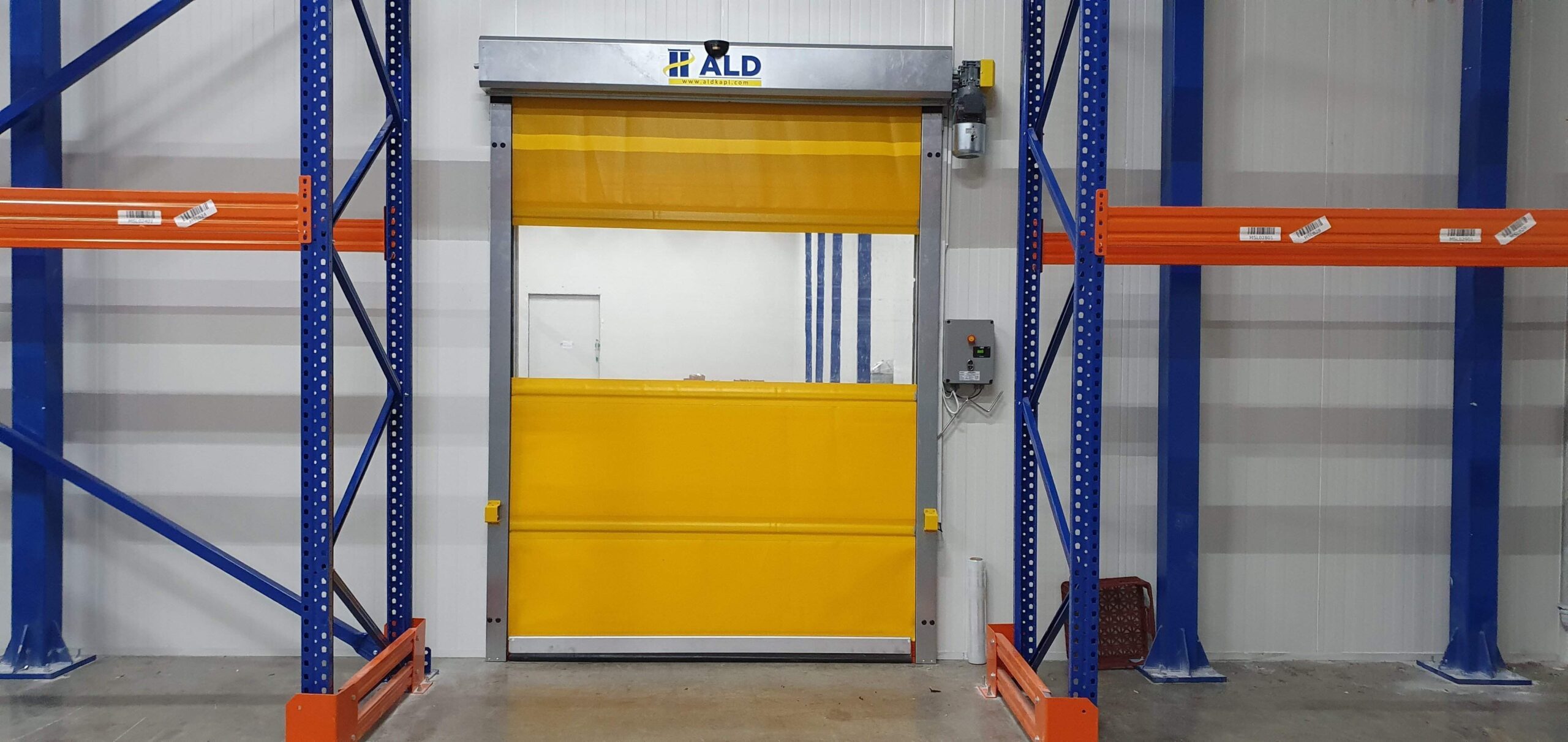

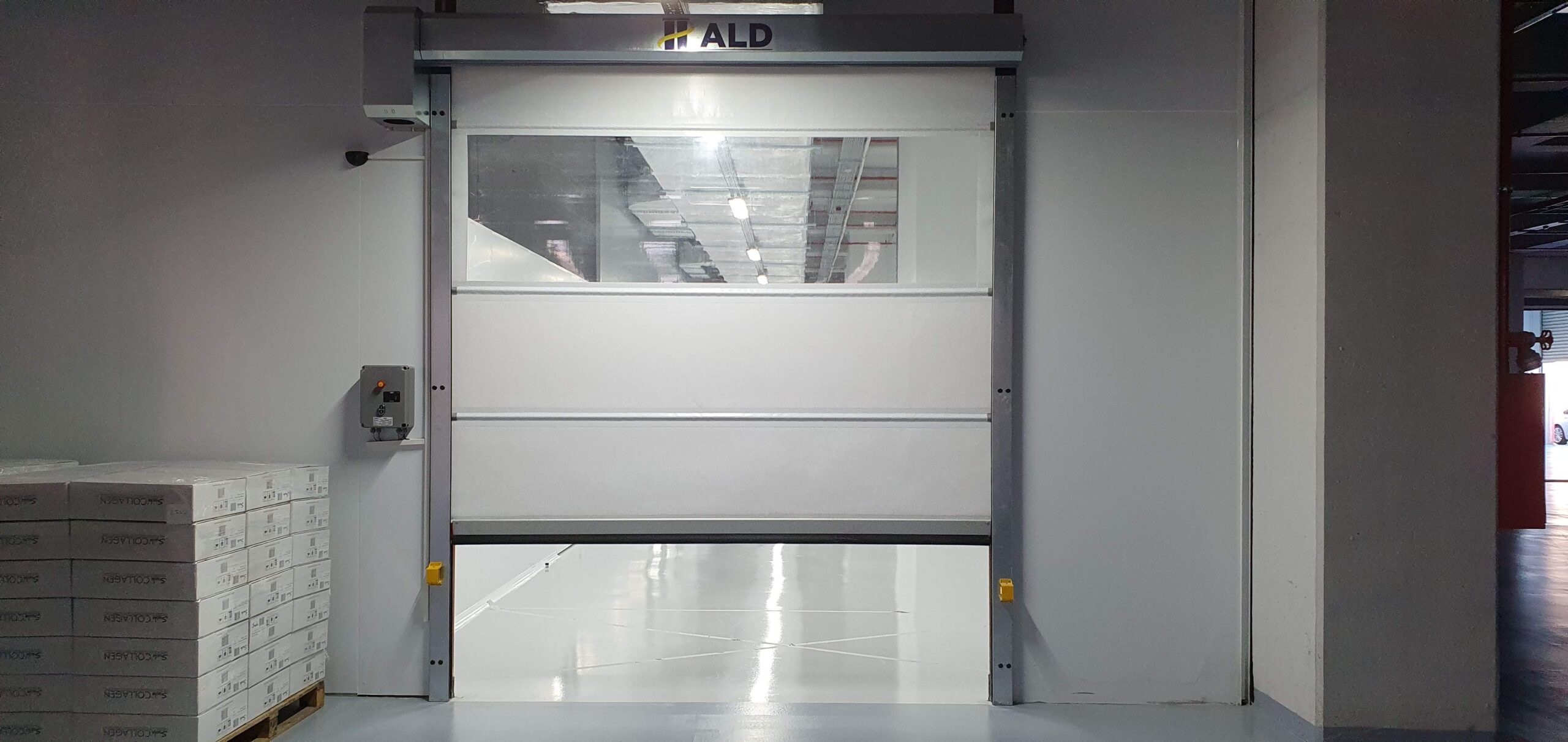

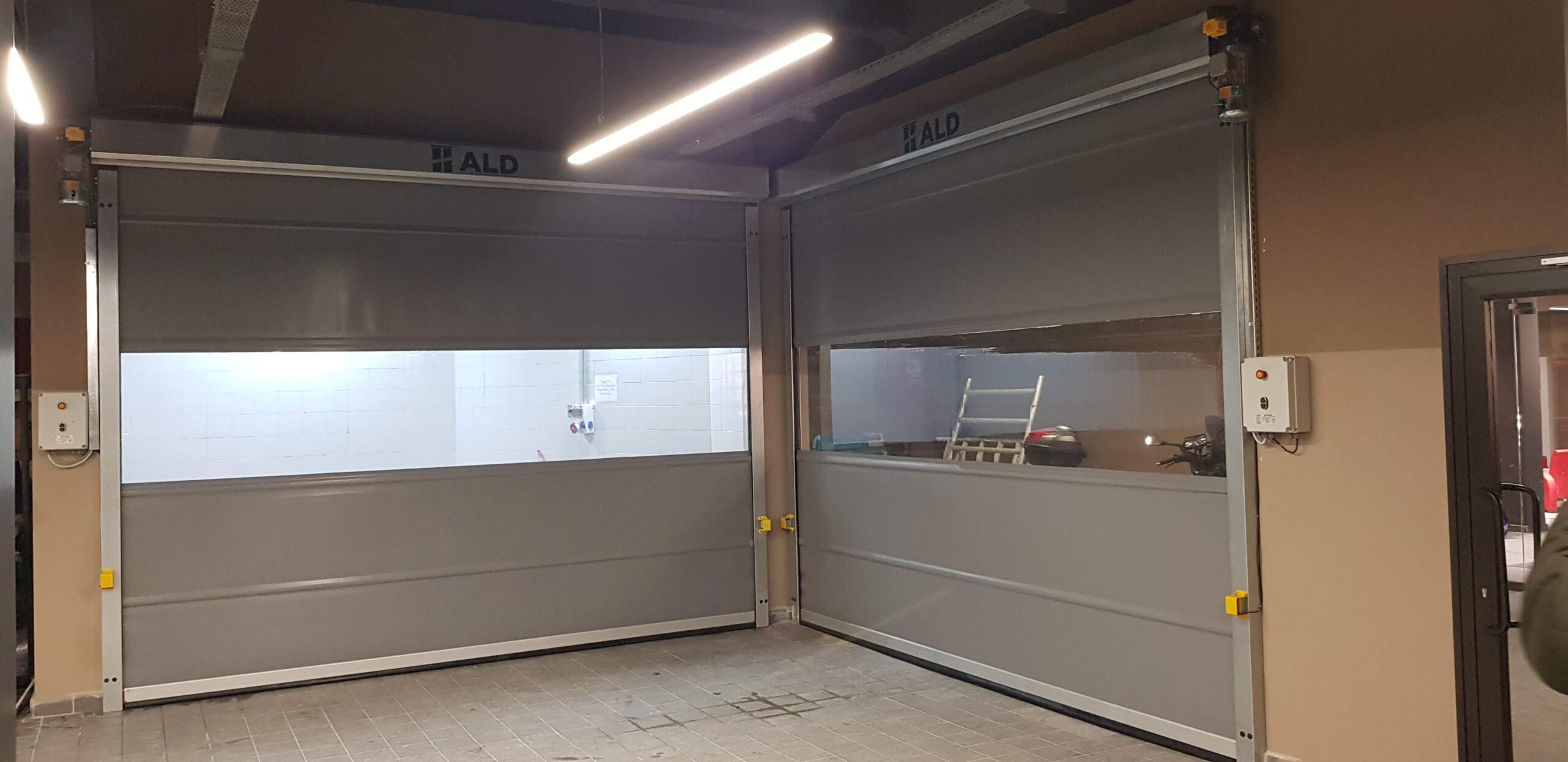

High Speed Roll Up Doors

ALD High Speed Roll Up Doors; It draws attention with its material quality along with its high and reliable functions. Accelerates interior and exterior transitions in buildings. Thanks to the fact that the tarpaulin system is monolithic, it is compatible with hygienic environments. It allows your facility to be opened and closed hundreds of times indoors or outdoors. High-speed PVC (tarpaulin) rolling shutter offers you many positive economic savings by eliminating the cumbersome work, waste of time and energy loss problems encountered in alternative door systems.

Not a day goes by that there is no need for speed due to the density in the facilities. PVC fast tarpaulin door is always preferred by our customers, as it minimizes the excessive traffic density and energy loss in the facilities.

The fact that our doors are made of tarpaulin ensures the system to be flexible, as every business official knows, minor accidents can occur as a result of carelessness, and we are aware of these accidents as a result of the sector.

Since these doors are flexible, they will fail after every impact and will never let you down. The most common problem with PVC tarpaulin doors is the tearing of the tarpaulin as a result of the impact. is taken.

High Speed Roll Up Door Technical Specifications:


* Convenient for frequent opening and closing

* Control unit with frequency converter that provides deceleration at start and stop

* Manual opening in power cut

* High quality PVC tarpaulin

* Weldless, one-piece, steel side rails

* PVC bonding by high frequency welding

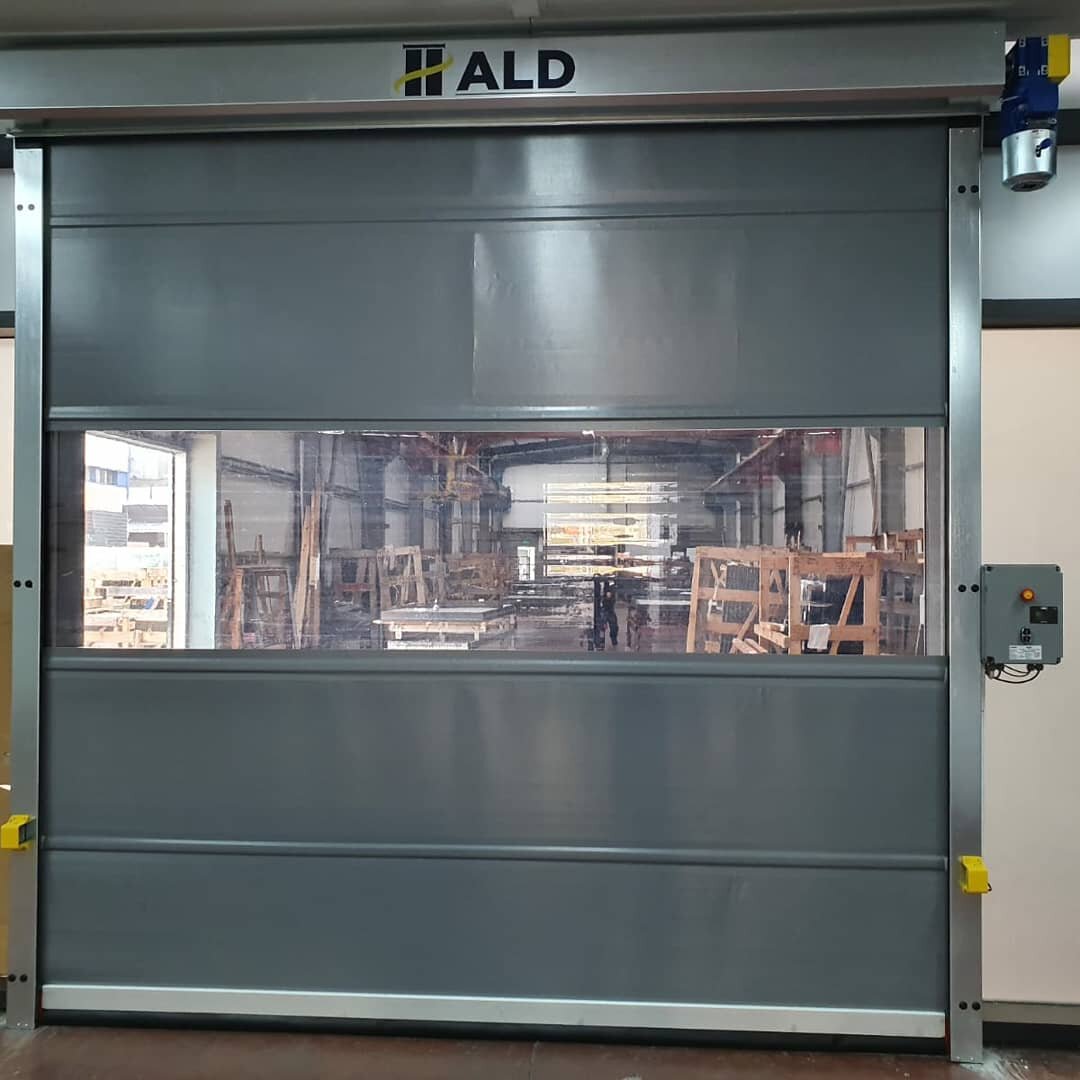

* Transparent viewing window

* Integrated operation with radar, metal mass detector, remote control, ip switch, card or encrypted pass systems.

* Auto shut off

* Safety photocell

High Speed Roll Up Door Optional Features


• Inverter

• Communication Between Doors (Interlock)

• Rope Switch System

• Engine Cover

• Manual Lever

• Manual lock

• Additional Reinforcement for High Wind Loads

• Painted or Stainless Metal Parts

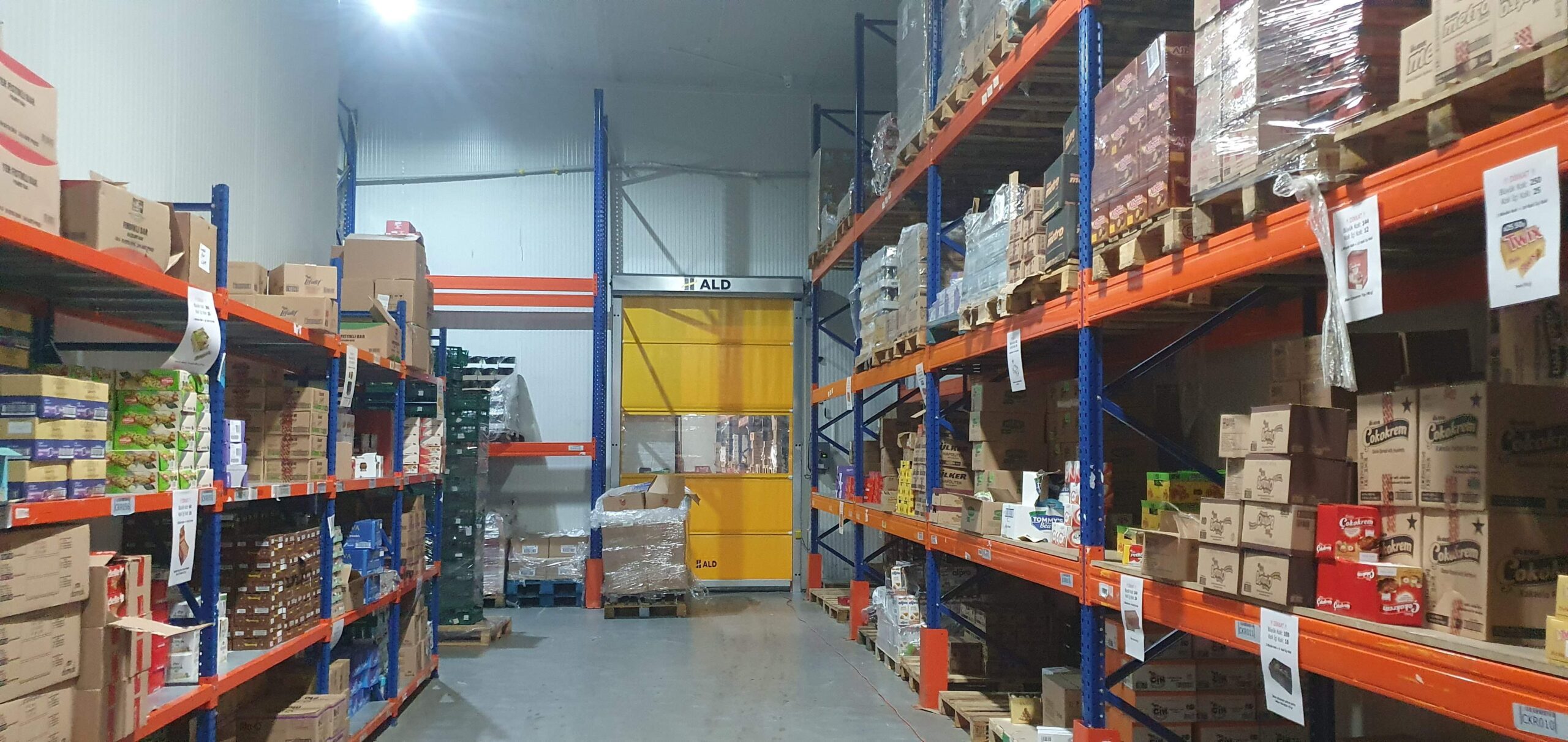

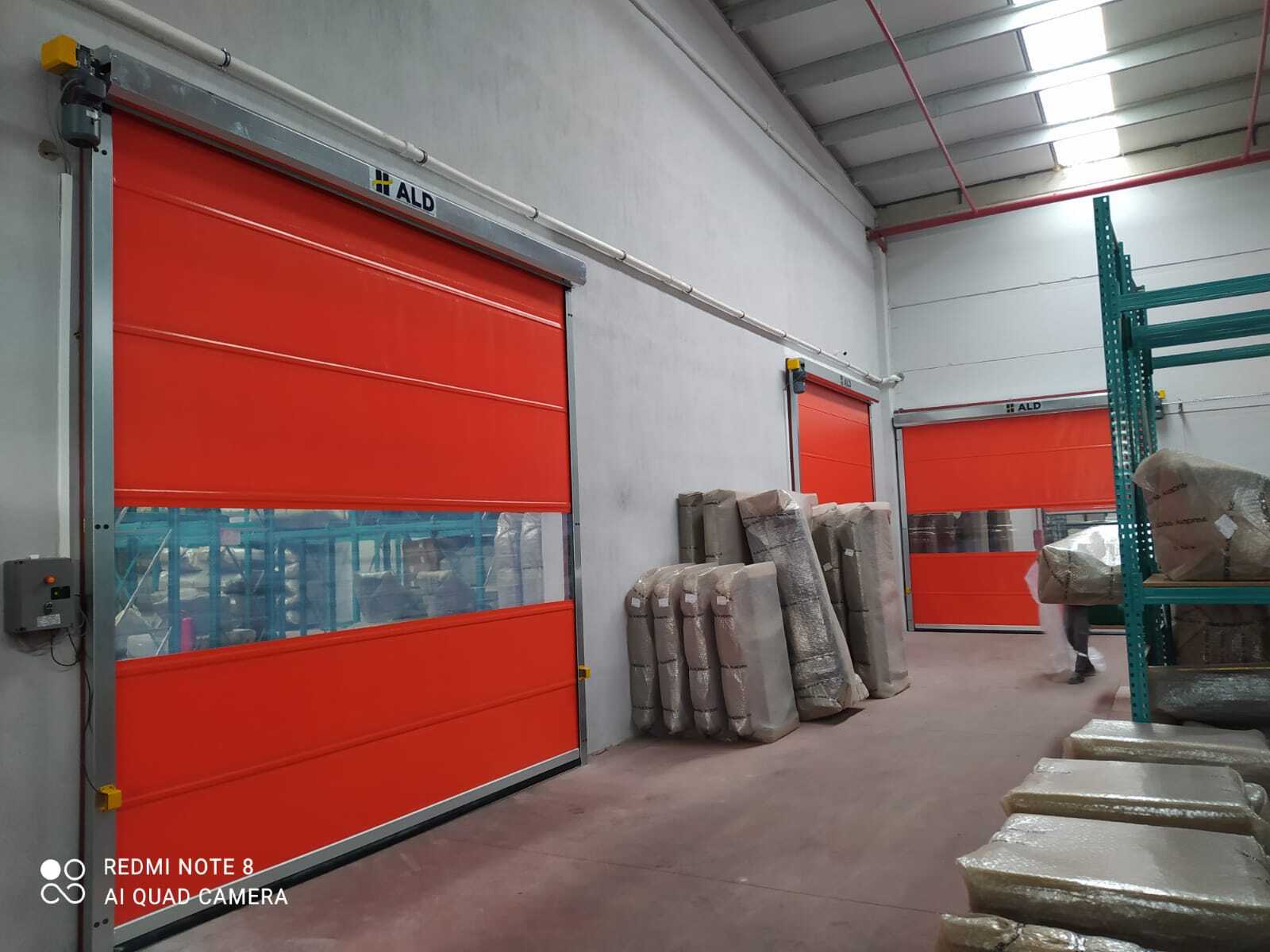

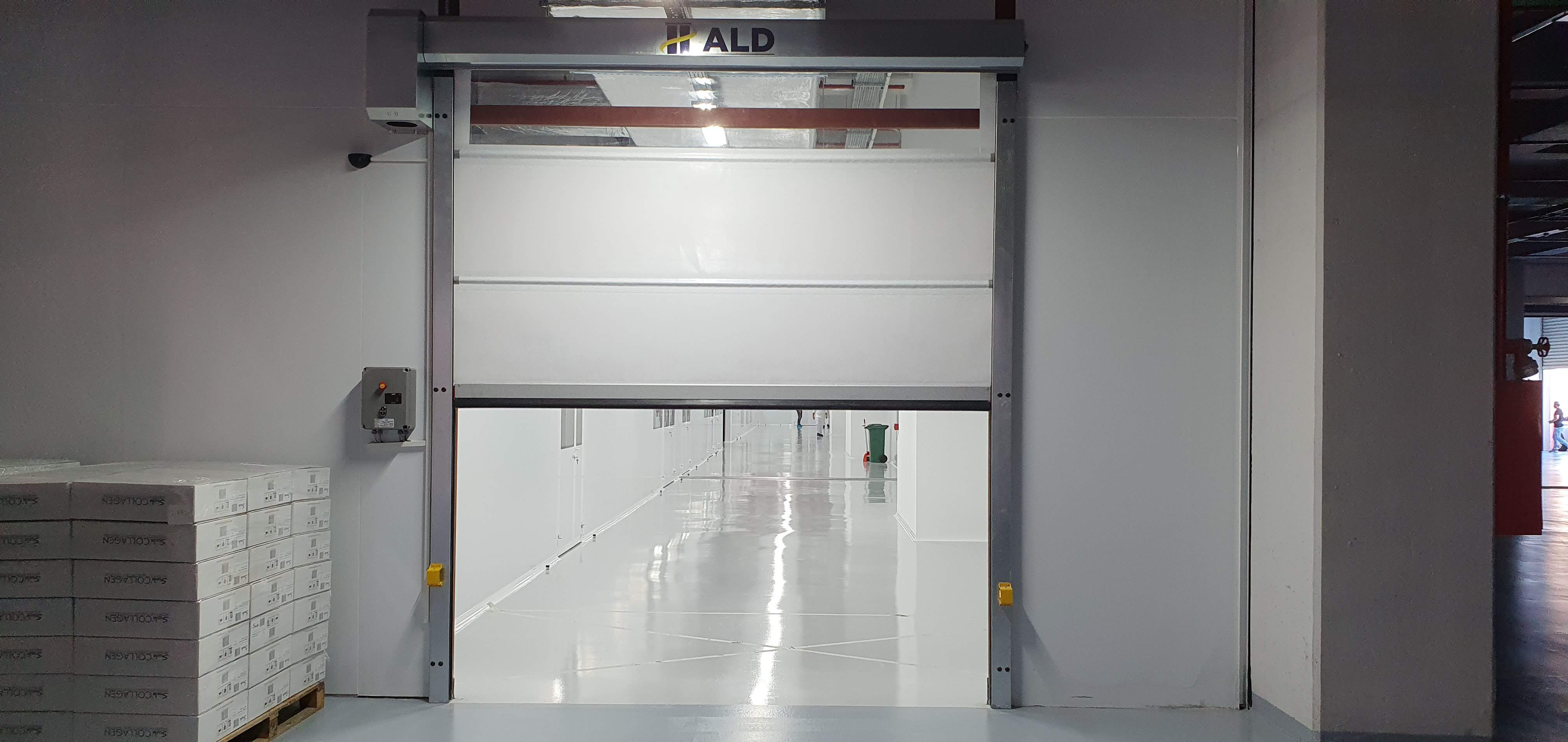

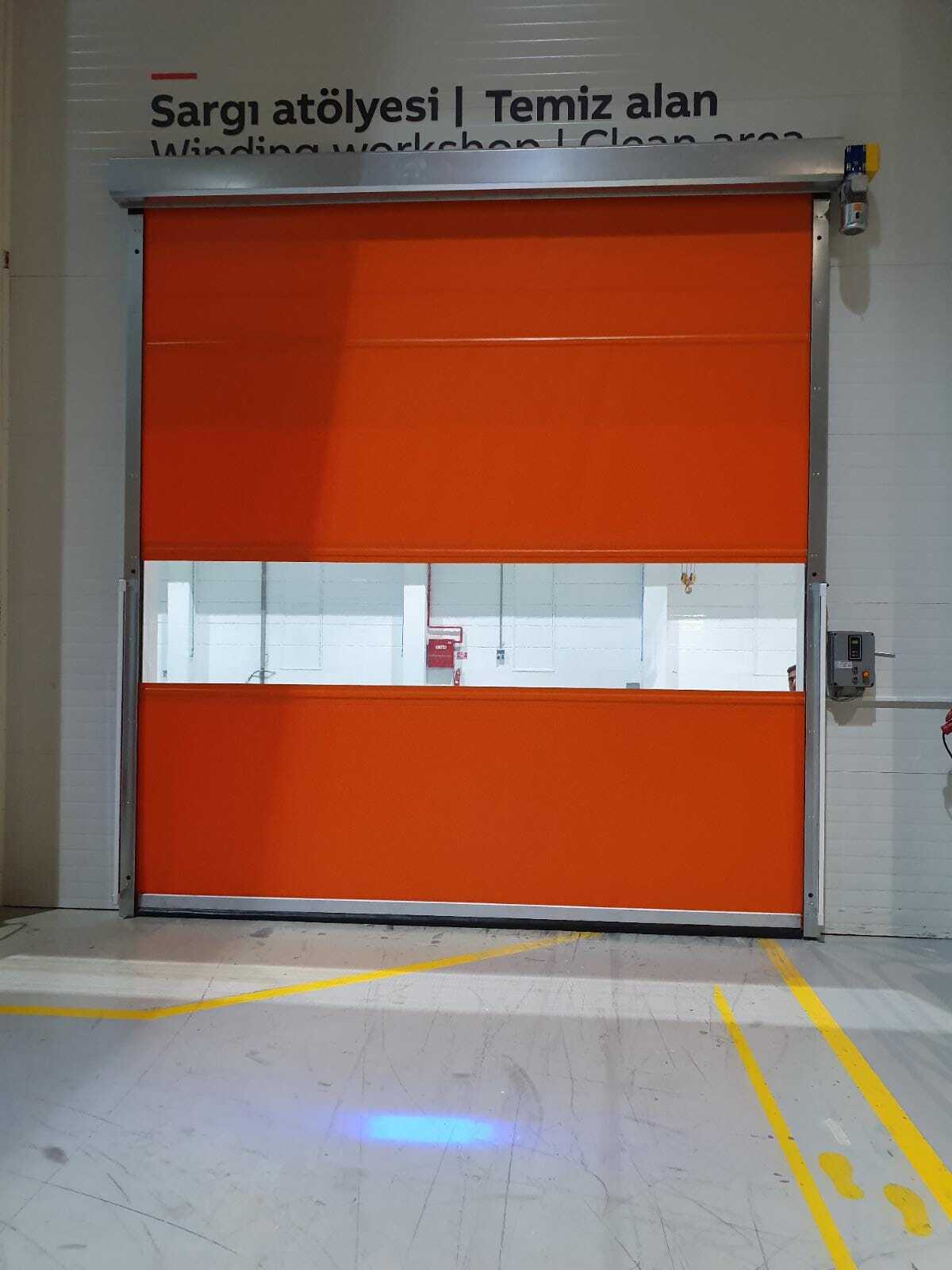

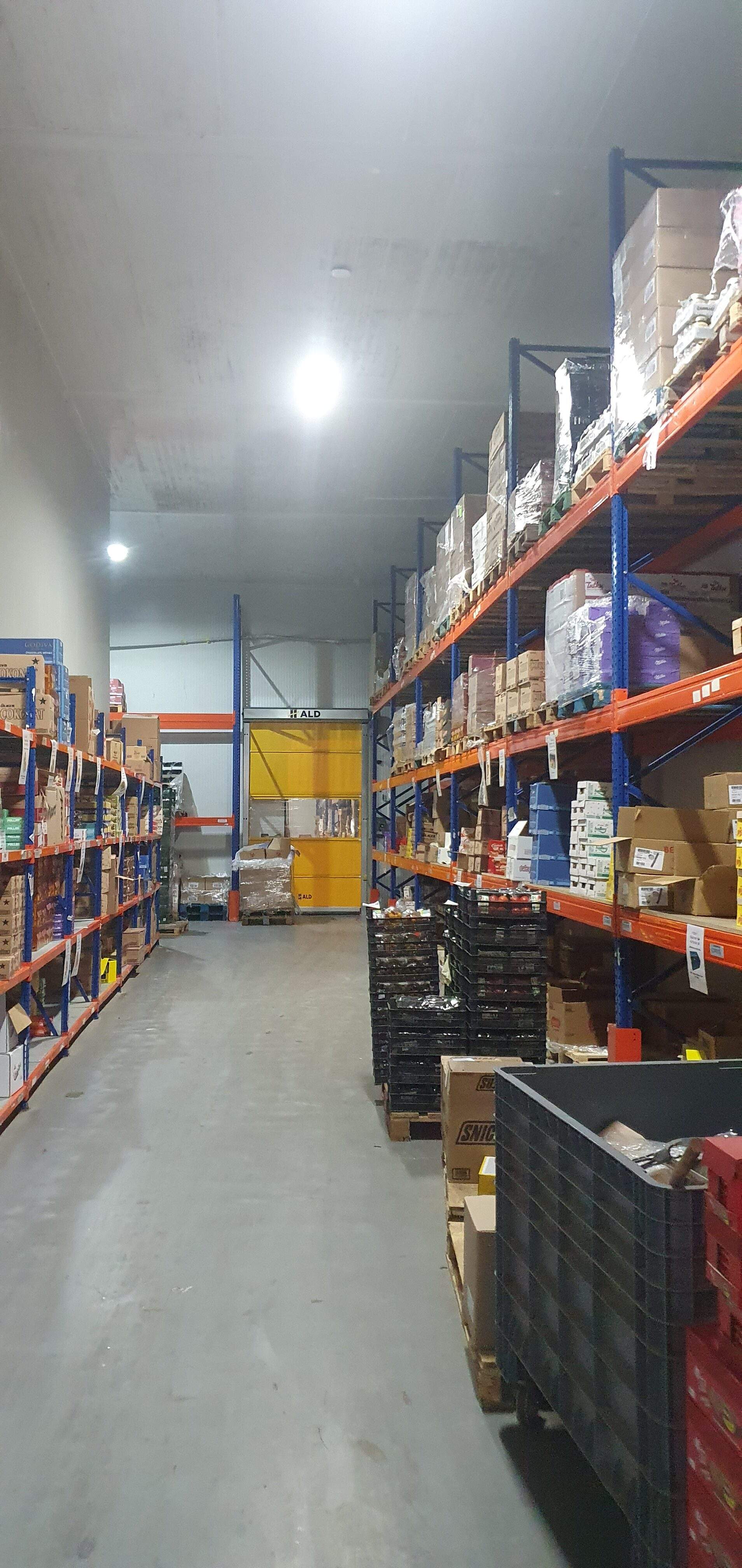

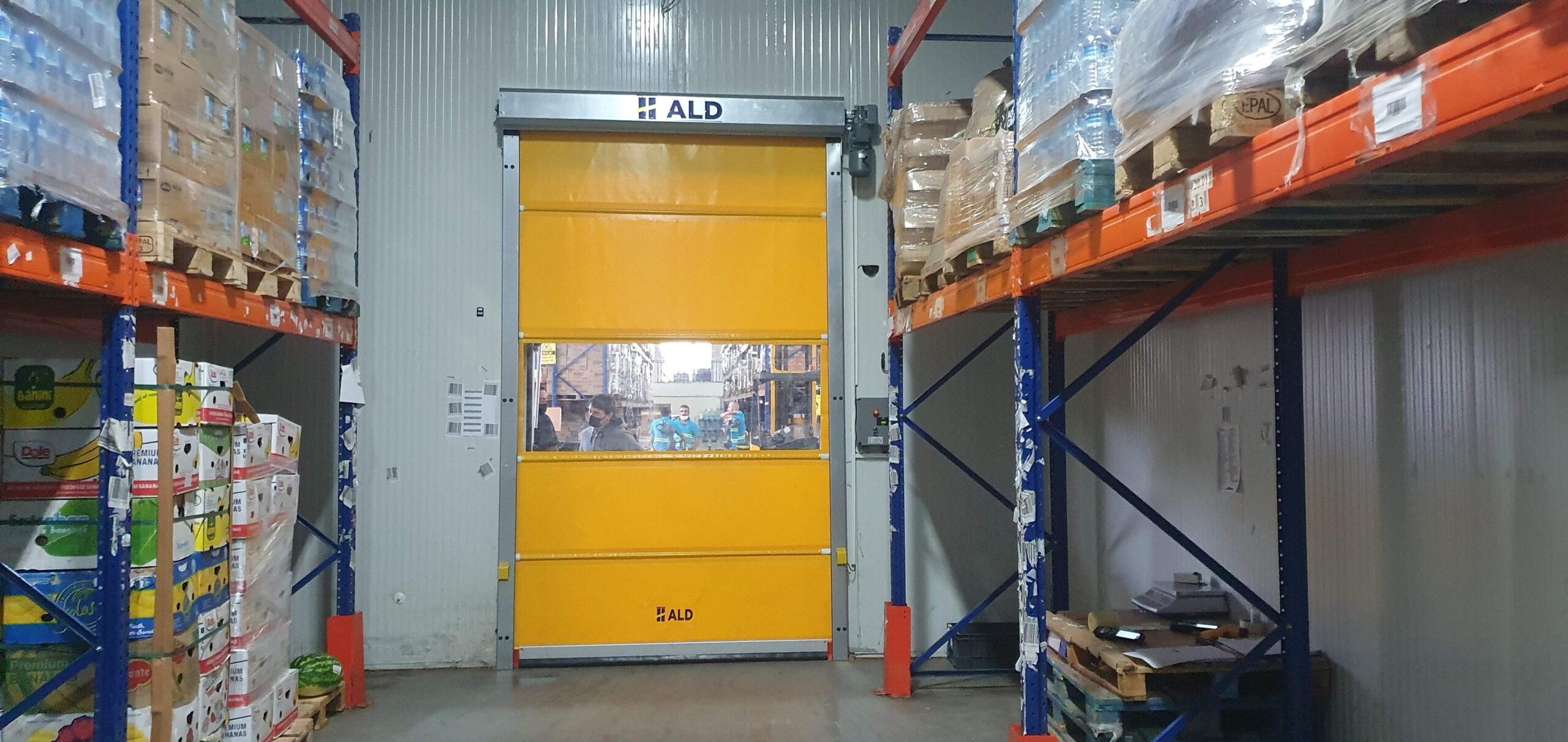

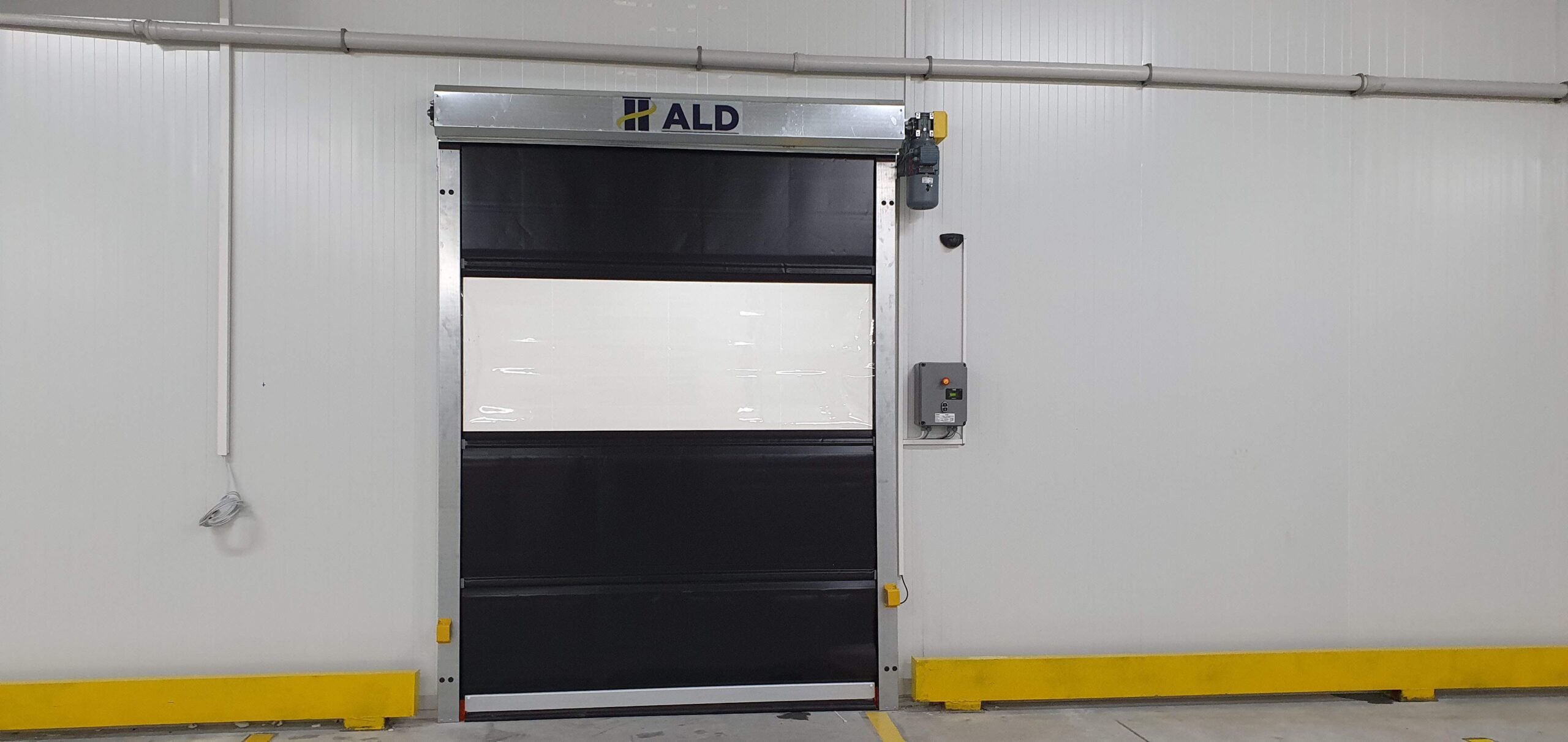

High Speed Roll Up Doors Usage Areas


• All kinds of interior and exterior partition doors

• Machine protection door

• Conveyor front door

• Robot cabin door

• It can be used as a Pharmaceutical and Food Industry door.

High Speed Roll Up Doors Prices


Prices may vary depending on the size of the product, the desired product and its details. You can get detailed information about Fast Canvas Door Price from us.

Technical Details

hız Speed Standard Speed ​​
Opening Speed ​​1 m/s
Closing Speed 0,40 m/s
rüzgar Resistance to Wind Load Tarpaulin filled 40 km/h
branda Pvc Mehlar, Sioline, Heytex (ithal) 900 gr / m2
Fabric Thickness
Transparent Fabric Thickness
1 mm
2 mm
acil açma Emergency Trip Manual operating handle
Optional: Automatic door opening function via UPS against power failure via uninterruptible power supply
metal aksam Metal Parts The winding box and flag are 1311 quality galvanized steel. Drum and guides are aluminum.
otomasyon Automation Fast Engine Set 0,75 - 2,2 KW
Brake (Enarc ENR 02 ) 80 -90 - 100 TIP
Switchgears ABB
HD99 DOOR CONTROL PLC
Special ALD Switch System 35-50 Type
Pepperl fuchs safety photocell
