Industrial Sectional Door
Industrial Sectional door; It is designed for factory, warehouse and parking lot entrances. Sectional doors are also used at material and vehicle entry and exit points.
Our sectional doors, produced from sandwich panels filled with steel polyurethane, provide the highest level of security and energy savings. Sectional doors, which can also be manufactured using transparent plexiglass, are preferred in showrooms and service entrances thanks to the transparency they provide.
Sliding towards the ceiling, it provides a more efficient use of the indoor usage areas and allows the door opening to be used more clearly.
The sectional door works by sliding in the side rails by making the most appropriate use of the space between the ceiling height and the upper level of the door. The door can be mounted in different ways in accordance with the distance of this gap. (can be applied with standard, low, high and guillotine bearing options.)
Industrial Sectional Door Detail
The motor systems of the sectional doors can be controlled with the help of a key control unit as well as being controlled by a remote control.
Sectional doors, which play an active role in vehicle and pedestrian traffic, can be applied as standard button, manual pull type with chain or remote control.
Sectional industrial door systems work with a motor system with a direct shaft clutch from the side or with a chain hoist system that is operated in the same way.
It is an ideal system with motor or manual use for all industrial structures such as factories and warehouses.
Sectional Doors have a security system against spring breakage and rope throwing.
There are special details on the panels and rails that prevent finger pinching.
Industrial sectional door systems provide smooth and safe loading and unloading in businesses with level-adjustable ramps and truck bed compression loading bellows.
Sectional industrial door panels are pulled by winding steel ropes on drums that vary according to the size and bedding shape of the door. If the ropes are broken or the springs are broken or damaged in any way, the rope break safety system and the spring break safety system prevent the door from falling.

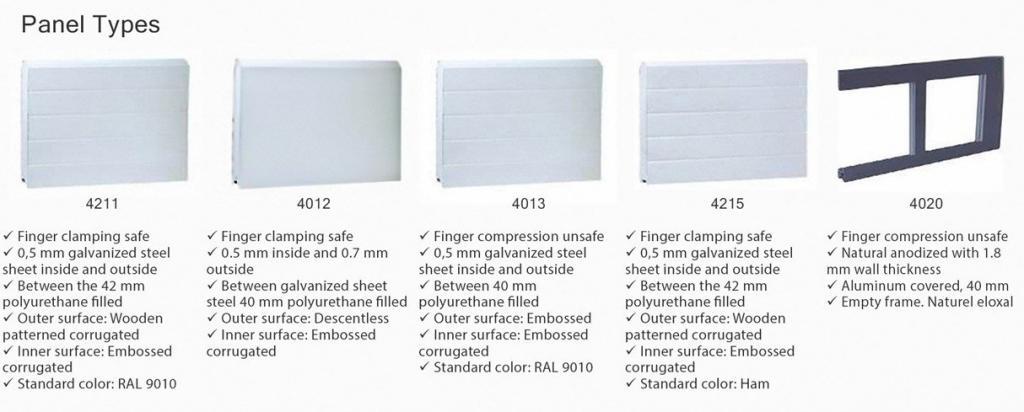

Industrial Sectional Door Panel Details
The 615 or 495 mm panels that make up the door are connected to each other with panel color electrostatic painted steel, aluminum or stainless steel hinges.
Panels with a thickness of 42 mm and a thermal coefficient of 0.78 W/m2K are composed of two steel, aluminum or stainless steel plates filled with polyurethane foam with a density of 40 kg/m3.
There are strong steel plates inside the panel that increase the wind resistance. The wind resistance of our panels is 80 km/h.
Thanks to EPDM gaskets, high insulation is provided on the sides, bottom and top, against rain and wind.
Panels with sectional door systems in standard white color (inside-outside RAL 9002) can also be applied in different RAL colors in accordance with the building exterior.
The sheet metal plates on the front and back surfaces of the sectional industrial door panels are firmly joined to each other in four layers. On the door panels, windows consisting of double-walled acrylic glass can be opened in desired rows for lighting purposes.
Sectional Door Features
- Rope break safety system
- Spring set consists of double springs
- Spring bumpers
- 2” galvanized steel rail set
- Aluminum upper sealing profile
- Aluminum bottom support profile
- EPDM bottom sealing gasket
- EPDM top sealing gasket
- Hollow shaft with keyway
- Solid shaft with keyway
- For doors wider than 6000 mm, 65 mm omega wind support sheet is used
- Door Handle
- Rear link C profile
- bottom sealing gasket
- side seal gasket
- After 5500 mm, double side hinge and long wheel are used
Industrial Door Advantages
- It is easy to assemble,
- Heat and Sound Insulation is high,
- It works without noise,
- It opens and closes with little effort,
- Opening the door does not cause any loss of space,
- It provides the opportunity to work in accordance with the structure of the building,
- The net opening of the door is fully used,
- Components and parts can be changed easily,
- The working environment is illuminated by opening the window systems,
- By attaching the service door to the panel door, personnel entry and exit are provided.
