Iso Doors /

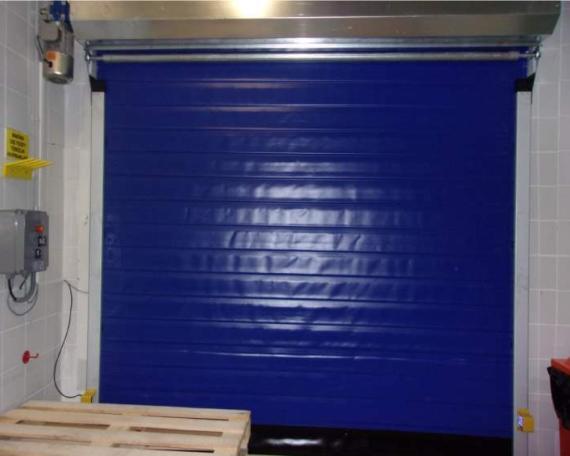

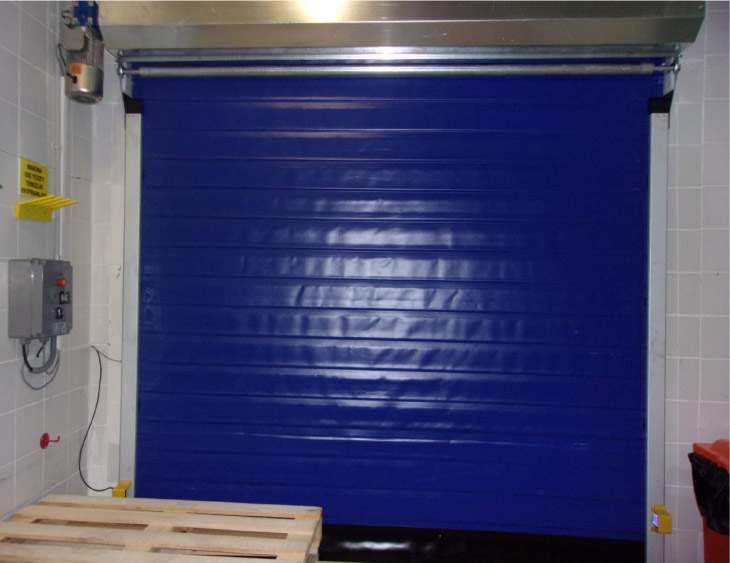

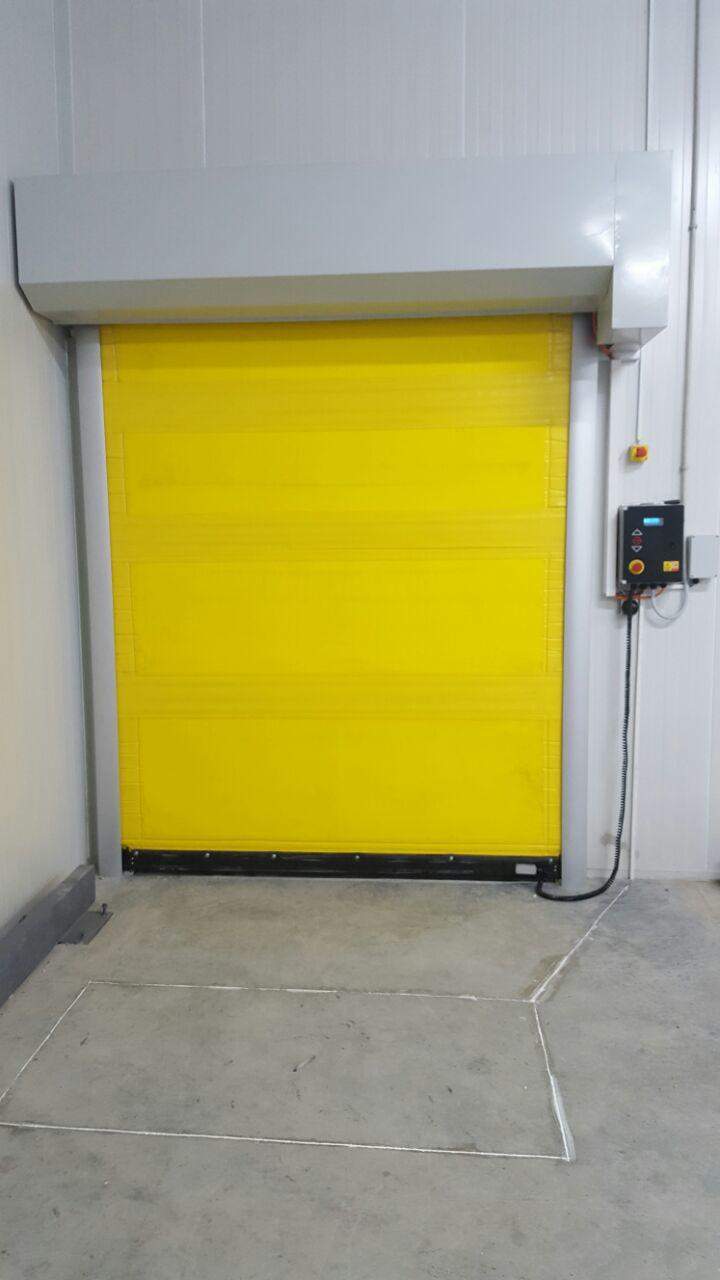

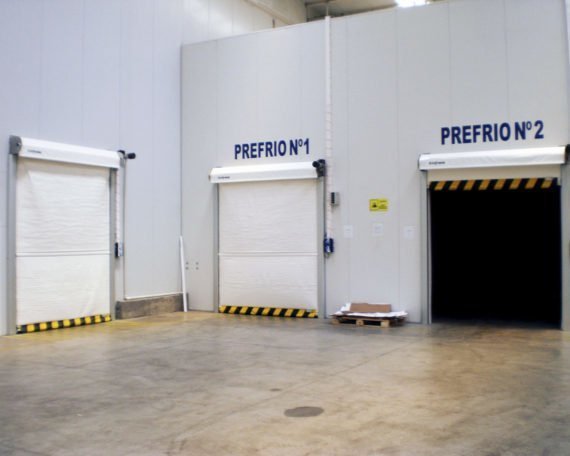

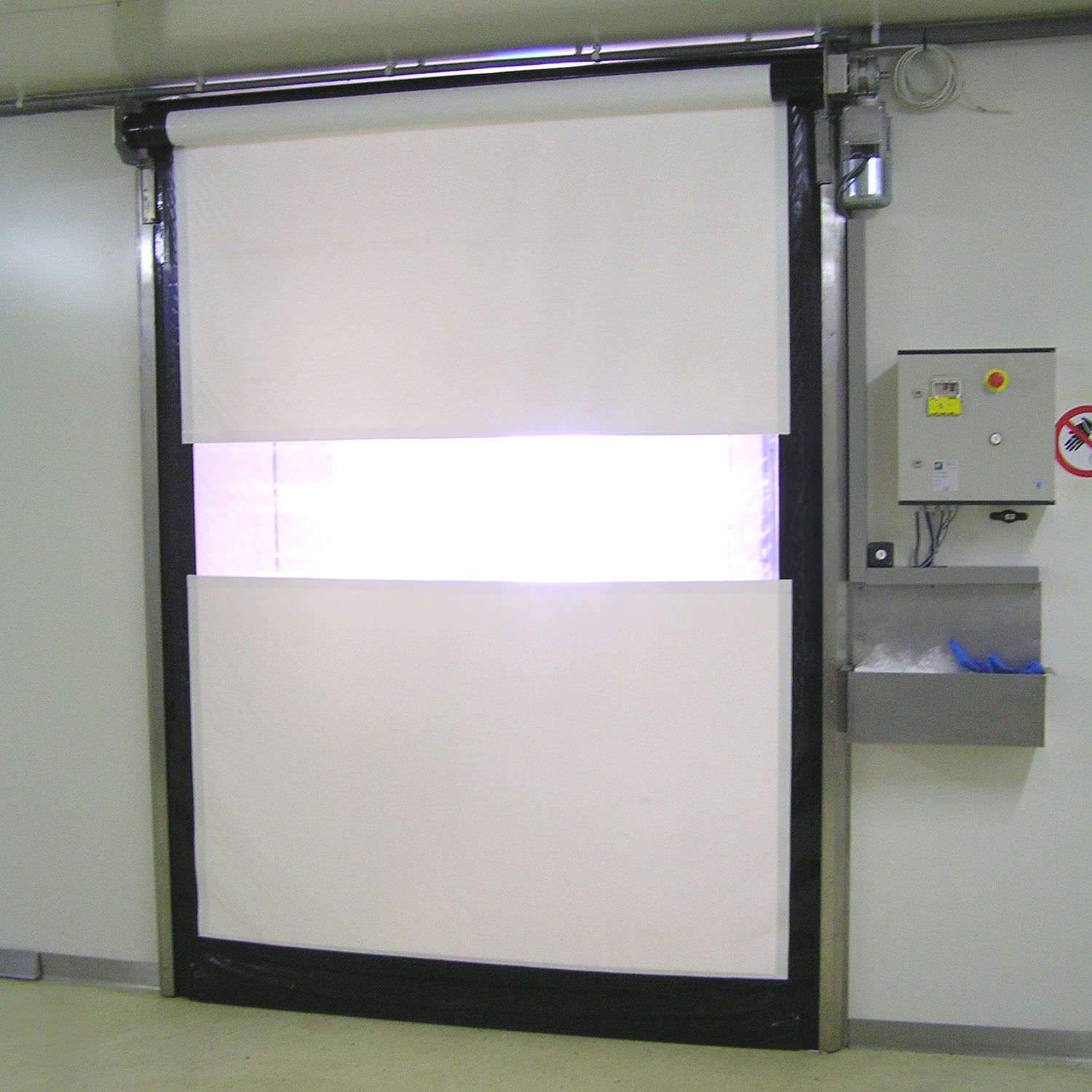

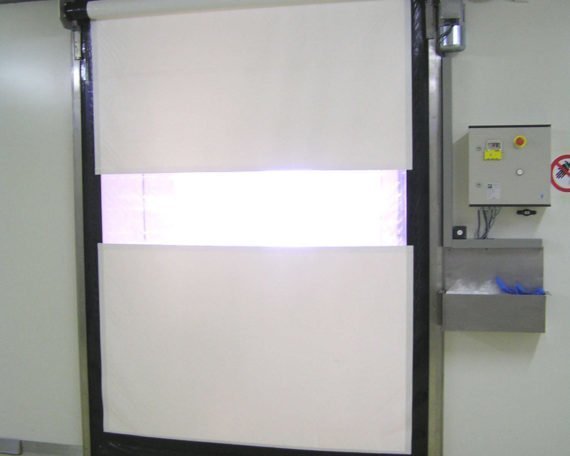

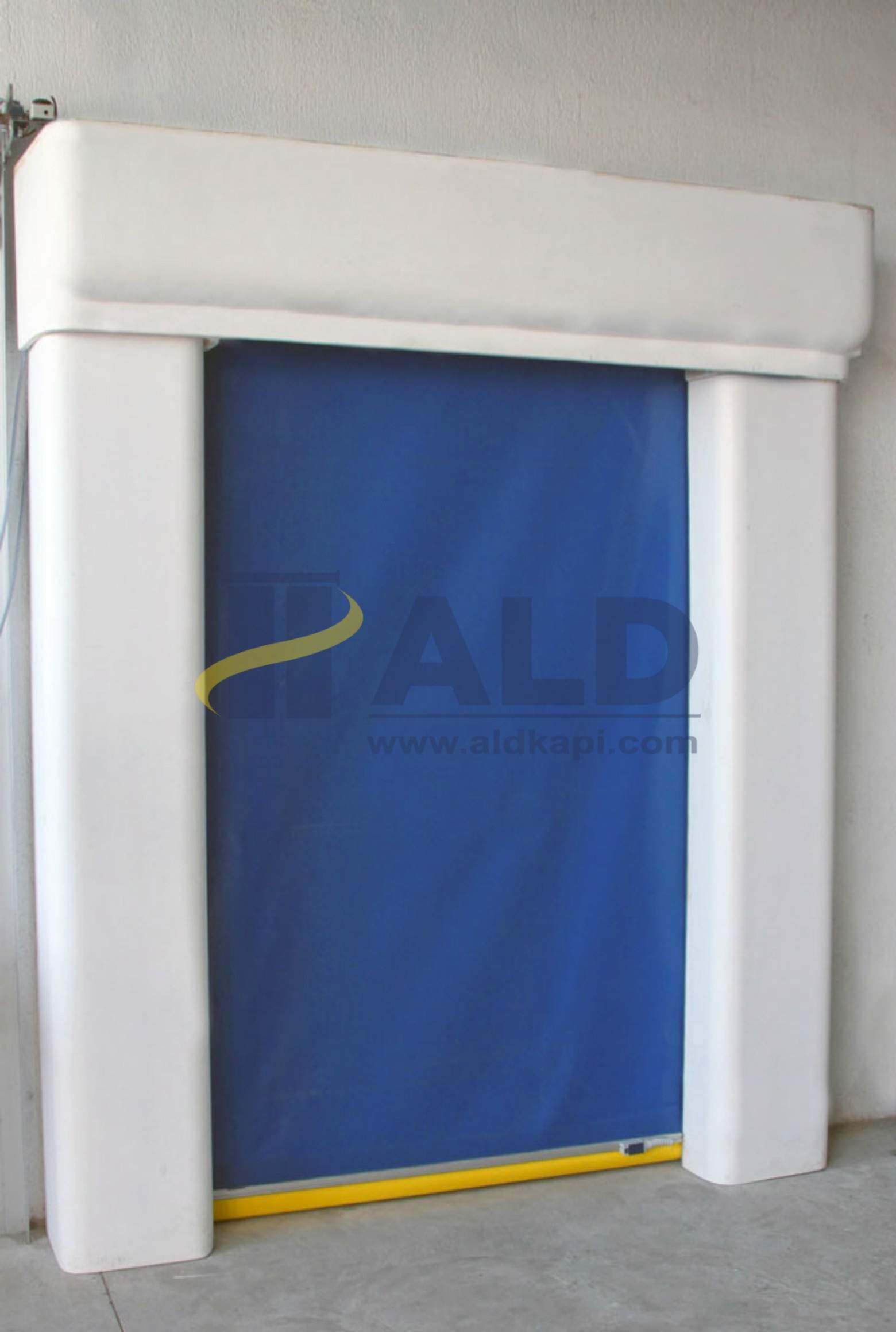

High Speed PVC Insulated Cold Room Doors

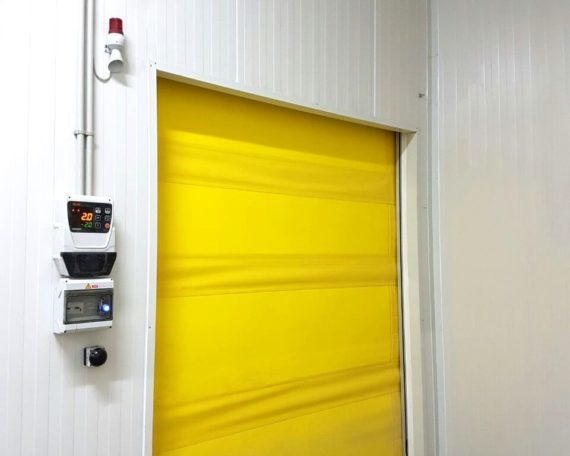

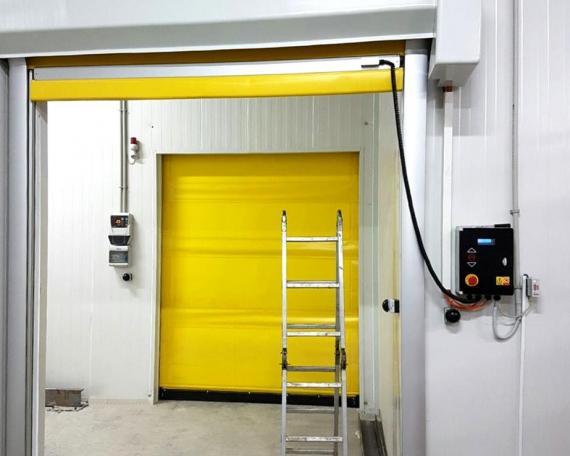

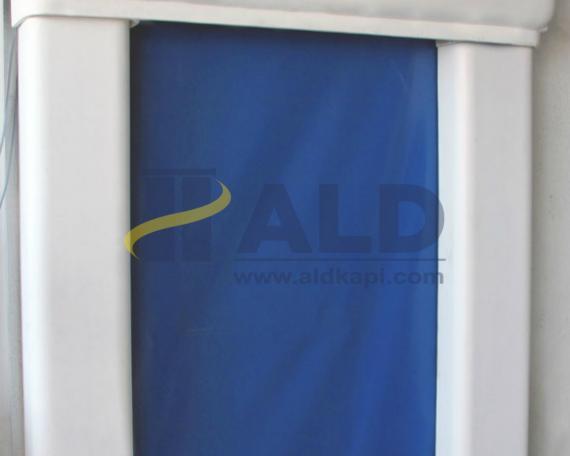

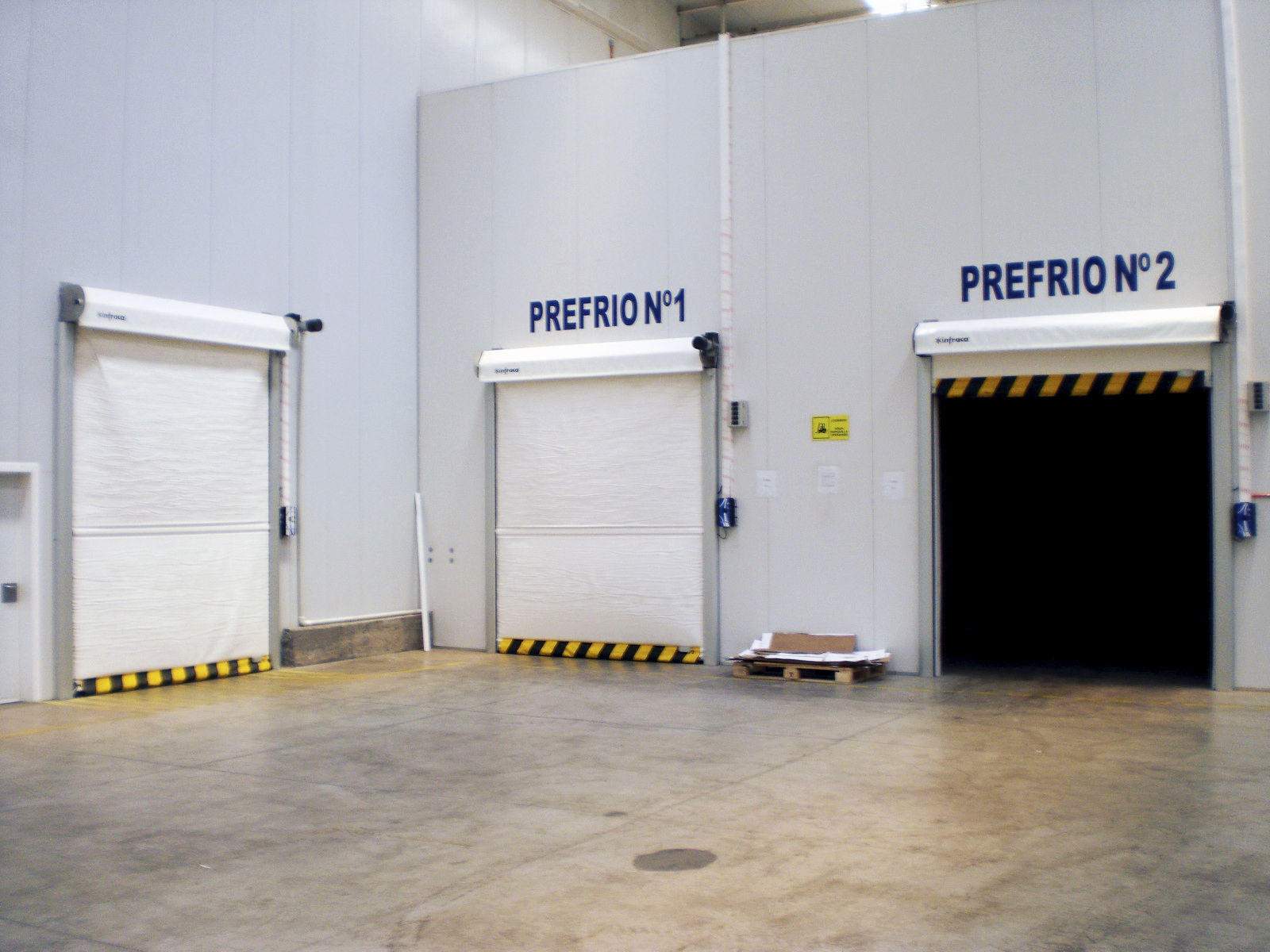

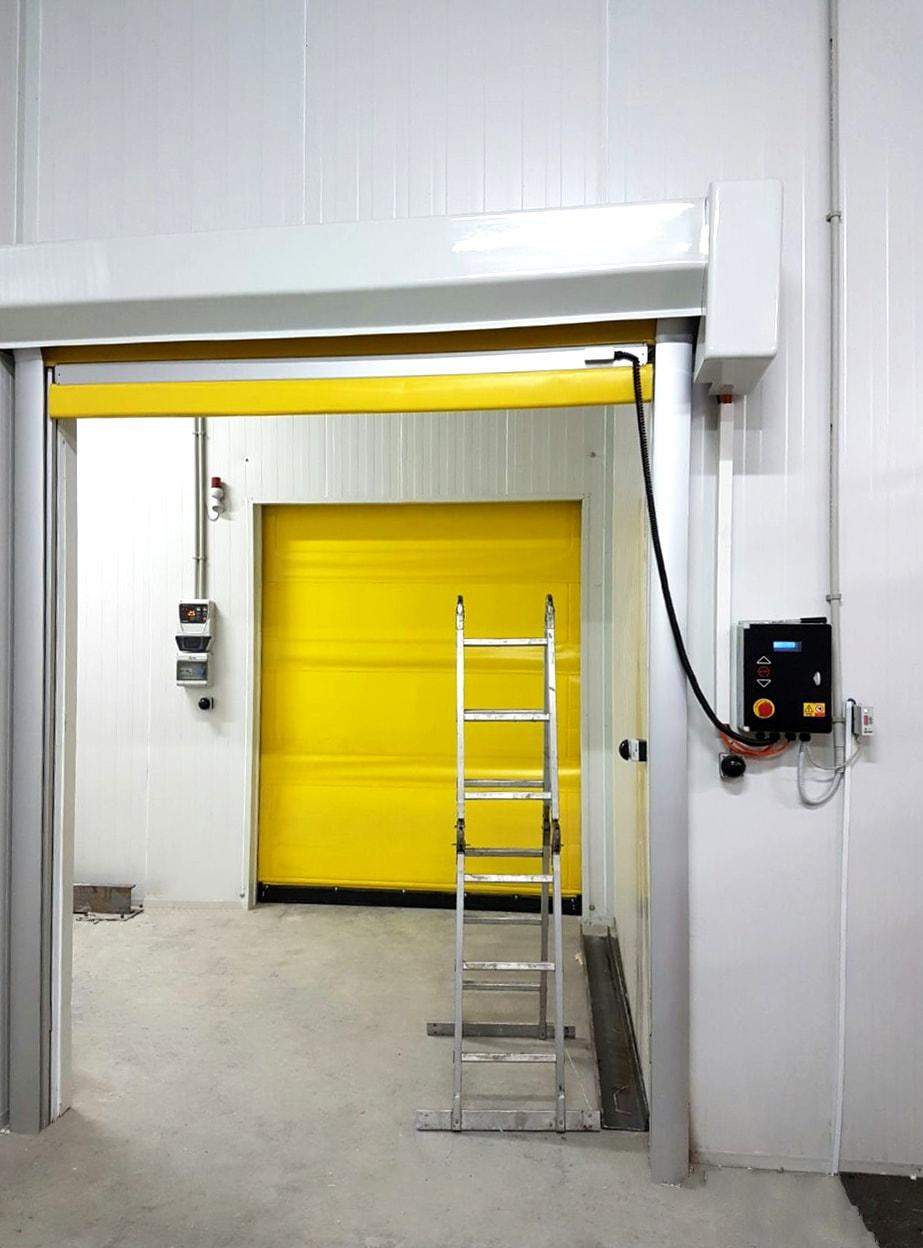

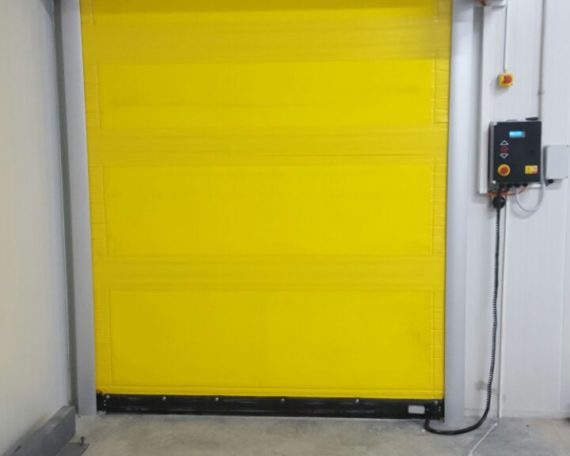

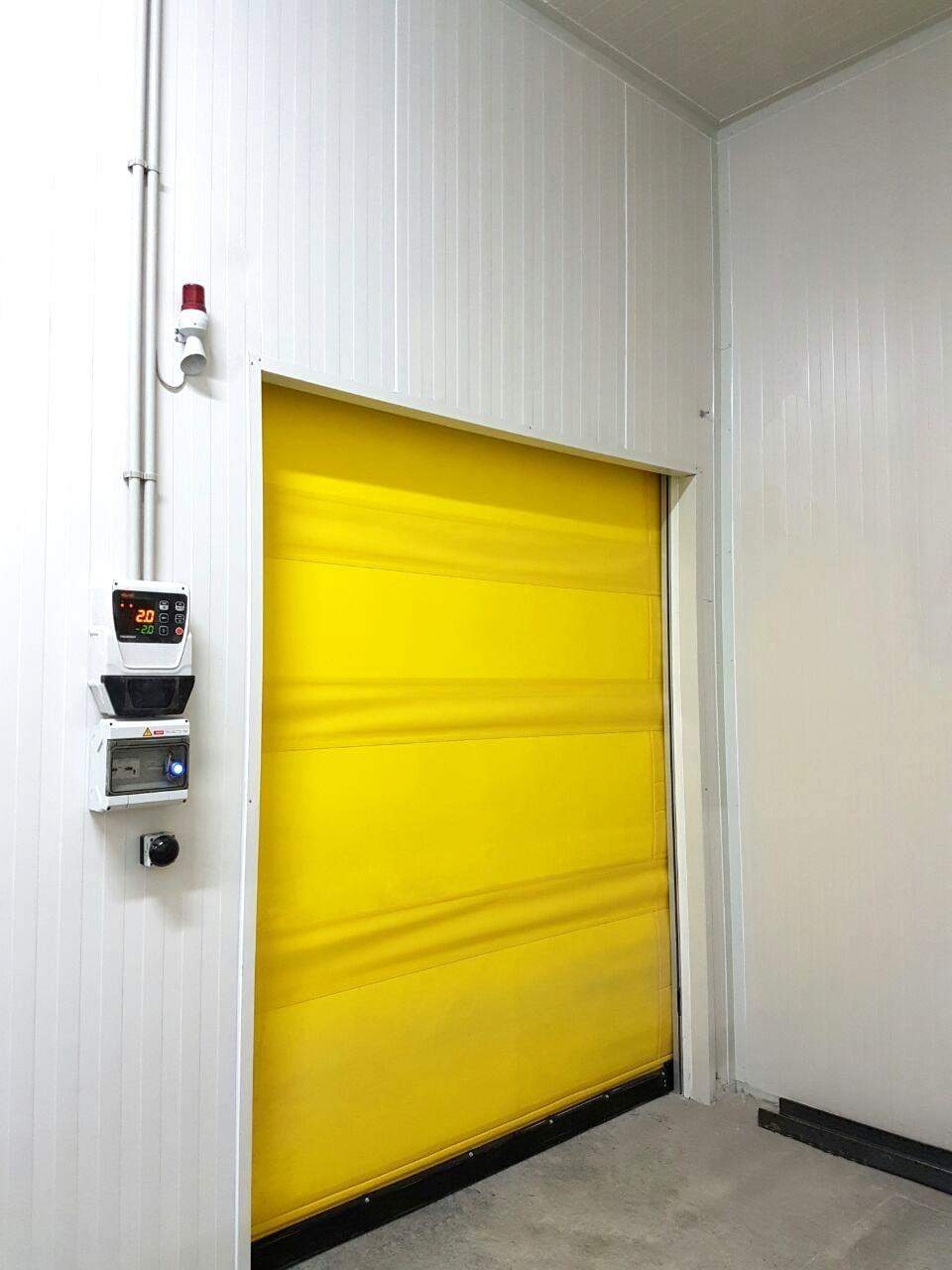

ALD Iso Doors are a perfect solution where cold storage with negative temperatures to as low as 20  C  is  required.The curtain is made of reinforced PVC vinly with heated side guides.Optionally a special and innovative insulated flexible curtain is also available. High Speed Iso Doors are the solution when temperature control is critical and where forklift traffic is high.

Advantages of this door

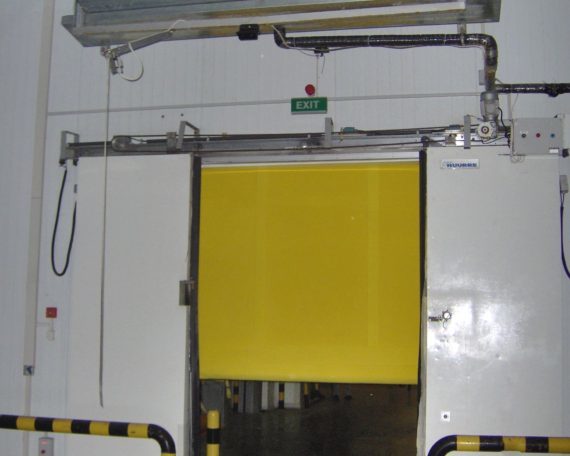

  • Your work efficiency will increase thanks to the door (1.0 m / sec) instead of the standard side sliding door (0.2 m / sec). You will be able to carry 100 pallets at least 50% more on the ground and you will have reduced your costs and increase your profit.
  • With the automatic adjustable closing time, your door will not be open, and the possibility of the employee has not closed the door will be removed.
  • The door can also work in places with pressure without the hassle of hidden wind bars.

Technical Details

hız Speed Standard Speed ​​
Opening Speed ​​1 m/s
Closing Speed 0,40 m/s
rüzgar Resistance to Wind Load Tarpaulin filled 60 km/h
branda Pvc Mehlar, Sioline, Heytex (ithal) 900 gr / m2
With tarpaulin thickness insulation 12 mm
acil açma Emergency Trip Manual operating handle
Optional: Automatic door opening function via UPS against power failure via uninterruptible power supply
metal aksam Metal Parts The winding box and flag are 1311 quality galvanized steel. Drum and guides are aluminum.
otomasyon Automation Fast Engine Set 0,75 - 2,2 KW
Brake (Enarc ENR 02 ) 80 -90 - 100 TIP
Switchgears ABB
HD99 DOOR CONTROL PLC
Special ALD Switch System 35-50 Type
Pepperl fuchs safety photocell
