SECTIONAL DOORS
Our industrial Sectional Doors are the perfect solution for commercial and production facilities. They have heavy duty design and can be adapted to any existing structure.
Special Technologies ensure the doors have a long service life and operate without faults. The doors have special structural elements which increase their reliability and durability.
Our industrial doors are produced with latest Technologies in the production, which means they have excellent performance and technical characteristics.
A reliable seal system in industrial doors ensures increased thermal insulation. Our doors help to maintain temperature control and reduce heating costs,especially in winter.
Sectional Door Models

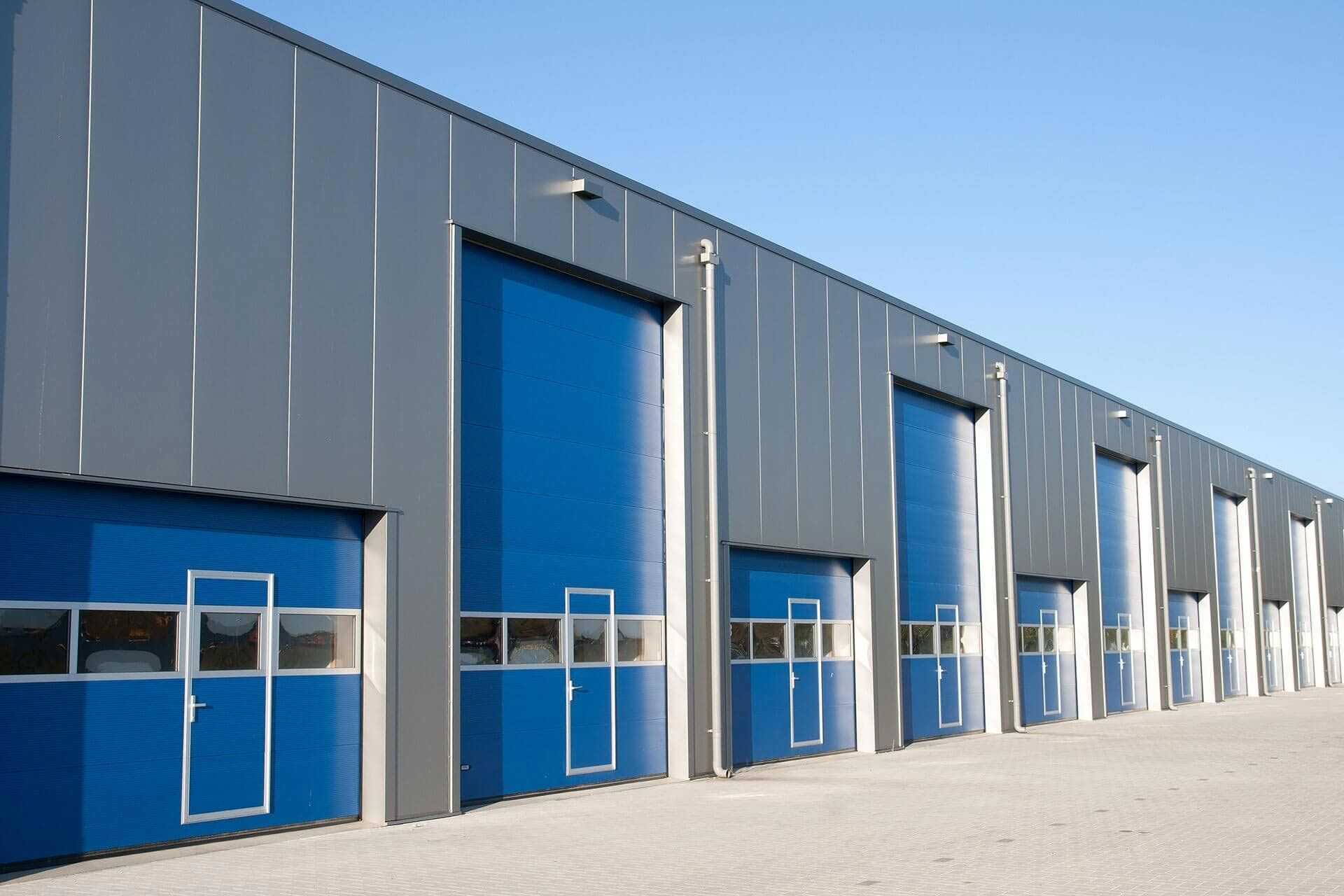

Industrial Sectional Doors
Industrial Sectional door; It is designed for factory, warehouse and parking lot entrances. Sectional doors are also used at material and vehicle entry and exit points.

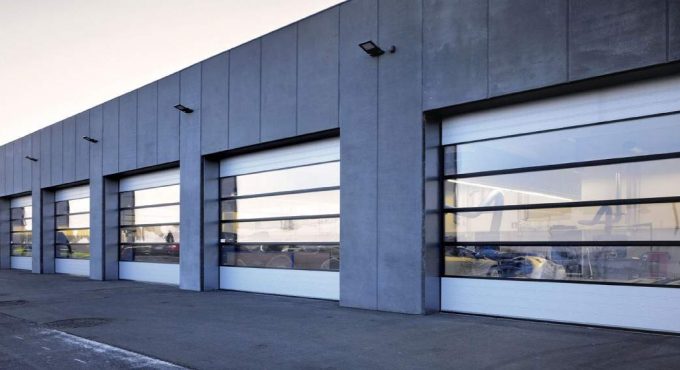

Full Vision Sectional Door
Full vision sectional doors designed for structures where appearance is prioritized (such as showrooms) consist of aluminum profiles of 40 cm thickness, specially produced for the system.

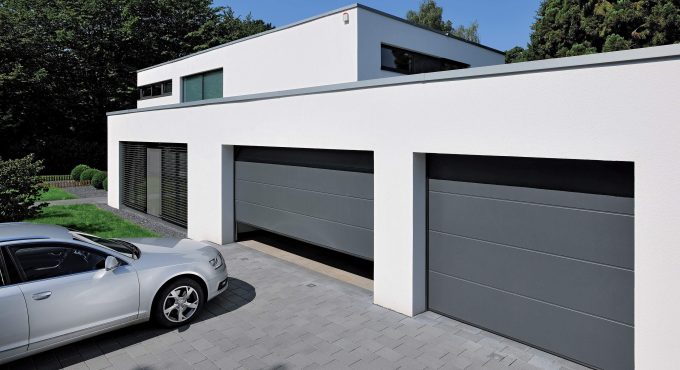

Sectional Garage Door
Garage Door is generally preferred in buildings with closed garages such as estates, villas, public institutions and shopping centers for ease of use and security.
Sectional Door Systems
Sectional door systems are designed for factory, warehouse and parking lot entrances. It is also used at material and vehicle entry and exit points. Our sectional doors, produced from sandwich panels filled with steel polyurethane, provide the highest level of security and energy savings. Sectional doors, which can also be manufactured using transparent plexiglass, are preferred in showrooms and service entrances thanks to the transparency they provide.
Industrial sectional doors are the most suitable door system that prioritizes isolation in loading and unloading works that require medium speed in your facility.
It is extremely durable and long-lasting with polyurethane-filled, steel or optional aluminum-coated panels on the outside.
Sectional doors with increased insulation with rubber wicks are highly impermeable.
Sectional doors with a standard speed (0.25 m/second) have a very solid body and provide maximum security.
With its sectional door systems, level-adjustable ramps and truck-bed compression loading bellows, it ensures trouble-free and safe loading and unloading in businesses.
With its panels designed in special profiles and dimensions that look exactly like the facade panel, its sealing and insulation properties are extremely strong.
With its mechanical design with spring balancing system, it can be easily lifted manually in the manual position. Sectional doors that can be moved with motor automation systems can also be easily opened and closed with specially designed manual chain hoist systems.
In the sectional doors that move with the automation system, there is a pneumatic safety system that prevents the door and the material from being damaged in case any material remains under the door while it is closing. The pneumatic safety system senses the pressure change in the air as a result of 5 mbar pressure sensitivity and the flexing of the lower wick, and the door comes to the open position again.
Industrial sectional doors also have rope break and spring break safety systems. This equipment provides maximum usage safety at the door.

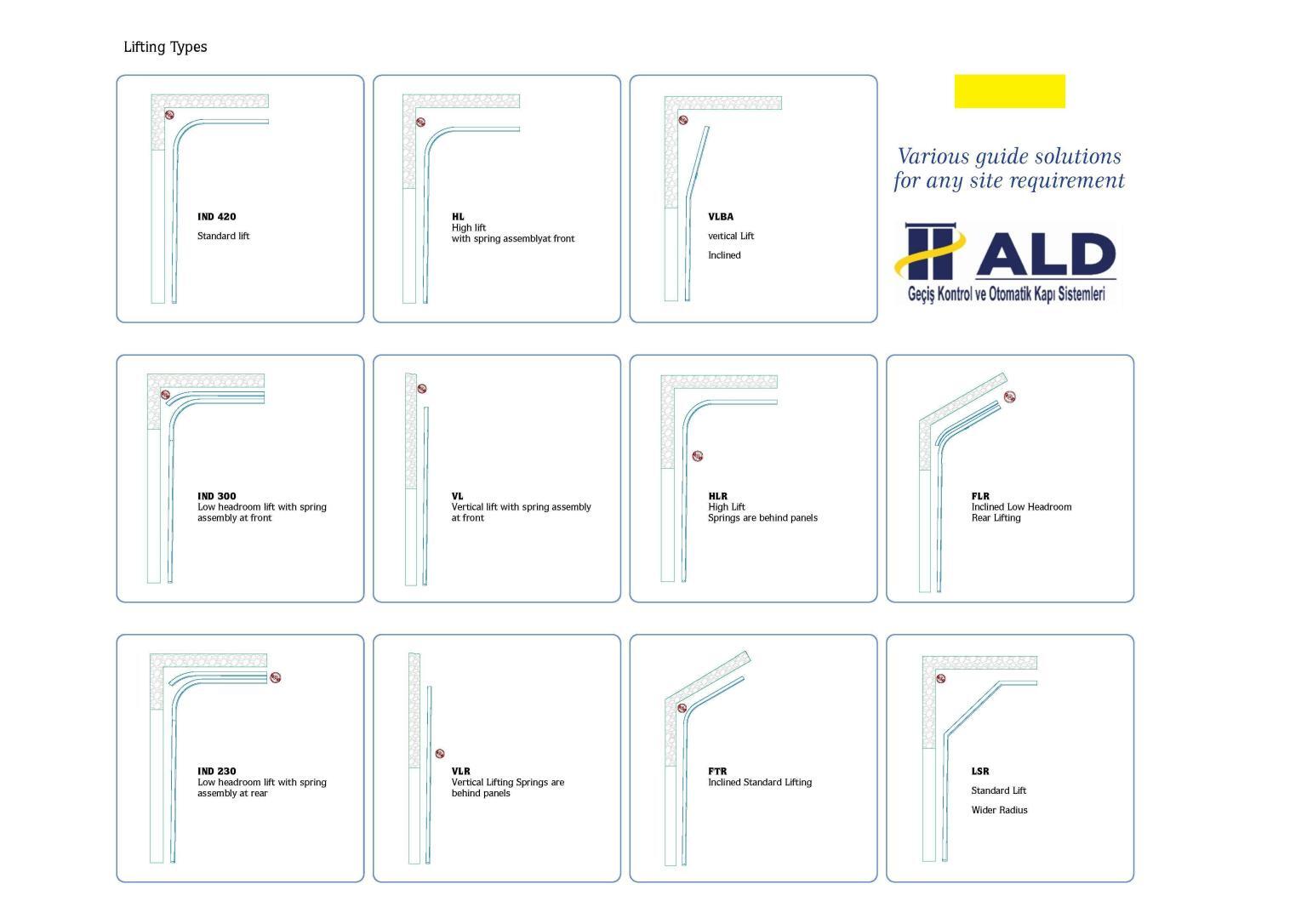

Sectional Door Lifting Types
The sectional door, sliding towards the ceiling, provides a more efficient use of the indoor usage areas and allows the door opening to be used more clearly.
The sectional door works by sliding in the side rails by making the most appropriate use of the space between the ceiling height and the upper level of the door. The door can be mounted in different ways in accordance with the distance of this gap. It can be applied with standard, low, high and guillotine bearing options.
Where is Sectional Door Used?
- Since its usage area and function is as widespread as possible, businesses are also versatile doors.
- First of all, it prevents air flow.Sectional doors are quite fast.
- It prevents sound and noise pollution.
- It prevents moisture and air pollution.
- It is also safe and offers a clear field of view.
- It is very easy to shape according to the characteristics and size of the building.
- Moreover, it is a durable door with a long life.
- Purifying your business from the noise pollution of the city or industry increases your work efficiency.
- Sectional door contributes to sound insulation. It also prevents the noise generated in your business from turning into pollution that will disturb people outside.
- production facilities
- Factories
- Warehouses
- garages
- Private property and residences
- Parking lots
- car dealerships
- car wash businesses
- workshops
- Exhibition and fairgrounds
- Goods reception areas of shopping centers
Sectional Door Prices
The price of the sectional door varies according to the width and height dimensions, various features, and the desired accessory. It would not be correct to make m² pricing in the sectional door pricing section. As the size gets bigger or smaller, the accessories used increase accordingly and the price increases or decreases proportionally. Sectional doors are a product that can be produced in accordance with architectural designs. For this reason, the beam size also affects the price significantly.
Why Sectional Door?
- It is easy to assemble,
- Heat and Sound Insulation is high,
- It works without noise,
- It opens and closes with little effort,
- Opening the door does not save space,
- It provides the opportunity to work in accordance with the structure of the building,
- The net opening of the door is fully used,
- Components and parts change easily,
- The working environment is illuminated by opening the window systems,
- By attaching the service door to the panel door, personnel entry and exit are provided.
Sectional Door Service Door
Seksiyonel Kapı Servis Kapısı
In doors with a large sectional door width, a part of the door can be divided with fixed panels in order to regulate the pedestrian traffic. A personnel passage door can be placed inside these fixed panels. In cases where the width is not large, the personnel passage door can be opened on the movable panels of the door. In this alternative, the industrial door and the personnel door are opened and closed as a whole. In cases where the service door is open, the engine will never be activated and will prevent your door from getting stuck.
Standard service door with threshold, threshold height is 20 cm. It is very easy to pass by step.
It is preferred in areas where usage is not very intense.
The low threshold service door allows wheeled vehicles to pass easily.
The bottom is 0.9 cm and the top is 2.6 cm high.
Panel Types and features for Garage Door and Industrial Door
You can find sectional door panels in many different models and colors to be used in our Industrial Door and Garage Door products. Thanks to our sandwich panels, which are fully compatible with your facility and structure, your doors have a modern appearance.
The 615 or 495 mm panels that make up the door are connected to each other with panel color electrostatic painted steel, aluminum or stainless steel hinges.
Panels with a thickness of 40 mm and a thermal coefficient of 0.78 W/m2K are composed of two steel, aluminum or stainless steel plates filled with polyurethane foam with a density of 40 kg/m3.
There are strong steel plates inside the panel that increase the wind resistance. The wind resistance of our panels is 80 km/h.
Thanks to EPDM gaskets, high insulation is provided on the sides, bottom and top, against rain and wind.
Sectional door systems in standard white color (inside-outside RAL 9002), panels can also be applied in different RAL colors in accordance with the building exterior.
The sheet metal plates on the front and rear surfaces of the sectional door panels are firmly joined to each other in four layers. On the door panels, windows consisting of double-walled acrylic glass can be opened in desired rows for lighting purposes.
WHITE - RIBBED
- Exterior Color: White – Ral 9002
- Inner Color: White – Ral 9002
- Model: Ribbed – Lined
- Thickness: 40 mm
- Density: 48-50 Kg / m³
- Panel Height: 500 mm and 610 mm
- EPDM sealing gasket between panels
- Finger safe protection
- Top and bottom painted steel plate sheet
- Sheets are interlocked in four layers
- CFC Free polyurethane
- Wooden pattern embossing
WHITE - MICRORIB
- Exterior Color: White – Ral 9002
- Inner Color: White – Ral 9002
- Model: MicroRib
- Thickness: 40 mm
- Density: 48-50 Kg / m³
- Panel Height: 500 mm and 610 mm
- EPDM sealing gasket between panels
- Finger safe protection
- Top and bottom painted steel plate sheet
- Sheets are interlocked in four layers
- CFC Free polyurethane
- Wooden pattern embossing
RED - MICRORIB
- Exterior Color: Red – Ral 3000
- Inner Color: White – Ral 9002
- Model: MicroRib
- Thickness: 40 mm
- Density: 48-50 Kg / m³
- Panel Height: 500 mm and 610 mm
- EPDM sealing gasket between panels
- Finger safe protection
- Top and bottom painted steel plate sheet
- Sheets are interlocked in four layers
- CFC Free polyurethane
- Wooden pattern embossing
ANTHRACITE GREY - FLAT WRINKLE
- Exterior Color: Ant. Grey – Wrinkle Ral 7016
- Inner Color: White – Ral 9002
- Model: Flat – Middle Rib
- Thickness: 40 mm
- Density: 48-50 Kg / m³
- Panel Height: 500 mm and 610 mm
- EPDM sealing gasket between panels
- Finger safe protection
- Top and bottom painted steel plate sheet
- Sheets are interlocked in four layers
- CFC Free polyurethane
ANTHRACITE GREY - MIDDLE RIB WRİNKLE
- Exterior Color: Ant. Grey – Wrinkle Ral 7016
- Inner Color: White – Ral 9002
- Model: Flat – Middle Rib
- Thickness: 40 mm
- Density: 48-50 Kg / m³
- Panel Height: 500 mm and 610 mm
- EPDM sealing gasket between panels
- Finger safe protection
- Top and bottom painted steel plate sheet
- Sheets are interlocked in four layers
- CFC Free polyurethane
WOODEN DESIGN - RIBBED
- Exterior Color: Wooden Design
- Inner Color: White – Ral 9002
- Model: Ribbed
- Thickness: 40 mm
- Density: 48-50 Kg / m³
- Panel Height: 500 mm and 610 mm
- EPDM sealing gasket between panels
- Finger safe protection
- Top and bottom painted steel plate sheet
- Sheets are interlocked in four layers
- CFC Free polyurethane
- Wooden pattern embossing
WOODEN DESIGN - CASSETTE
- Exterior Color: Wooden Design
- Inner Color: White – Ral 9002
- Model: Cassette
- Thickness: 40 mm
- Density: 48-50 Kg / m³
- Panel Height: 500 mm and 610 mm
- EPDM sealing gasket between panels
- Finger safe protection
- Top and bottom painted steel plate sheet
- Sheets are interlocked in four layers
- CFC Free polyurethane
- Wooden pattern embossing
WHITE - CASSETTE
- Exterior Color: White – Ral 9002
- Inner Color: White – Ral 9002
- Model: Cassette
- Thickness: 40 mm
- Density: 48-50 Kg / m³
- Panel Height: 500 mm and 610 mm
- EPDM sealing gasket between panels
- Finger safe protection
- Top and bottom painted steel plate sheet
- Sheets are interlocked in four layers
- CFC Free polyurethane
- Wooden pattern embossing
WHITE - MIDDLE RIB WRİNKLE
- Exterior Color: White – Wrinkle Ral 9016
- Inner Color: White – Ral 9002
- Model: Flat – Middle Rib
- Thickness: 40 mm
- Density: 48-50 Kg / m³
- Panel Height: 500 mm and 610 mm
- EPDM sealing gasket between panels
- Finger safe protection
- Top and bottom painted steel plate sheet
- Sheets are interlocked in four layers
- CFC Free polyurethane
BLUE - MICRORIB
- Exterior Color: Blue – Ral 5010
- Inner Color: White – Ral 9002
- Model: MicroRib
- Thickness: 40 mm
- Density: 48-50 Kg / m³
- Panel Height: 500 mm and 610 mm
- EPDM sealing gasket between panels
- Finger safe protection
- Top and bottom painted steel plate sheet
- Sheets are interlocked in four layers
- CFC Free polyurethane
- Wooden pattern embossing
