90 Degree Automatic Door Operator

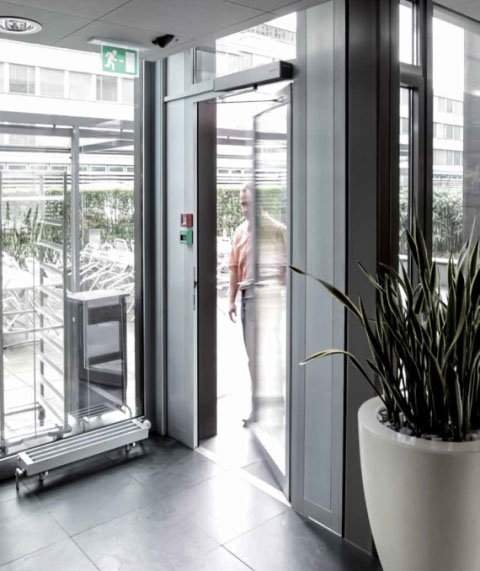

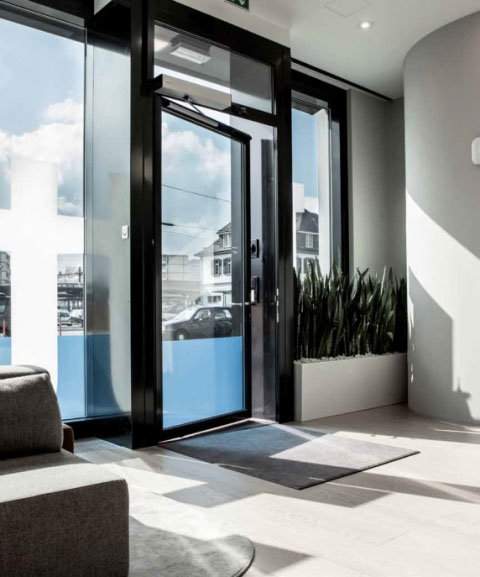

90 Degree Automatic Door Operator; 90 degree doors open and close automatically and touch-free with a hand proximity sensor. It is one of the most popular door systems preferred for business centers, petrol station WC doors, public buildings, schools, hospitals, factories and similar places. With a wide range of applications from standard room doors to 90 degree building entrance doors, the automatic 90 degree swing door system has been subjected to various tests meeting the most specific European standards, is produced with the highest quality materials and promises high performance and comfort.

The extremely quiet electromechanical automation unit also makes installation easy thanks to its compact structure and stylish stainless steel body. Allowing installation on existing doors with accessories suitable for all situations, our automatic 90 degree swing door system offers a very wide range of arms (push, pull or parallel pull arm, etc.) connecting the motor unit and the door leaf. With a wide choice of accessories, the automation can be installed wherever suitable, on the lintel, wall or frame on the opening side of the leaf or the opposite side. If there is no wall, lintel or frame of sufficient height above the door leaf, it is even easily possible to install the automation system on the leaf itself so that it moves with it.

Touch-Free Access with a 90 Degree Door Operator

90 degree automatic swing door operators allow touch-free passage with a proximity hand sensor. Thanks to touch-free access technology, it can easily be used in places where a hygienic solution is required.

Can a hand sensor and motor be fitted to my existing door?

Yes, they can. It is possible to convert your room doors and toilet/WC doors into an automatic touch-free system with a photocell sensor. With its many functions, it can be applied to various room requirements and door types. It is therefore ideal for private use as well as other applications.

Hand sensor

Hand Sensor – Proximity Photocell – Touch-free photocell: a device that works with infrared signals and acts as a switch when you bring your hand close to it. It detects an approaching hand and triggers the door. Practical and very valuable in terms of hygiene, the hand sensor (touch-free button) is widely used in places with heavy traffic where contact is avoided for hygiene reasons, such as hospitals, WC/toilet doors, office doors and gym doors. It can detect movement without contact at a distance of 5 to 50 cm and perform its function.

Hand Sensor Technical Specifications

Dimensions Height = 80 mm, Depth = 23 mm, Width = 80 mm
Operating Voltage 12-24V AC-DC
Minimum Current 40 mA
Operating Distance 0-50 cm
Operating Temperature -20 °C +55 °C
Contact Type NO (Normally Open) / NC (Normally Closed)
Max. Contact Capacity 60V DC 100mA, 42V AC 100mA

90 Degree Door Operator Application Areas

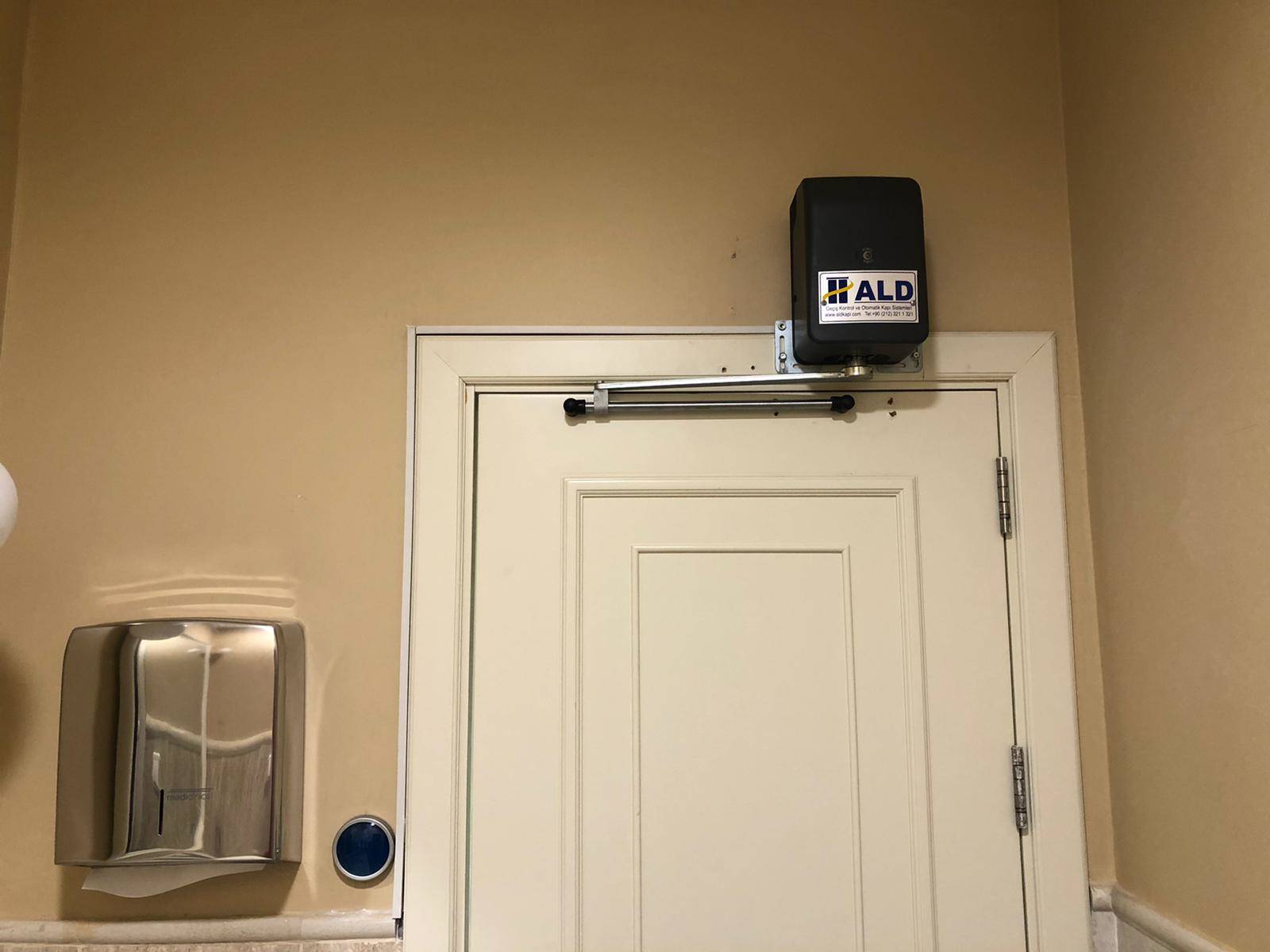

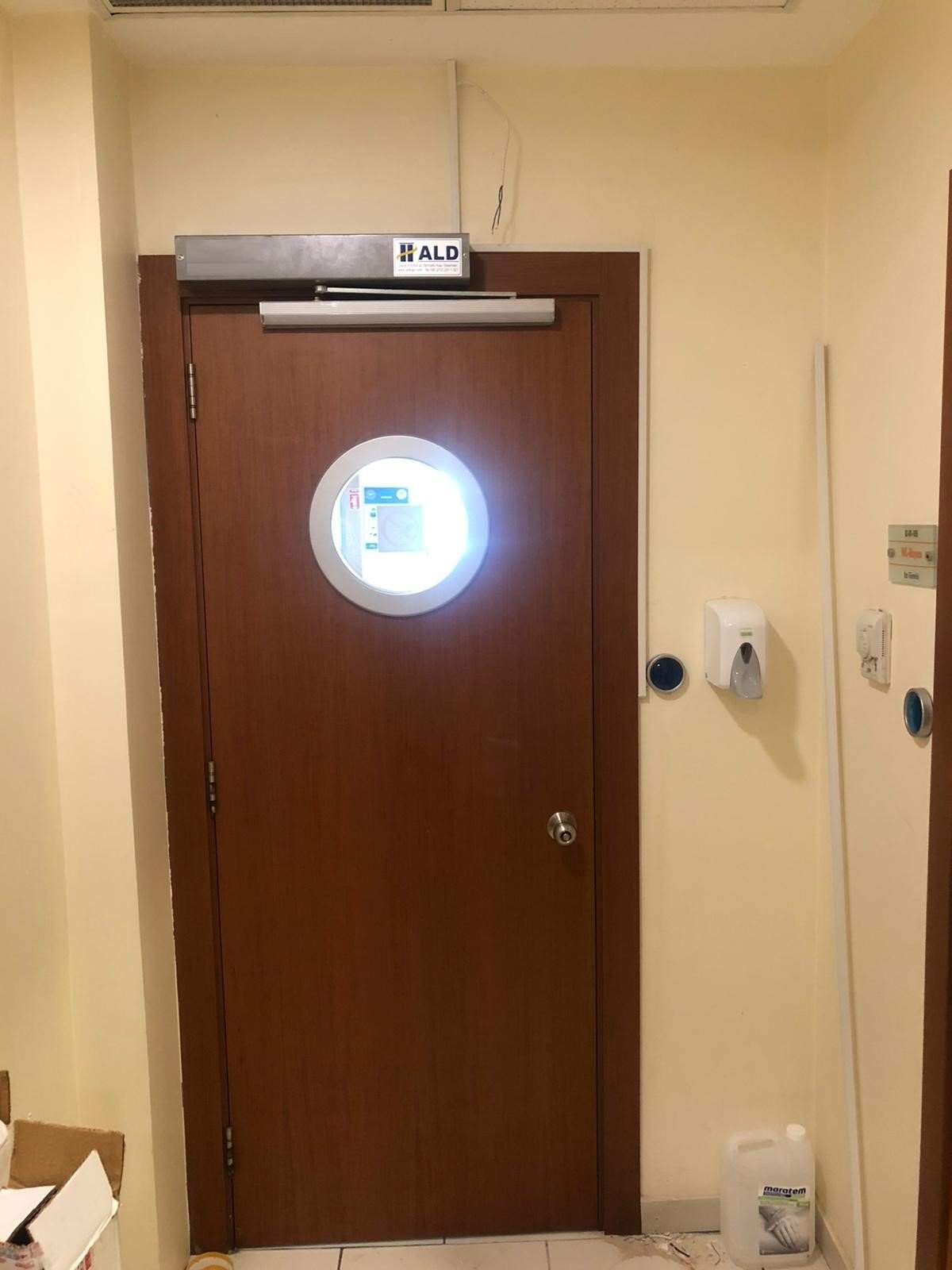

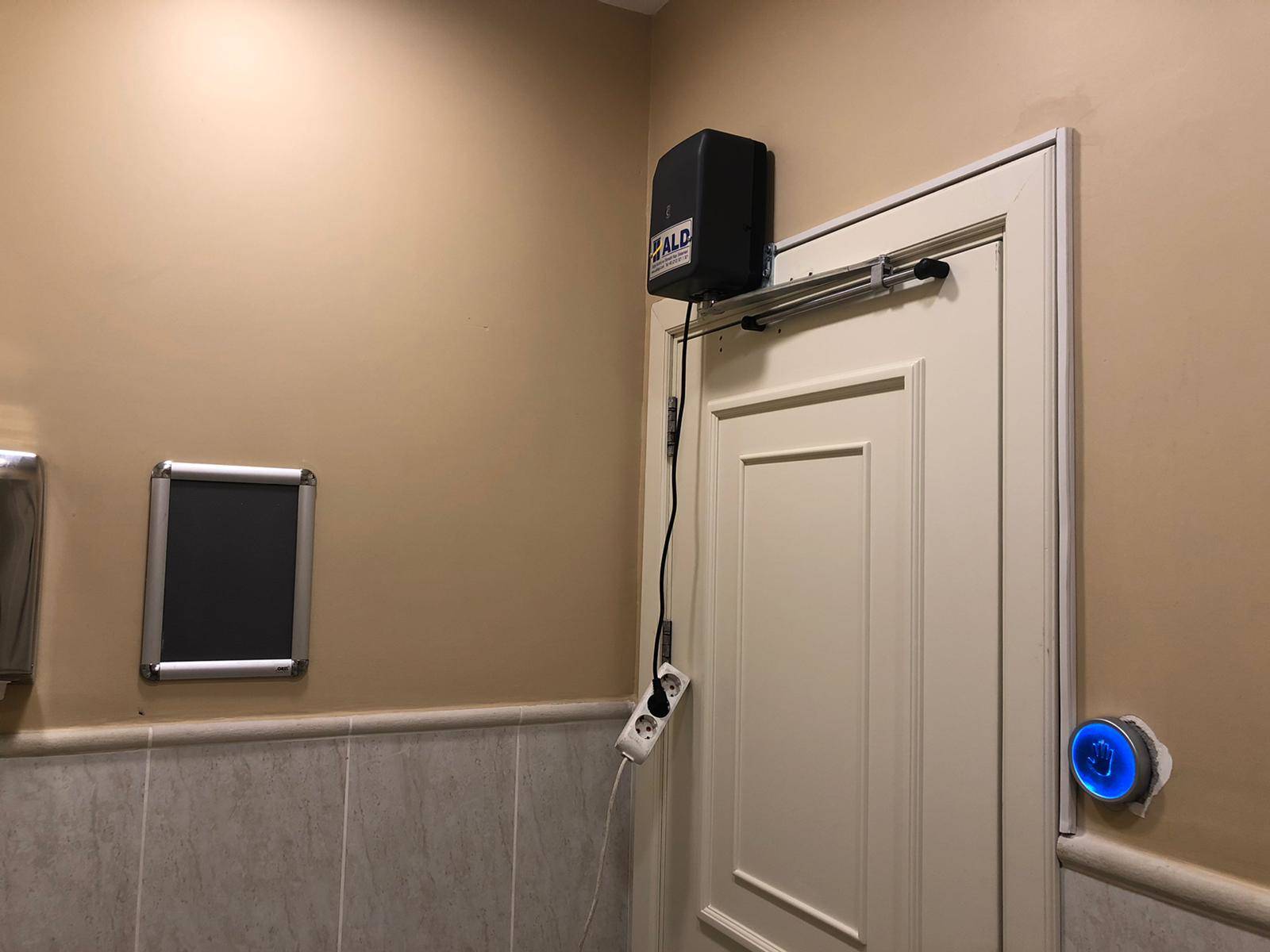

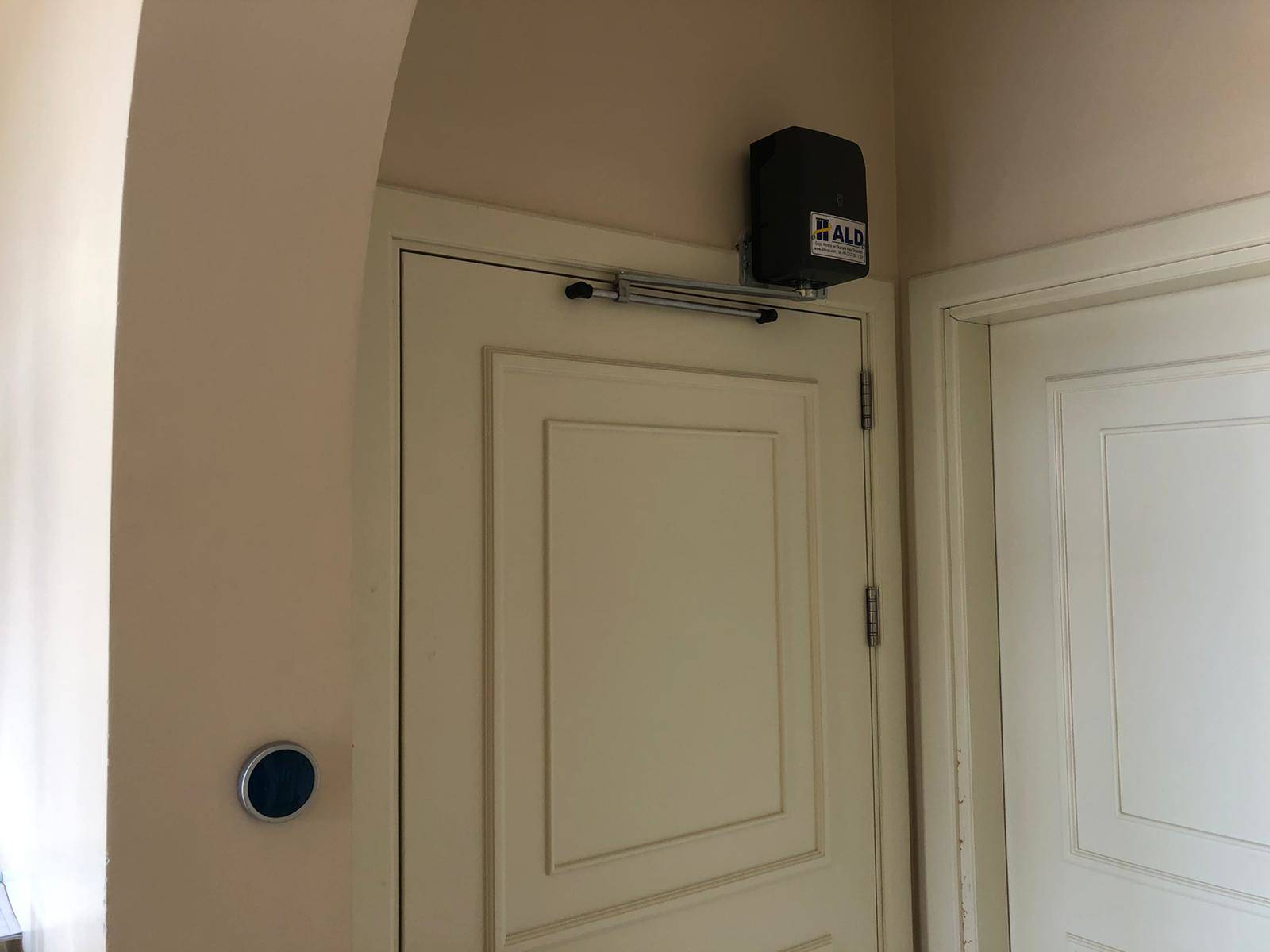

WC Door with Hand Sensor

The WC door operator with hand sensor is a small, quiet automatic swing door mechanism suitable for everyday use. The door can also be opened with a button, hand sensor, radar or remote control. These features make every place where it is used hygienic. It can easily be adapted to most doors and provides a significant gain in comfort and quality of life for people with special needs for whom doors are an obstacle. It is a new and comfortable way for doors to open effortlessly and close again safely. It ensures automatic, quiet and safe door operation. It is an ideal helper for everyone throughout the day. Other areas of use are listed below. You too can make your facility hygienic; fill out the form on our contact page to get a 90 degree door operator price .

Touch-free WC, toilet, bathroom and washroom doors

Hospital operating room doors

Petrol station WC doors

Sports center doors

Accessible WCs, hygienic doors

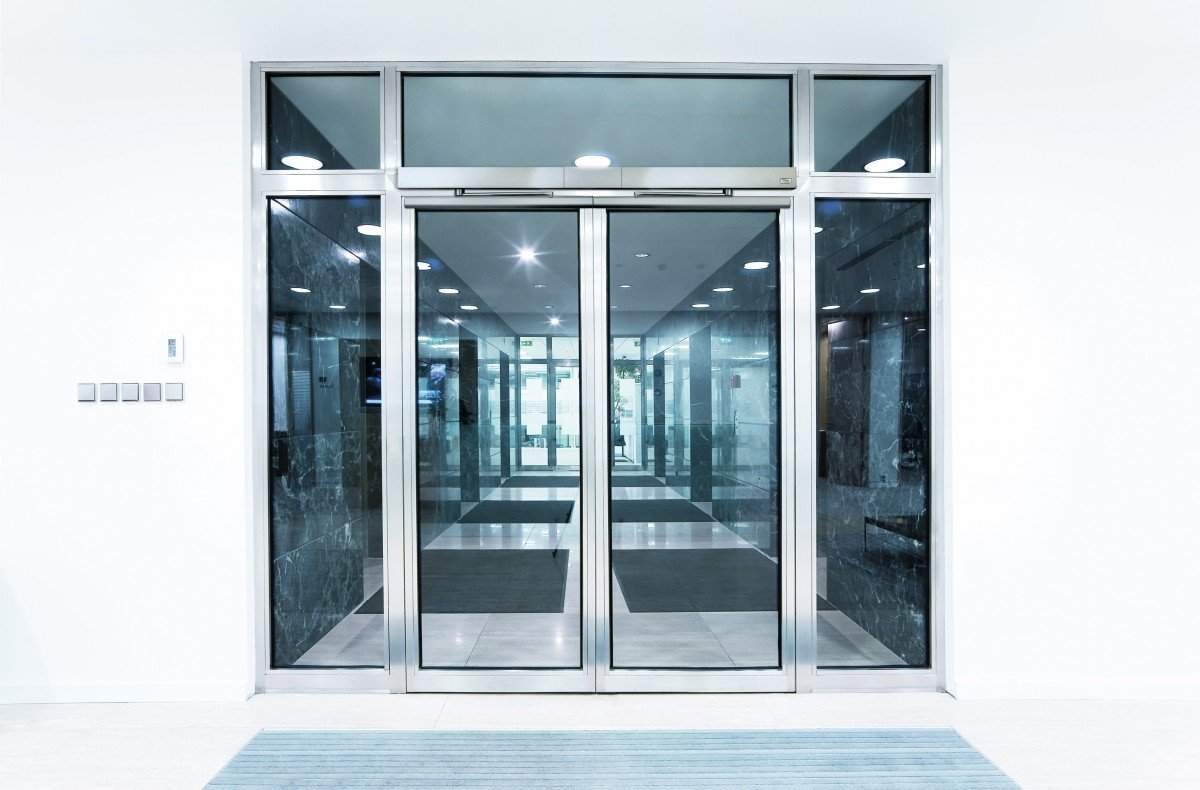

90 Degree automatic door models can be used on single-leaf doors, and also on double-leaf swing doors by synchronizing two motor units.
