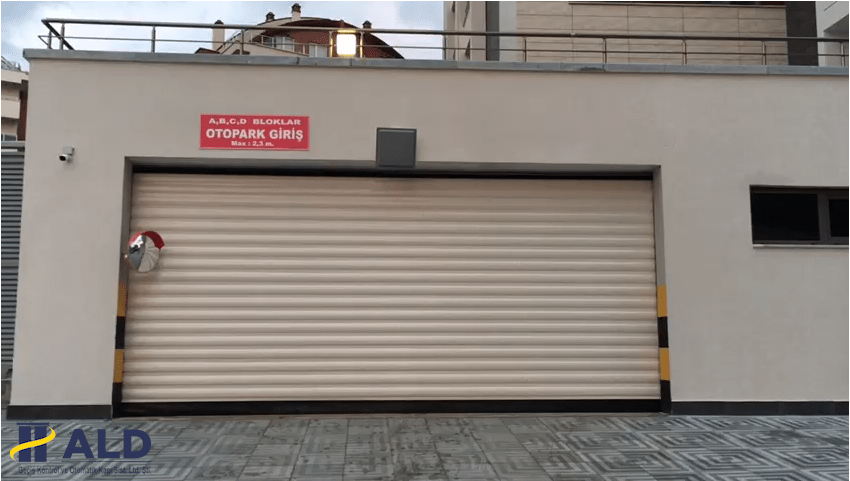

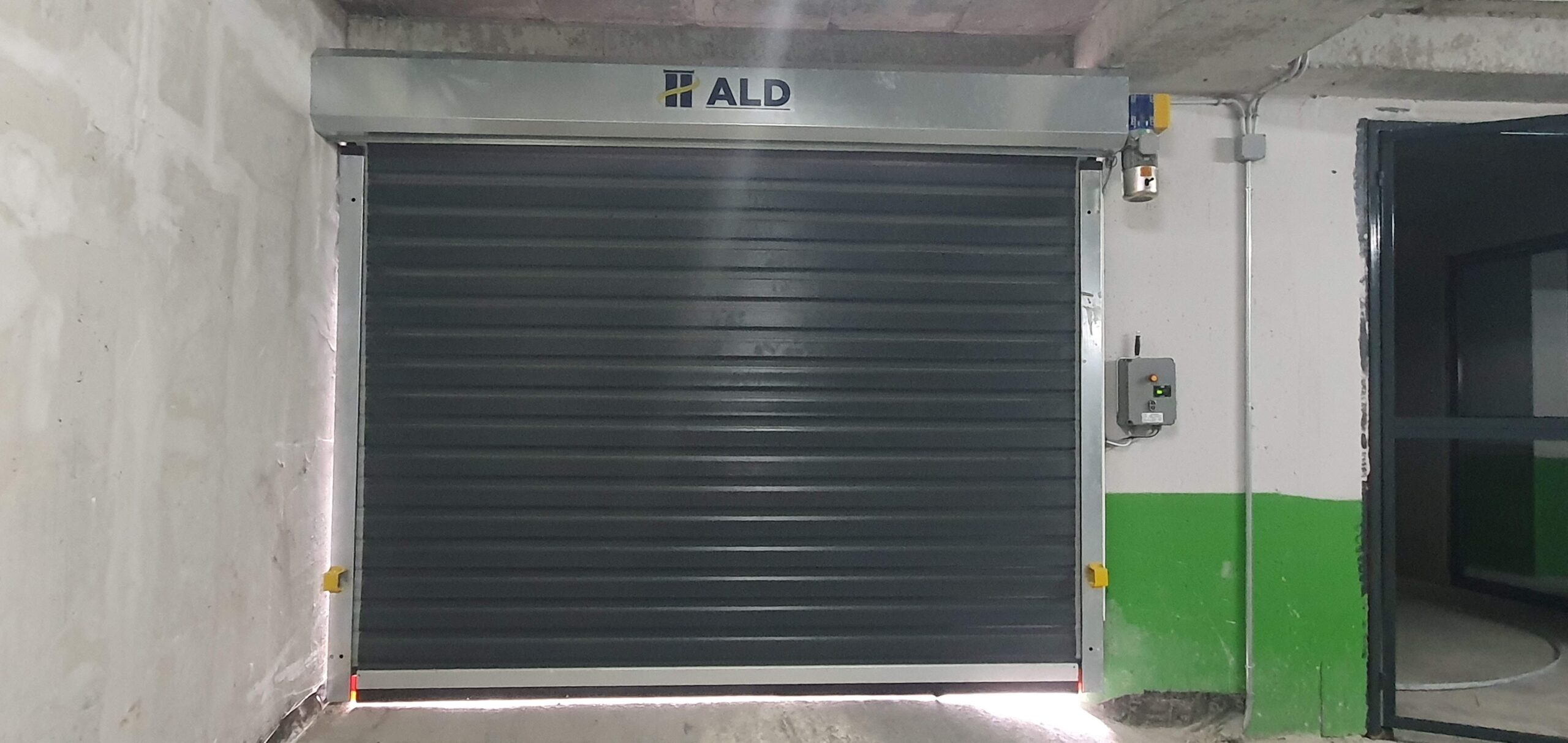

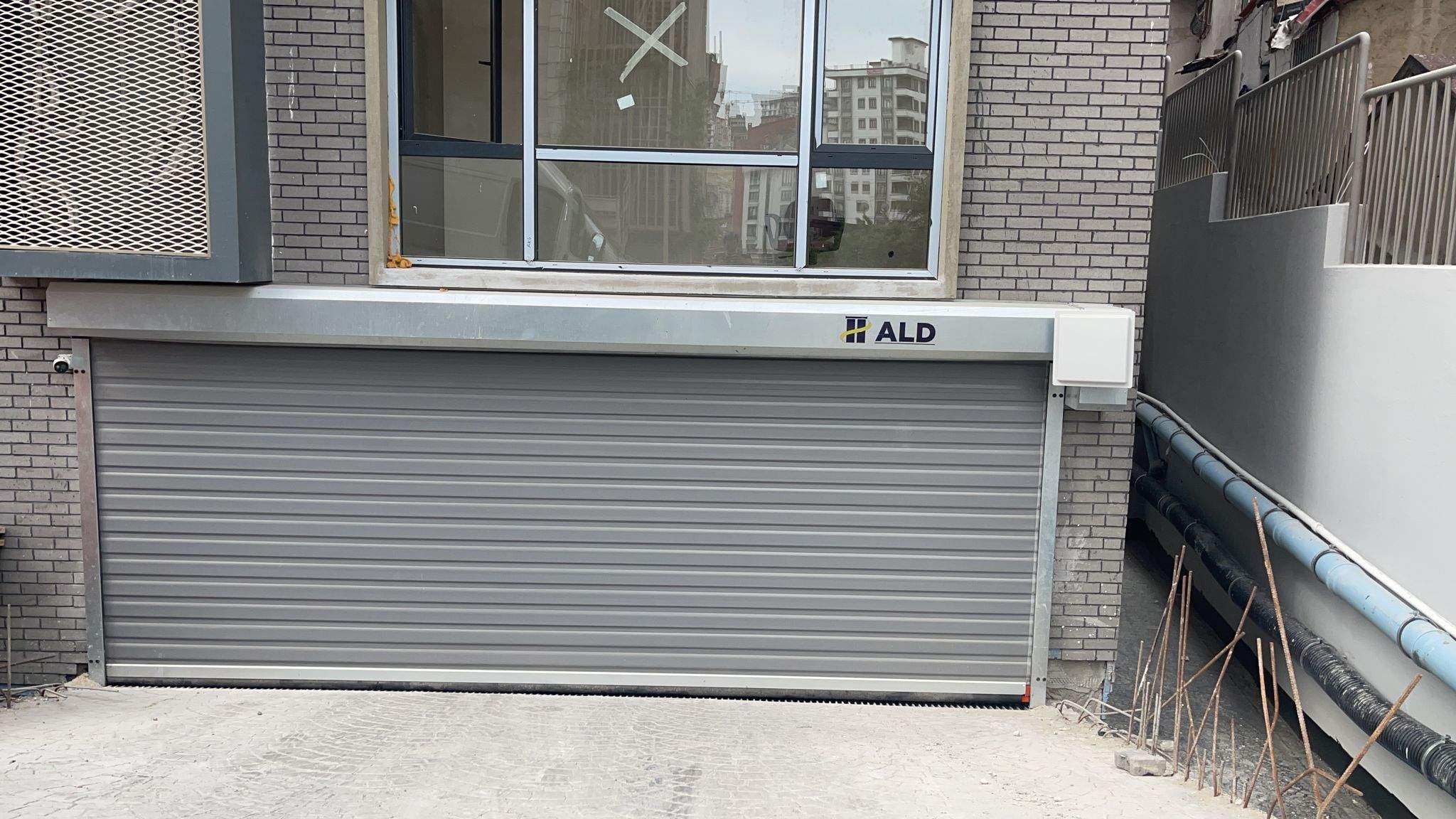

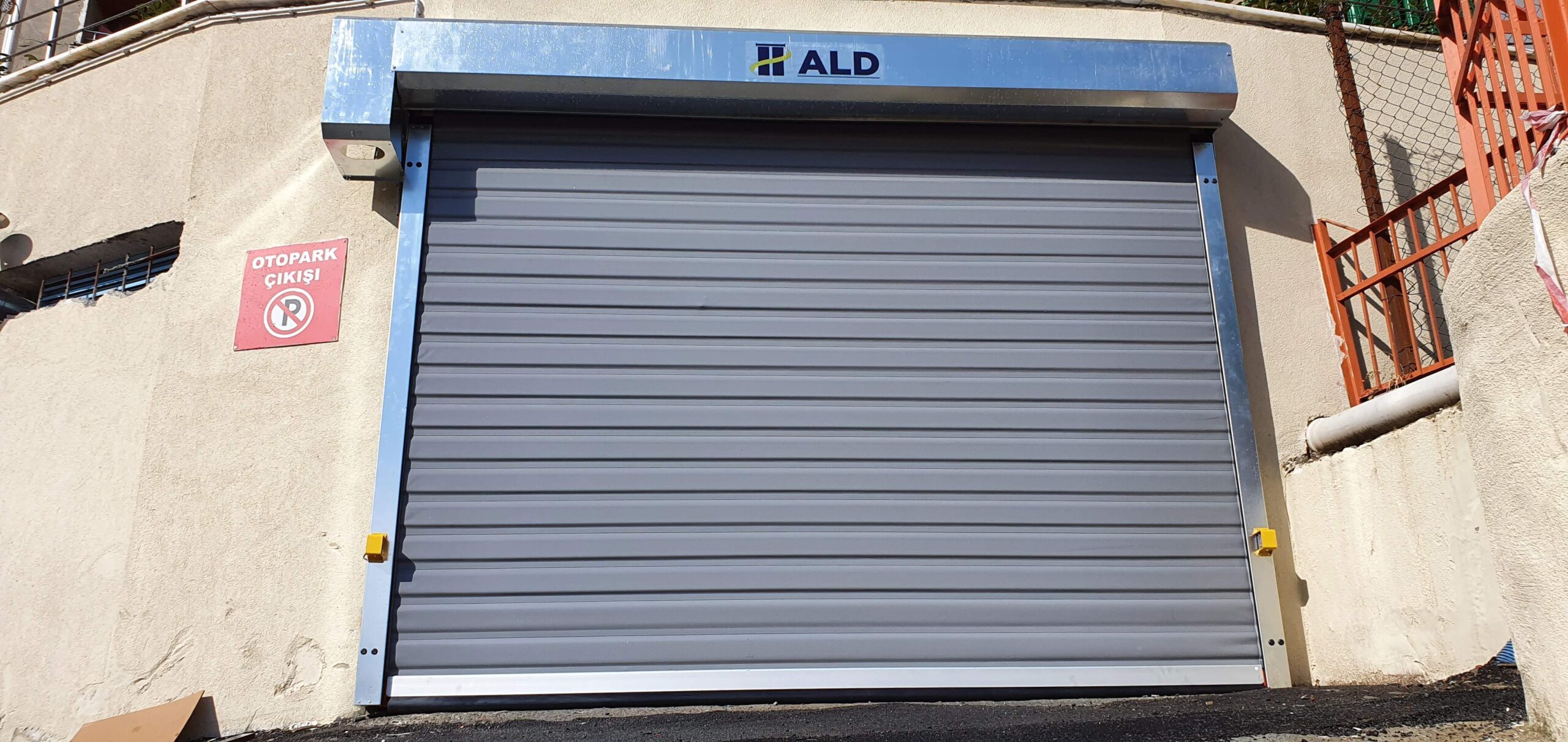

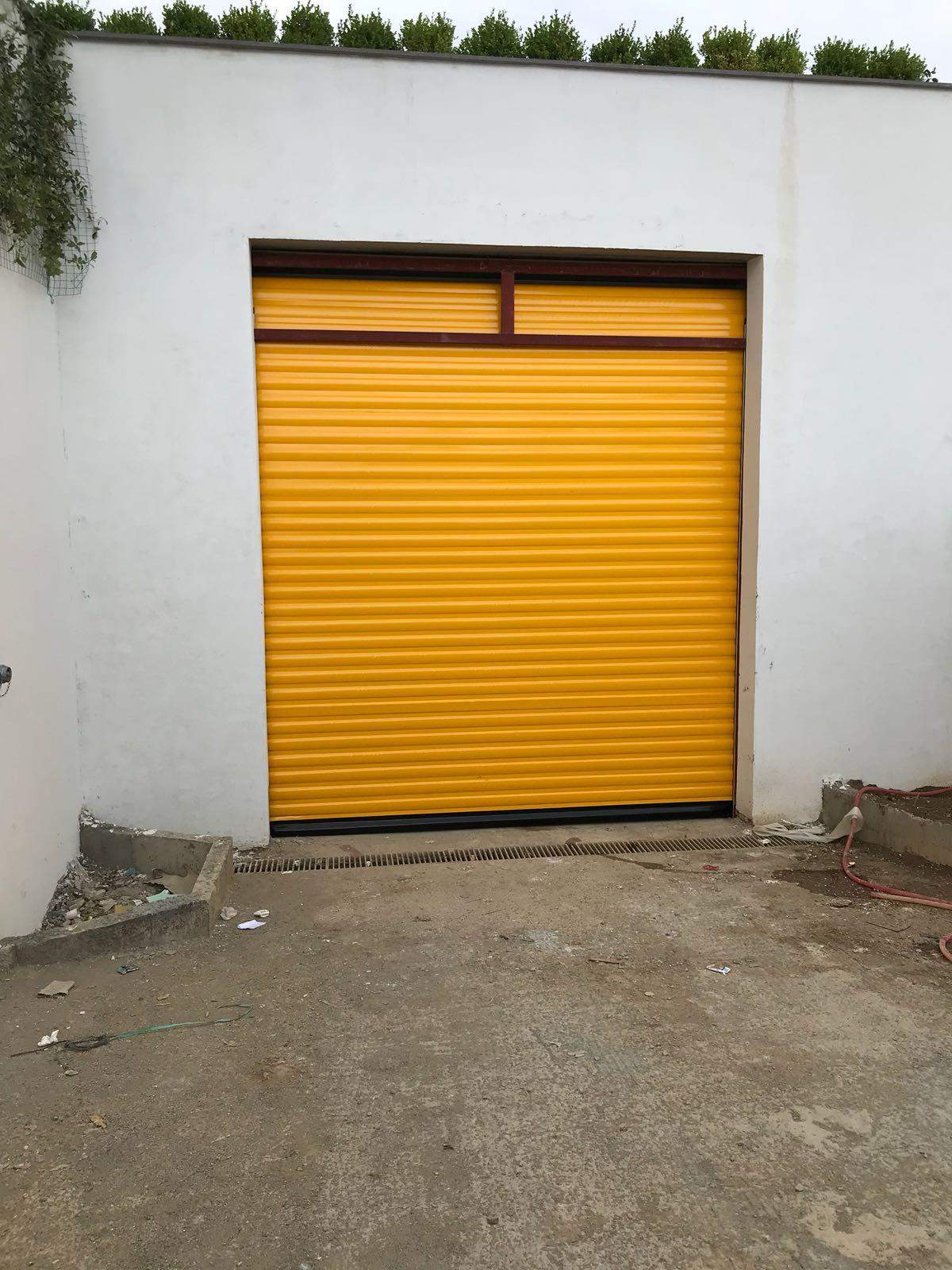

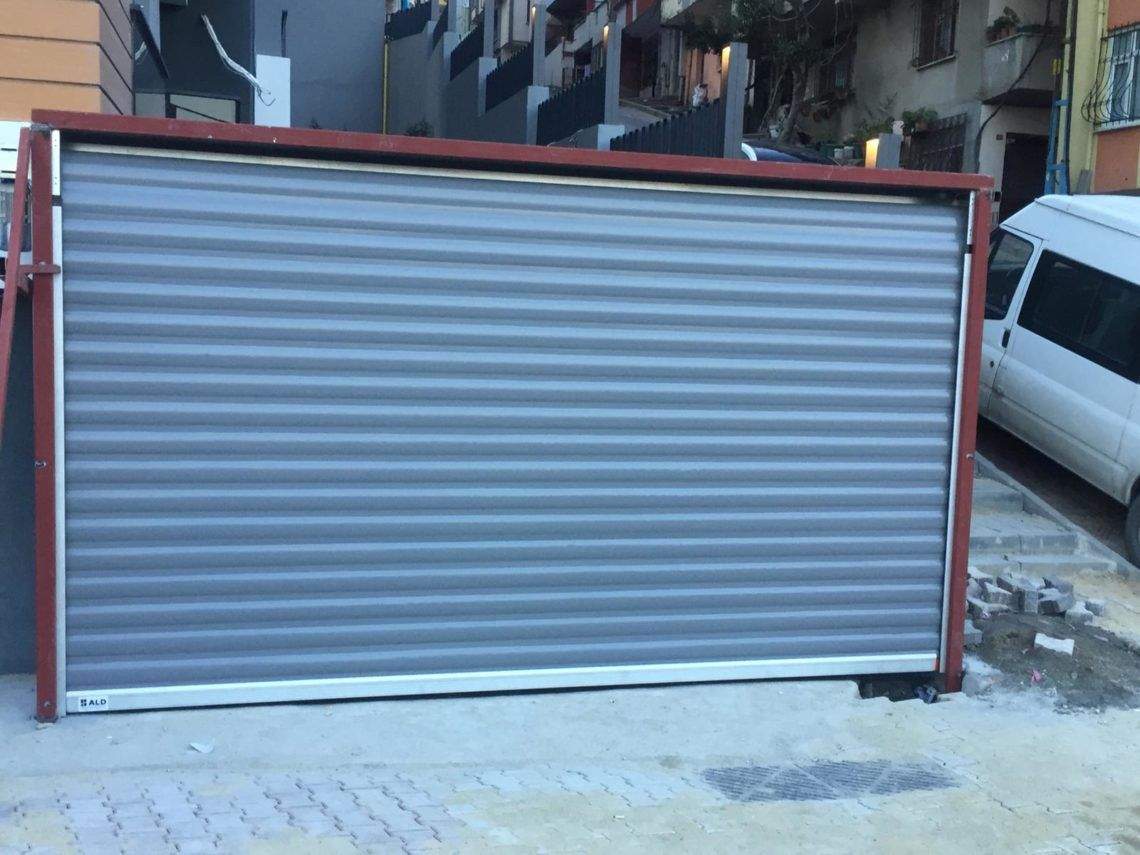

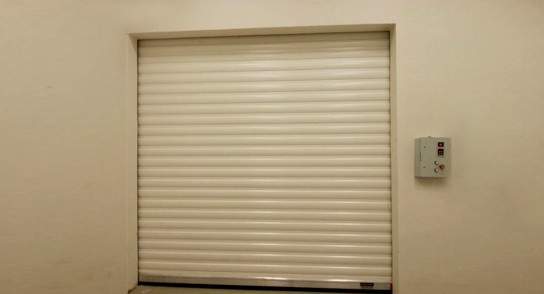

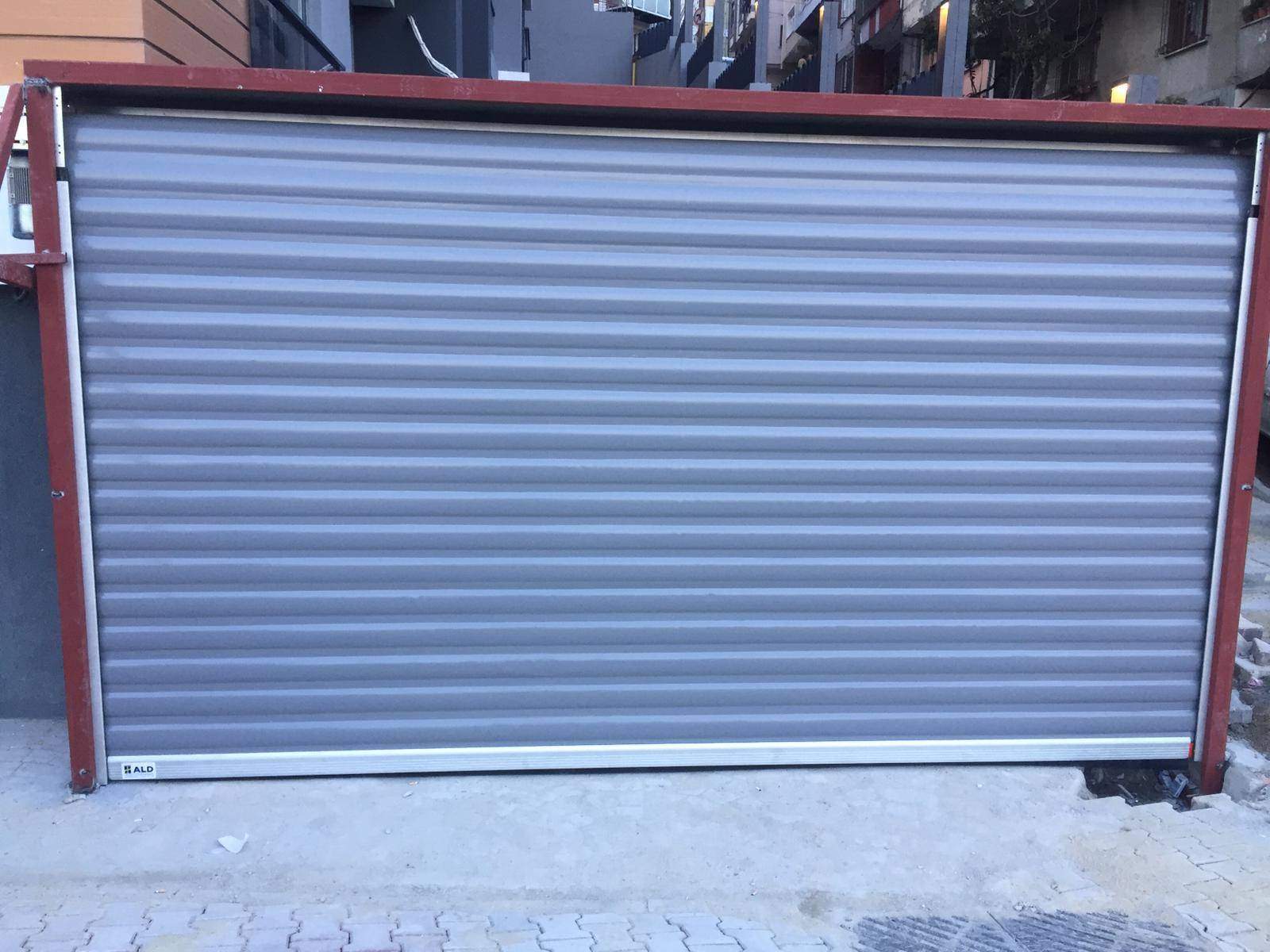

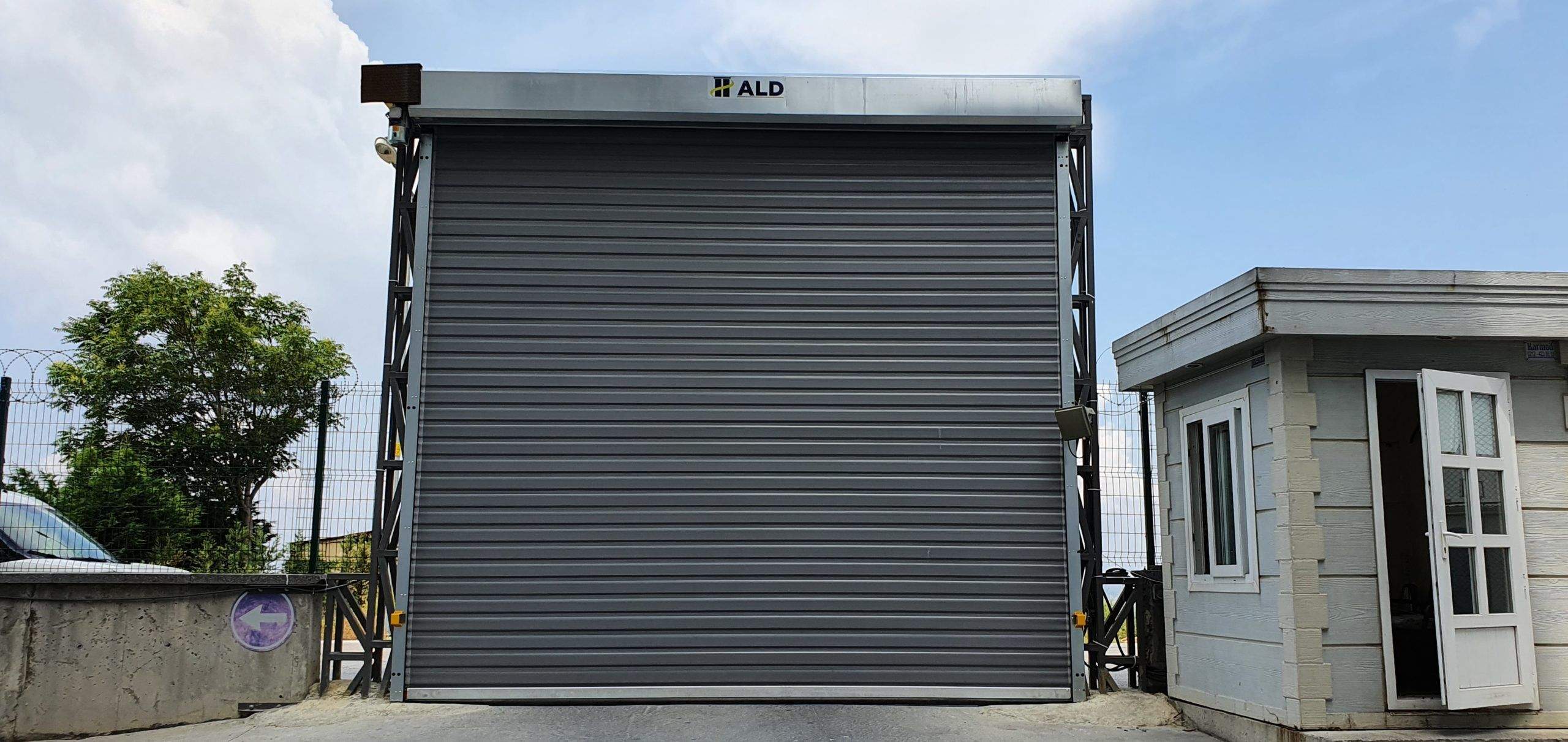

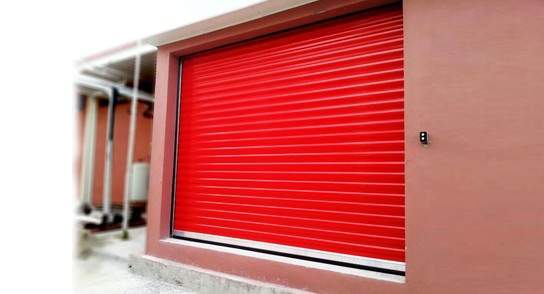

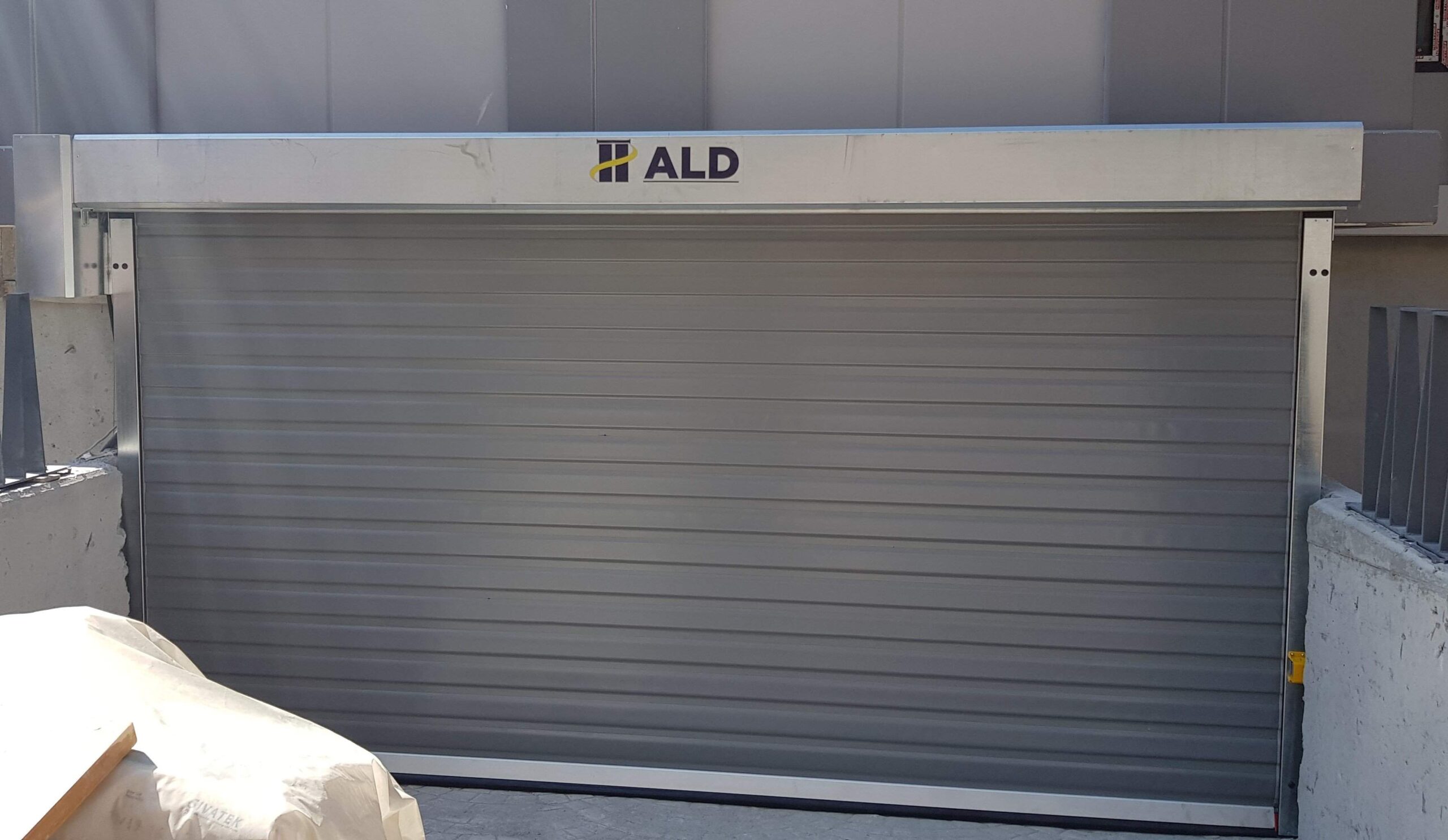

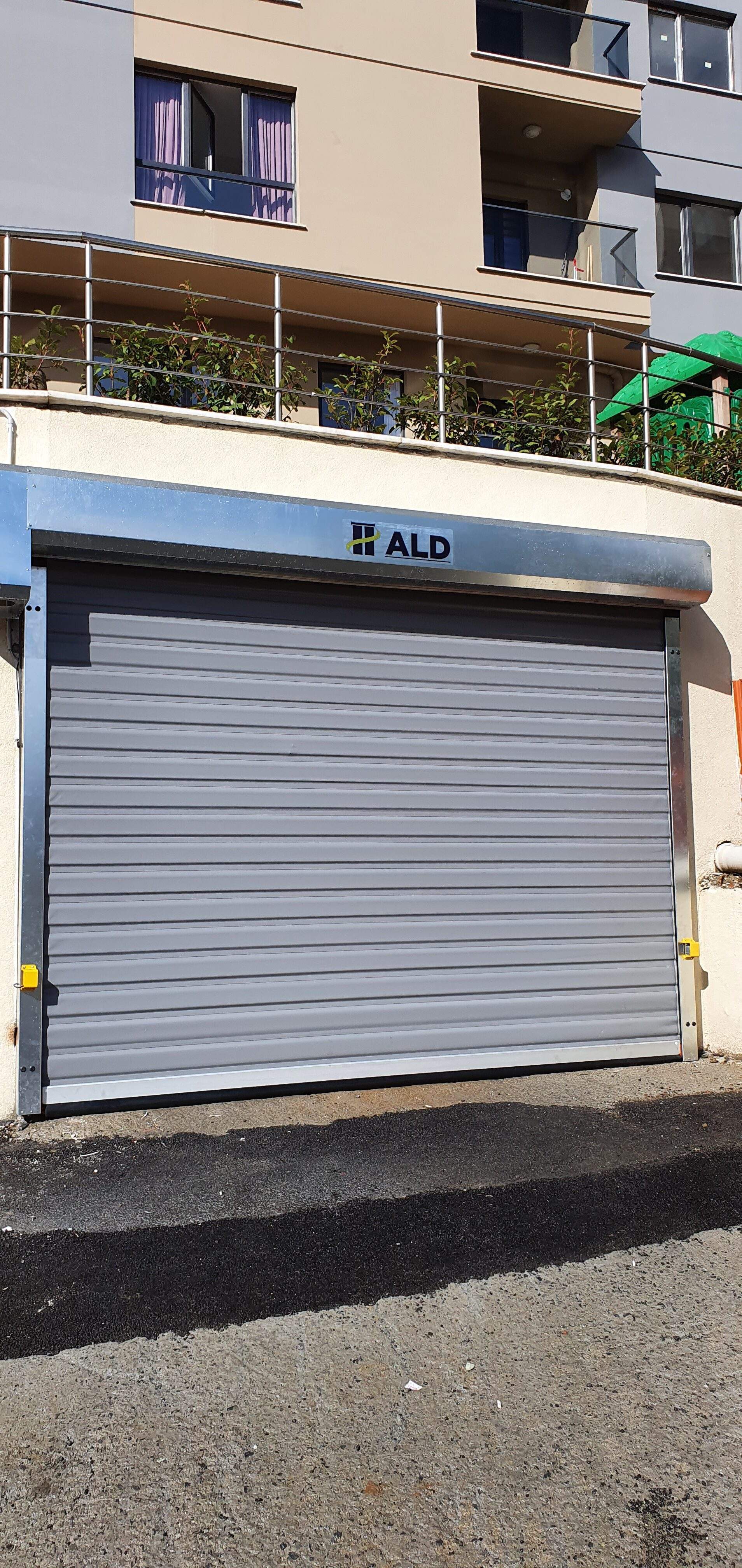

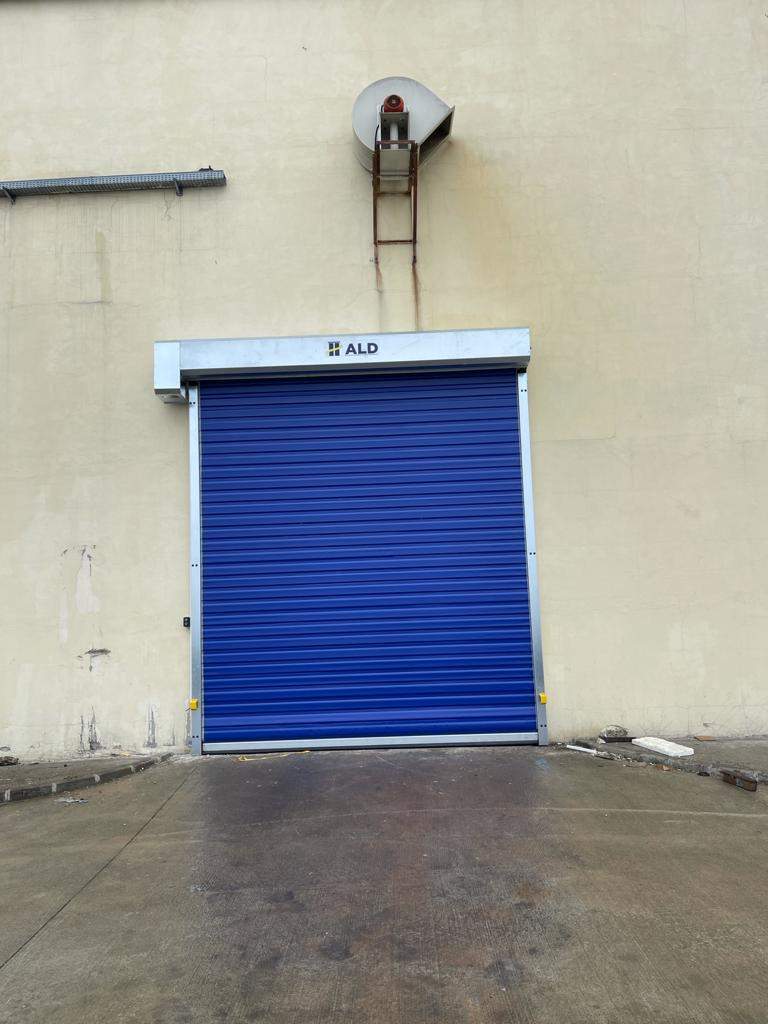

HIGH SPEED GARAGE DOOR

Speed Garage Door,

The High Speed Garage Door which is prepared by placing aluminum extrusion or steel polyurethane materials into double-layer tarpaulin, is used as the transportation ramp gate of factories with its garage door, elevator door and density.

The aluminum guides with black bottom base provide a harmonious and elegant appearance in all canvas colors.

Are you constantly having trouble with your automatic garage door? Is it constantly malfunctioning due to intensive work? Speed spiral garage doors are exactly what you're looking for. It has the ability to operate without stopping the limit of the number of vehicles departing.

Industrial engine and speed drive system to work at high speed while maintaining maximum mechanical fatigue. It is designed to meet the maximum traffic requirements with its speed of opening up to 1 m / min.

The flexible PVC tarpaulin conveyor with reinforced fabric provides both durable and long-lasting performance with its curtain prepared by placing aluminum lamellae.

In garage lifts and freight elevators, they offer the perfect solution for all spaces where a high number of opening and closing traffic is required.



Speed Garage Door Technical Specifications:

* Frequent opening and closing

* Frequency converter with deceleration in take-off and stop
control unit

* Manual opening in power failure

* High quality PVC tarpaulin

* Weldless, one-piece, steel side rails

* PVC bonding with high frequency welding

* Transparent surveillance window

* Radar, metal mass detector, remote control, ip switch,
integrated operation with card or encrypted access systems.

* Auto power off

* Safety photocell

* Knowing the OGS and HGS systems.

Optional Features

• Inverter

• Interlock communication between doors

• Drawstring Switch System

• Engine Cover

• Manual lever

• Manual lock

• Extra strengthening for high wind loads

• Painted or stainless metal parts


Speed Garage Door Usage Areas

• All kinds of interior and exterior doors

• Machine protection door

• Front door of conveyor

• Robot cab door

• It can be used as a gateway for Pharmaceutical and Food Industry.

Speed Standart Speed 1 m/s
Opening Speed ( Max.) 1 m/s
Closing Speed ( Max.) 0,40 m/s
Wind Resistance 60 km/h
Fabric Mehlar, Sioline, Heytex 900 gr / m2
Fabric Thickness 10 mm
Transparent Fabric Thickness Optional
Emergency Opening Manuel Crank - Standart

UPS - Optional

Metal Parts Drum & Wind profiles Aluminium Side Guides & Hood Cover Galvanize.
Operator & Control Unit High Speed Door Motor 0,75 - 2,2 KW
Gear Box Polat 80 TIP
Brake ( Temporiti Italy )
DH14 - High Speed Door Control Unit
With (ABB) Electronic Parts
Rovioly limit Switch
Pepperl fuch Photocell
