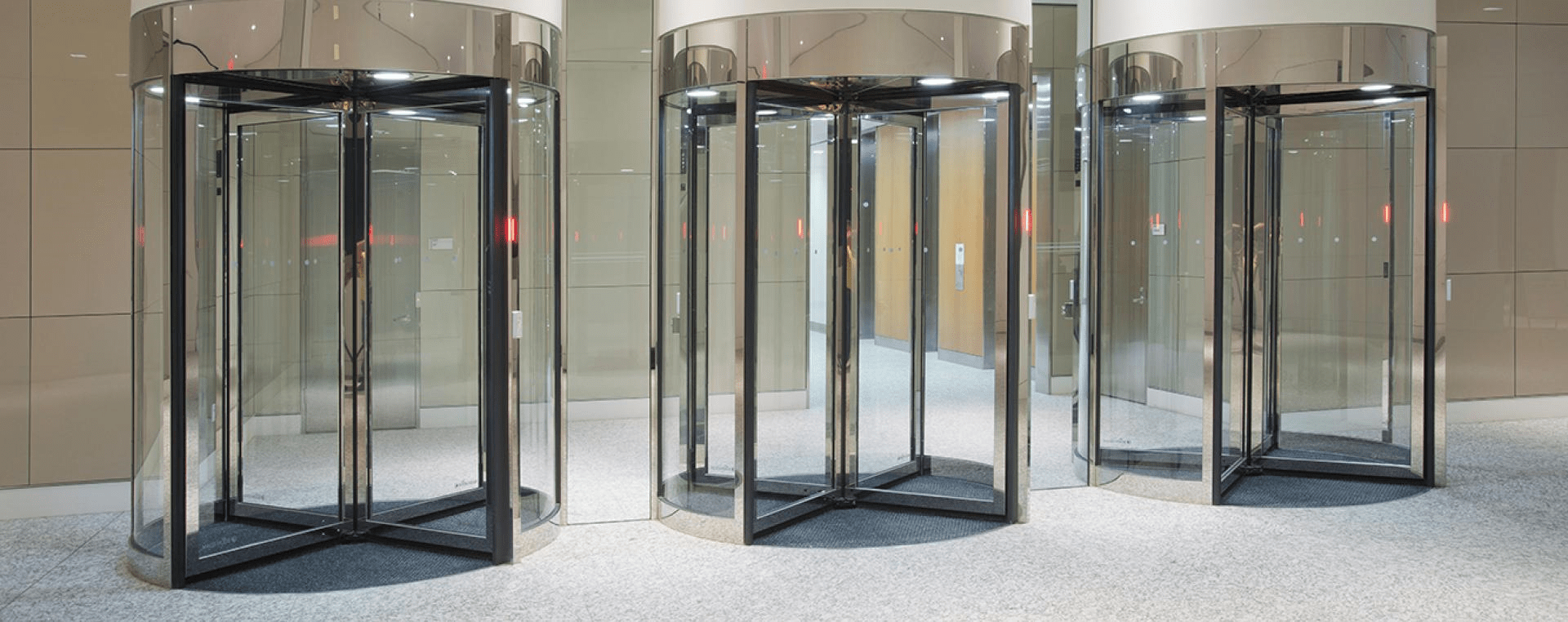

REVOLVING DOORS

Automatic Revolving Door; It is one of the most important products that affect the prestige and use of an architectural structure in terms of functionality and aesthetics. They can be manufactured from aluminum or stainless material. They provide safety as well as visuality with their boomed laminated glass.

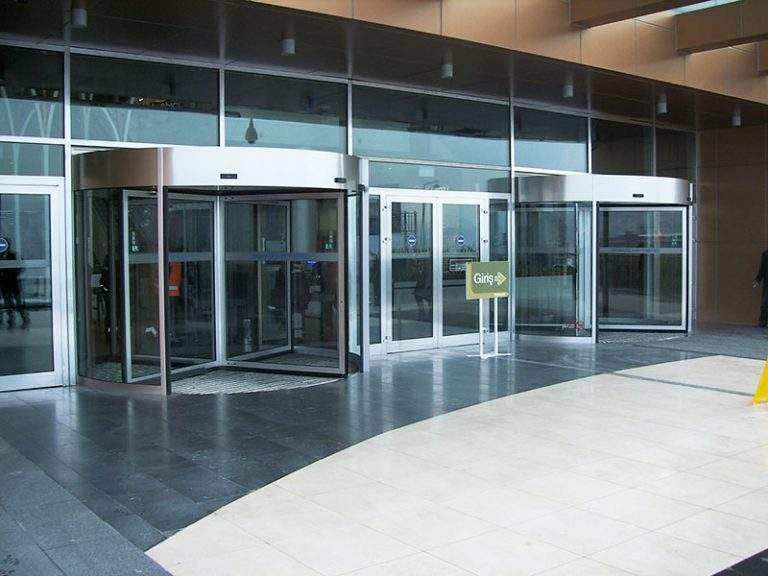

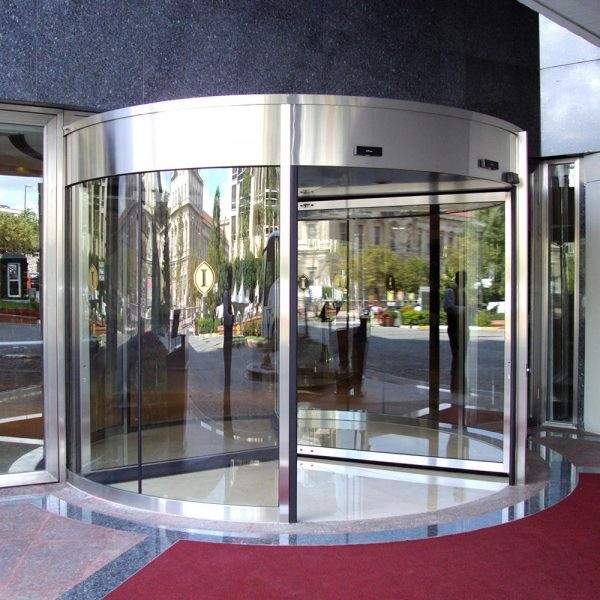

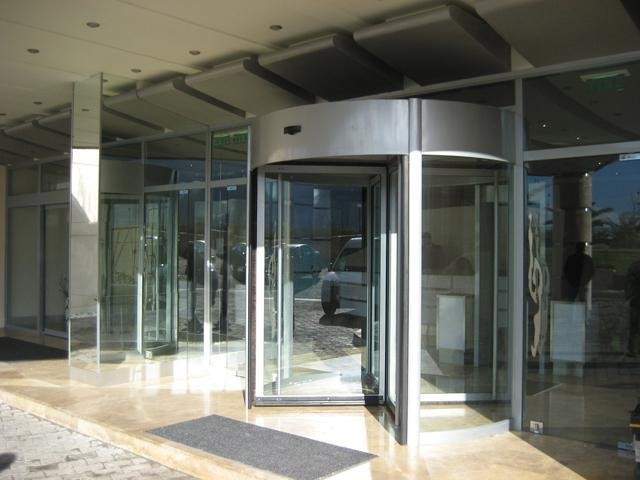

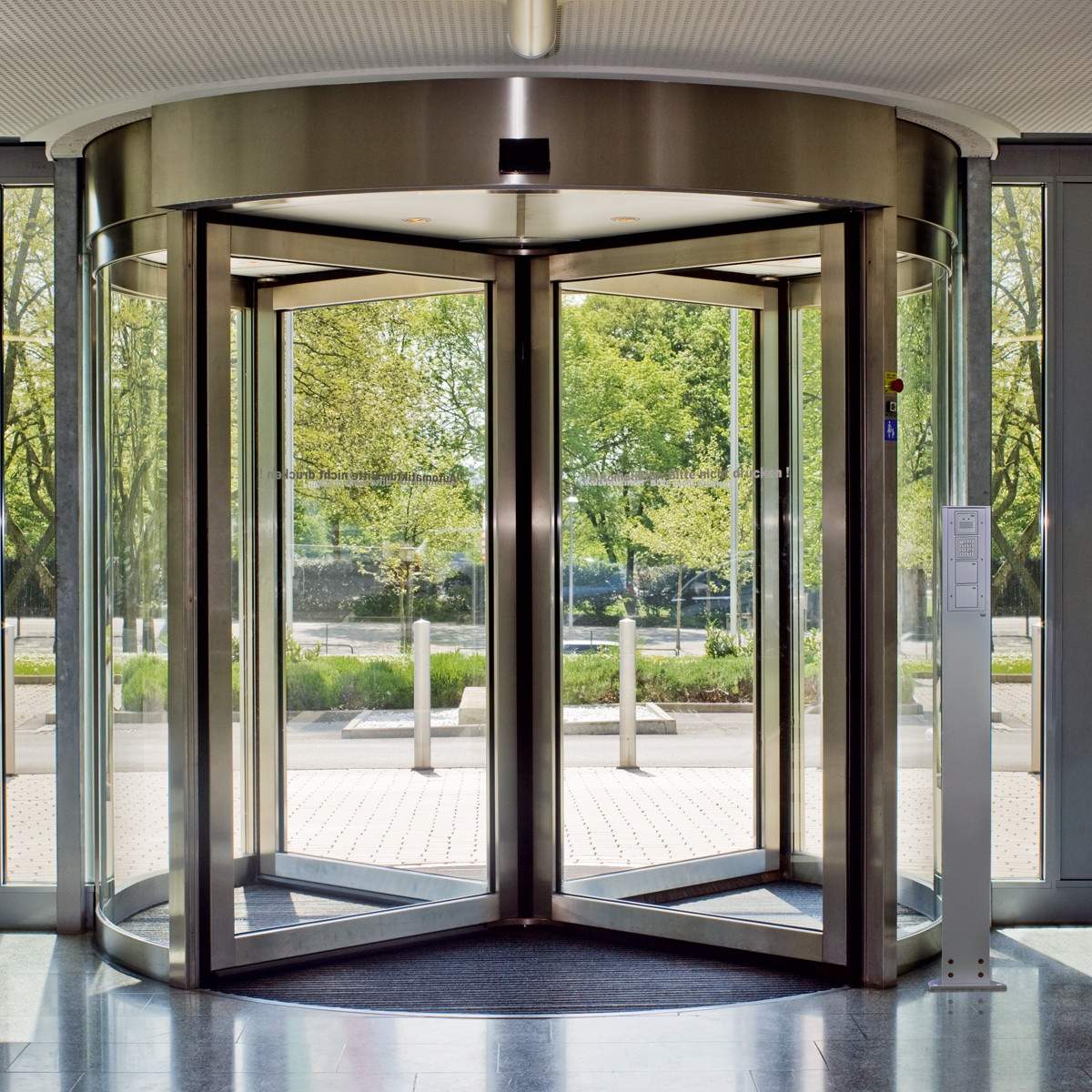

Automatic revolving door, unlike manual revolving doors, is the most useful product that is rotated by a motor mechanism thanks to the radars located at the entrances and exits and is equipped with smart security systems, providing energy saving as well as safety in human passages.

Revolving doors, which can be manufactured with 3 and 4 wings up to 4 m radii, provide maximum insulation in buildings.

They have many standard features such as automatic revolving door heel sensor, emergency stop and disabled pass mode.

Vertical and horizontal jamming sensors, manual operation in case of power cuts, fully opening and folding of the wings in case of panic in the revolving door, the ability to drive without stopping even when the door leaf is forced by pushing, half-speed rotation that facilitates the passage of disabled people, etc. With its many new features, ALD Automatic Revolving Door provides the opportunity to enter smoothly. The latest technological products in European standards are used in ALD Automatic Door Systems and the possibility of failure of revolving doors is minimized thanks to this operating system. As long as automatic revolving doors are regularly maintained, they can work for many years without any problems. At the same time, service and maintenance costs are economical.

REVOLVING DOOR MECHANISM TECHNICAL SPECIFICATIONS

Motor power:0,25 KW 50 Hz
Motor ve Reducer:Italyan BONFIGLIOLI
System Certificates:ISO, TUV ve CE
Protection Class:IP 54
Noise Level Class:Class A (less than 70 db)
Operating temperature range:The system operates between -20 ◦C and +60 ◦C.
Door control system:The revolving door in the standby state starts to work with the approach of the user. set time
At the end it stops at the initial ( X ) position.
Number of Wings3 or 4
Wing windows8.76 mm transparent laminated (ŞİŞECAM)
side wall windows8.76 mm transparent laminated (ŞİŞECAM)
Profile colorIt is produced in Natural Matte Anodized or desired RAL color.
Wind insulation on the wingsHorsehair natural brushes are used on the wings.
Canopy interior ceiling:The ceiling should be covered with diamond patterned aluminum sheets.
Lighting:There are led lighting lamps with a stainless frame. These lamps are on-off
It can be turned on and off at any time by means of the key.
Lower center carrier bearing system.:TIMKEN USA tapered bearing
Upper mechanism bearing system:The magnetic night lock is set to the “locked / closed” position and the door is locked automatically.

REVOLVING  DOOR Program Options

Normal operating position:It is the position where the door works when entering and exiting from both directions.
Elderly/Disabled/Infirm location:Elderly and handicapped position, when the button on both sides of the door is pressed, the door is adjusted.
Rotates at slow speed and then automatically switches to normal operating speed.
Manual location:If desired, the door can be used by manually turning it into the manual position.
Night lock position:The door is locked at night and locked electromechanically.
Continuous rotation position:The door rotates continuously at the determined speed when requested.

REVOLVING DOOR STANDARD SAFETY SYSTEMS

Column safety pneumatic bands:Germany ASO SAFETY SOLUTIONS; Hand-finger jamming between the side wall and the rotating blades.
Finger jamming sensors are placed inside the sidewall tires to prevent
By means of these sensors, the door stops immediately and only if the contact with the sensors is completely
After it is cut off, it becomes active and starts to rotate.
Heel safety pneumatic bands:Thanks to the safety bands under the wings, the wings hit the heel
In case of an emergency, the door stops immediately and becomes active after the contact is completely cut off.
it’s starting to turn.
Emergency stop button:The emergency closing module stops the door and manually adjusts the door leaves.
allows it to move to the rotatable position. (1 piece)
Elderly – Disabled button:For the elderly and disabled people, the door rotates at a slow speed and provides passage. (2 pcs)
Dynamic Pressure Control:When the door wings detect a certain force of compression while moving, it reduces the thrust of the wings by reducing the engine power.

In power cuts:

The system allows the door to be used manually, without the need to take any action. It is designed to pass through.



Manual Revolving Door

Manual revolving doors; It is the most economical solution that can provide energy saving and prestige at building entrances. It cuts off the indoor and outdoor connection of your buildings and prevents hot and cold air from coming into contact with each other. It ensures that the indoor environment is always cool or warm. In addition, the use of an electrical energy; does not require an air curtain. If the mechanism used in the manual revolving door is regularly maintained, it is suitable for use for many years and the probability of failure is very low. One of the most important features of manual doors is that they can be turned into automatic revolving doors when desired. In this process, which is done in a very short time, your door becomes ready for automatic use with a system that can only be connected to the canopy part of the door.

MANUAL REVOLVING DOOR TECHNICAL SPECIFICATIONS

Model: Aluminum Manual Revolving Door
Transition Height: 2100 mm (possibility to increase up to 2500 mm)
Accessory: Depending on the number of wings of the door, band arm, d-arm or different arms that will be determined in accordance with the project and can be supplied separately can also be applied. Spotlight and transformer on the ceiling.
Locking System: Mechanical Locking
Optional: Break-Out System (folding feature of wings in case of panic) and manual night shield for external security can be applied. These connections are hidden with aluminum covers by using a special detail hiding system at the lower and upper points where the wings are connected to the middle pillar.
The brushes used in the wing are not synthetic, they are made of undeformed horsehair.
It provides high heat and sound insulation.
Certificates of conformity to standards are available.
