SELF-REPAIRING HIGH SPEED DOOR

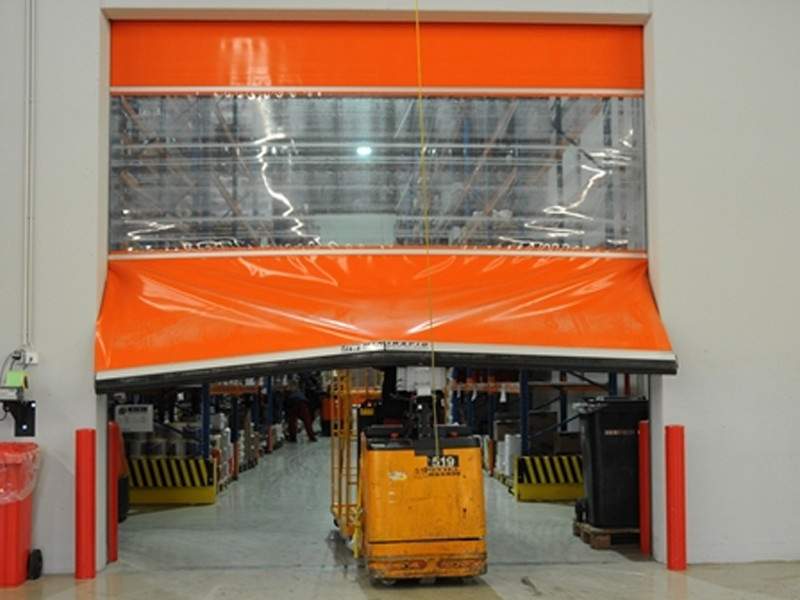

The door functions with a self-repairing system that is basically the release of all energy in case of any contact to the door, so the door stops and reverses automatically to avoid the risk of injury or damage. Because of its feature, the damage will be restricted to the canvas of the door, which is easier and inexpensive to repair.

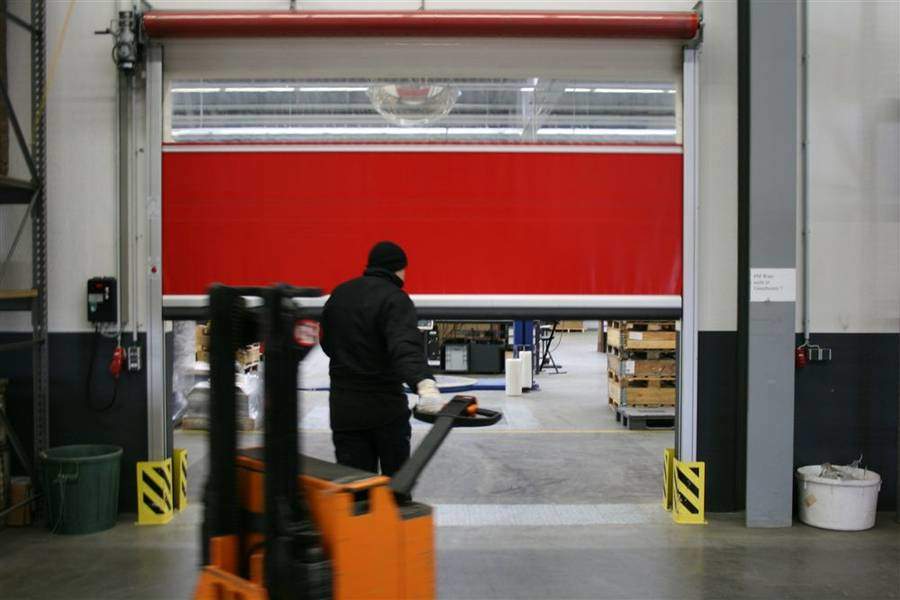

This door is ideal for indoor spaces, like warehouses or loading bays, where there is a higher chance of crashes.

Self-Repairing High Speed Door Main features

  • Air-tightness superior level.
  • High wind resistance.

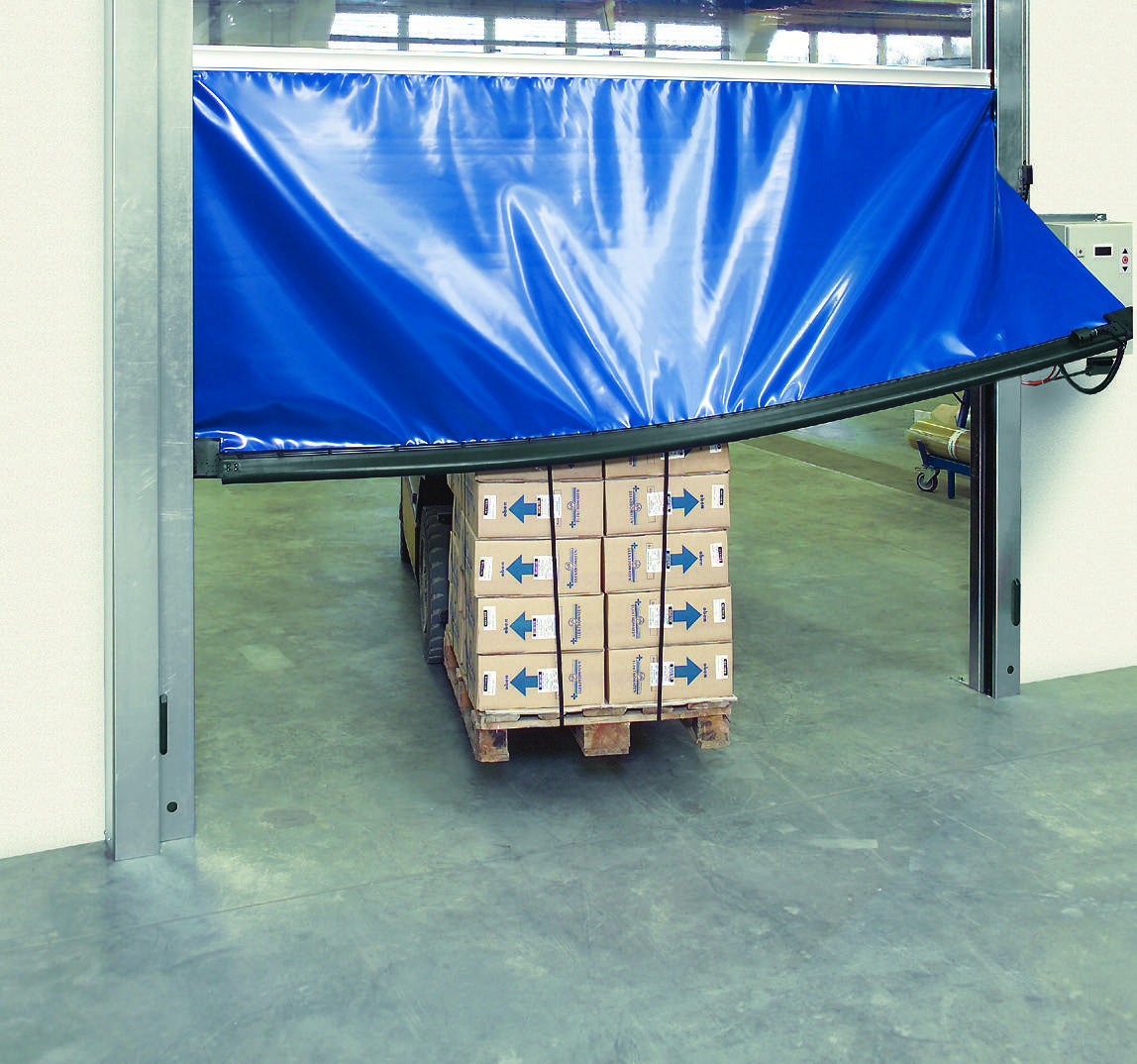

  • In the event of a collision, the curtain leaves the sliding guide to avoid its breakage. The curtain automatically reinserts itself when dislodged. Self-reinserting system without human intervention.
  • Steel plate metallic structure, available in lacquered RAL.
  • Aluminium roll-up shaft.
  • One-piece flexible curtain in high-resistance polyester. Finishes in a wide range of colours, including fully-personalised screen printing.

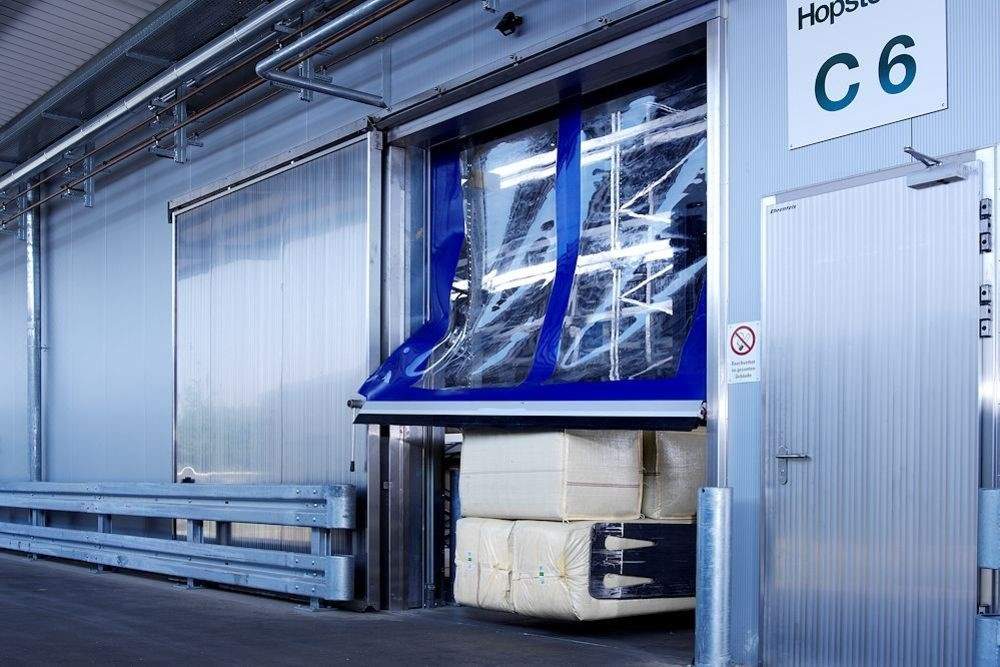

  • Option to include transparent vision panels

Technical Details

hız Speed Standard Speed ​​
Opening Speed ​​1,2 m/s
Closing Speed 0,40 m/s
rüzgar Resistance to Wind Load Tarpaulin filled 35 km/h
branda Pvc Mehlar, Sioline, Heytex (ithal) 900 gr / m2
Fabric Thickness
Transparent Fabric Thickness
1 mm
2 mm
acil açma Emergency Trip Manual operating handle
Optional: Automatic door opening function via UPS against power failure via uninterruptible power supply
metal aksam Metal Parts The winding box and flag are 1311 quality galvanized steel. Drum and guides are aluminum.
otomasyon Automation Fast Engine Set 0,75 - 2,2 KW
Brake (Enarc ENR 02 ) 80 -90 - 100 TIP
Switchgears ABB
HD99 DOOR CONTROL PLC
Special ALD Switch System 35-50 Type
Pepperl fuchs safety photocell
